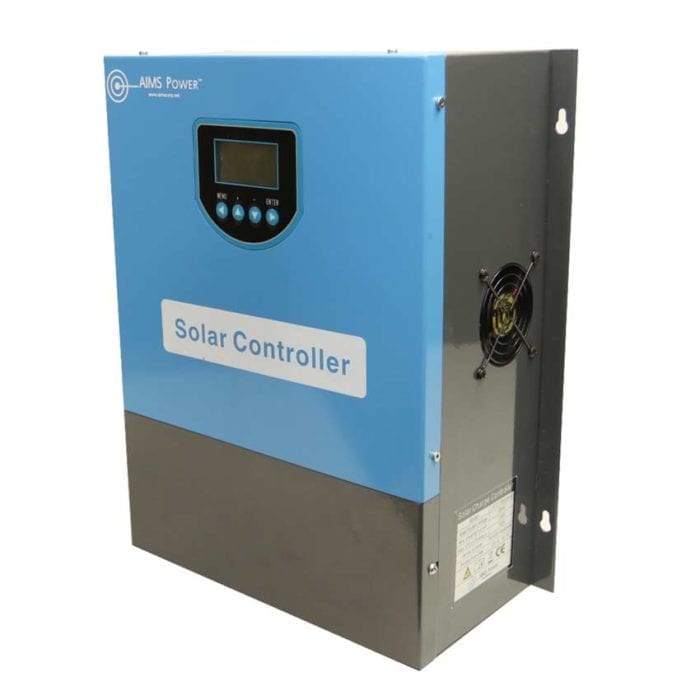

100 AMP SOLAR CHARGE CONTROLLER PWM FOR 384VDC INVERTER ONLY

$2,517.00

div#bread_checkout_button { background: #000; padding: 13px; background: #1c8195; border-radius: 24px; text-align: center; }


SKU: SCC100A384V Categories: ,

Overview

The AIMS Power 100 amp charge controller uses advanced digital control technology, includes a LCD display and fully automatic operation. The controller uses an efficient PWM (Pulse Width Modulation)  and provides three charging stages and improves battery storage and charging efficiency. This charge controller can also be connected in parallel for multiple units if needed.

Features

  • Advanced digital control technology
  • LCD display – 3″
  • PWM technology
  • Pre drilled holes for easy mounting
  • Temperature compensation functions for battery type
  • RS-485 communication port – Modbus separate
  • 3 stage charging
  • Works with 384 V inverter only

Description

Voltage: 384V

Max VOC of PV arrays: 700V

Max charging current: 100A

Inputs: 1 group

Equalize charging point: 460.8V

Float charging point: 441.6V

Over voltage: 512V

Over voltage recovery: 480V

Equalize charging recovery: 422.4V

Stand-by consumption: <.5 Watt

Terminal type: TC series barrier terminal

Humidity: 0-98%, non-condensing

Environment temperature: -13 F to 131 F

Elevation: < 4000M, may have reduced power higher than 4000M

Protection level: IP32

Noise: <30dBA

Dimensions: 16.5″ x 13.6″ x 6.2″

Weight: 26.5



Additional information

Weight 64 lbs
Dimensions 16.5 × 13.6 × 6.2 in
