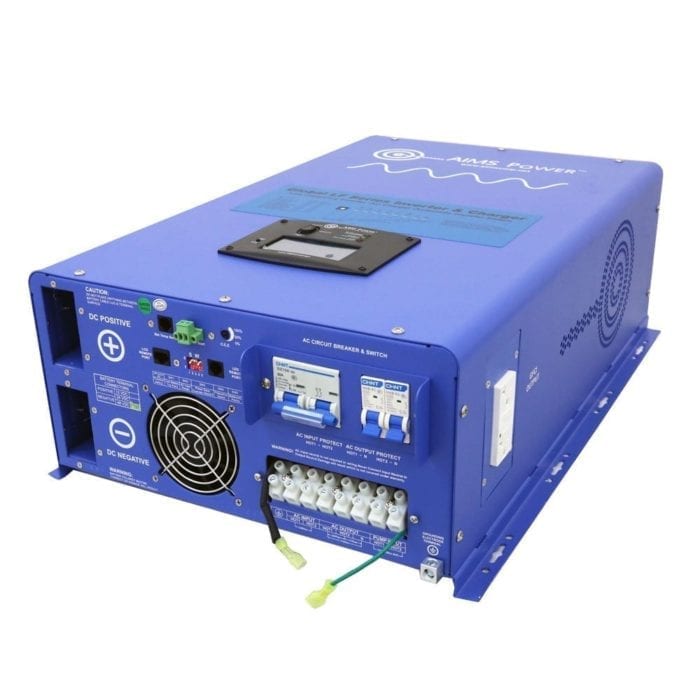

10,000 WATT PURE SINE INVERTER CHARGER 48Vdc / 240Vac INPUT TO 120/240 Vac SPLIT PHASE OUTPUT

$3,419.00

Add Remote

Add Cables

Add Fuse Kit

Add Battery Temperature Sensor

Pay Over Time


Overview

Built with a 48 volt DC input, this inverter performs with very little power loss. Users receive a notable increase in efficiency in large systems when compared to using inverters that accept 12 or 24 volts. This can be an attractive feature for sustainability lovers looking to live as efficiently as possible.

The most common use for this inverter is emergency backup power for residences, businesses and large off grid applications. You’ll always be prepared for the next power outage with access to 10,000 watts of continuous power and 30,000 watts of surge (for up to 20 seconds). The auto-generator start port is also a great feature for emergency backup power, as it will automatically kick on your generator when it senses your battery bank getting low.

However, we recommend recharging your battery bank with AIMS Power solar panels — a cleaner form of power.

One of the most sought-after features this inverter has is the direct-connect terminal block, which allows users to surpass the 10,000 watt capacity and harness its 300% surge power (up to 30,000 watts for 20 seconds as previously noted).

Have a hunting cabin or off-grid vacation home? This AIMS Power inverter is perfect for supplying reliable electricity to the entire house.

This inverter is also built to withstand reasonable heat and temperature fluctuations because of its over-temperature protection and dual thermally-controlled fans.  And it’s protected from humidity or airborne dust and dirt by virtue of its marine-coated (or “conformal-coated”) boards. This inverter provides the reliability needed in any business or residential emergency backup power applications.

This inverter is split-phase and will output 120 or 220/230/240Vac, and it can output 50 or 60Hz via the SW4 dipswitch on the DC side of the product. This means that this inverter works internationally and is operable with nearly any electrical system on the planet.

Features

Features:

  • 10,000 watt low frequency inverter 110/220 VAC split phase
  • 30,000 watt surge for 20 seconds -3x surge capability
  • Battery priority selector
  • Terminal block
  • Marine coated and protected
  • Multi stage smart charger 100 Amp
  • Remote panel available
  • 10msec typical transfer time
  • Optional 25W power save mode
  • 8 battery charger settings

Download the manual

AIMS Power 10000 Watt 48 volt Inverter Charger 120/240vac – PICOGLF10KW48V240VS

Video

Description

Output Specifications:

  • Continuous output power: 10,000 Watt
  • Surge rating: 30,000 Watts (20 seconds)
  • Output waveform: pure sine/same as input (bypass mode)
  • 100-110-120Vac / 220-230-240 VAC
  • GFCI Outlet – 20A
  • Nominal efficiency: >88% (peak)
  • Line mode efficiency: >95%
  • Output frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
  • Typical transfer time: 10ms (max)
  • THD: < 10% DC

Input Specifications:

  • Nominal input voltage: 48.0 VDC
  • Low battery alarm: 42.0Vdc-44.0 VDC
  • Low battery trip: 40.0Vdc-42.0 VDC
  • High voltage alarm: 64.0 VDC
  • Low battery voltage restart: 42.0 VDC
  • Idle consumption: 150 watts
  • Power saver mode idle consumption: 35 watts

Charger Specifications:

  • Output voltage: depends on battery type
  • Charger rate: 100A

Dimensions:

  • Unit weight: 145.5 lbs.
  • Unit size L x W x H: 23.3 x 16.3 x 7.9 inches
  • Shipping weight: 190 lbs.
  • Shipping L x W x H: 30 x 21.25 x 15.25 inches

Download the manual

AIMS Power 10000 Watt 48 volt Inverter Charger 120/240vac – PICOGLF10KW48V240VS

Additional information

Weight 190 lbs
