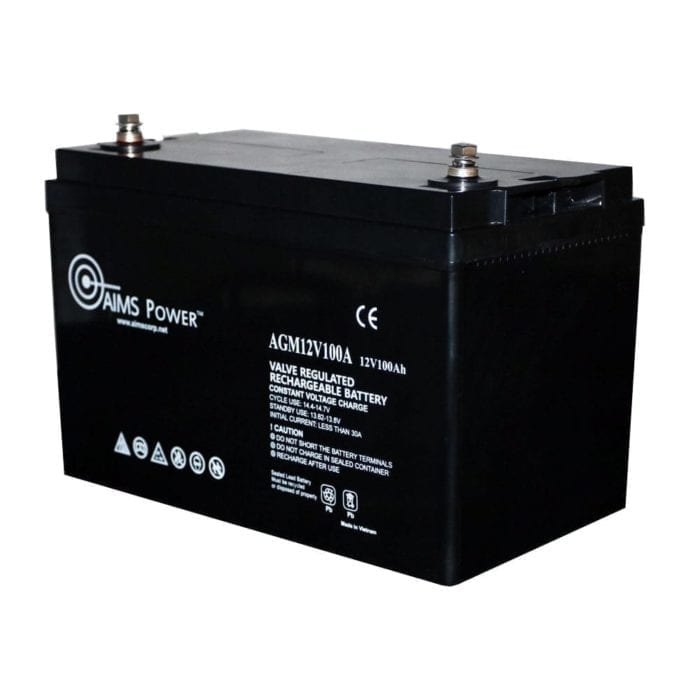

12 VOLT 100 AMPS AGM DEEP CYCLE MAINTENANCE FREE BATTERY HEAVY DUTY

$269.00 $224.00

12V, 100Ah, >500 charge/discharge cycles maintaining 50% depth of discharge, replaces 12V Gel & Lead batteries.  Ideal for back up power in RVs, boats, recreation vehicles and off grid back up power systems. Uses the same space as a your existing 12V battery. Made for extreme temperatures. Maintenance free.

Add Battery Volt Meter

Add Smart Battery Charger

Pay Over Time

SKU: AGM12V100AH Categories: ,

Overview

The AIMS Power AGM battery product line is heavy duty, deep cycle,  ideal for back-up power and stored power applications. Affordable without compromising quality, these batteries will provide power for years. This line of batteries is more heavy duty and provides  20% more charge/discharge cycles compared to other AGM batteries. The extra thick lead plates in this battery allow for a deeper discharge, providing more amp capacity, with less harm to the battery.  In general,  AGM batteries have less instant energy, but greater long-term energy delivery.   The dilute sulfuric acid electrolyte is absorbed by separators and plates, thus immobilized. Should the battery be accidentally overcharged producing hydrogen and oxygen, special one-way valves allow the gases to escape, avoiding excessive pressure build-up. Otherwise, the battery is completely sealed and is therefore, maintenance-free, leak-proof and usable in any position. Perfect for applications requiring large amounts of power.

Starting batteries, such as car batteries should not be used for deep cycle applications because of the thinner plates in these batteries. They are more prone to warping and pitting when discharged.

You can connect these batteries in series or parallel depending on DC voltage needed.

Features

Features:

  • Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to 99% and freedom from electrolyte maintenance or water adding -HEAVY DUTY
  • AGM is ideal for back up and stored power applications – 20% more charge/discharge cycles
  • Convenient carry handle
  • Not restricted for air transport complies with IATA/ICAO Special Provision A67
  • UL-recognized component
  • Can be mounted in any orientation
  • Computer designed lead calcium tin alloy grid for high power density
  • Long service life, float or cyclic applications
  • Maintenance-free operation
  • Low self discharge
  • Thick plates within the battery to limit fluid expansion during freezing
  • 5 year warranty

Description

Specifications: Free shipping on orders of 8 batteries or more.

  • Nominal voltage 12V
  • Number of cells: 6
  • Design life: 10 years (proper maintenance & use determines life)
  • Nominal capacity: 77 F(25 C)
  • 20 hour rate (10.0A 10.8V) 100Ah
  • 10 hour rate (17.6A 10.5V) 95Ah
  • 1 hour rate (64.8A 9.6V) 65.2Ah
  • Internal resistance
    • Fully charged battery: 77 F(25 C) 4.5mOhms
  • Low self-discharge
    • 3% of capacity declined per month at 20 C(average)
  • Operating temperature range:
    • discharge: -20~60 C
    • charge: -10~60 C
    • storage: -20~60 C
  • Max. discharge current 77 F(25 C) 900A(5s)
  • Short circuit current: 2100A
  • Charge methods: constant voltage
    • Charge: 77 F(25 C) cycle use 14.4-14.7V
  • Maximum charging current: 30A
  • Temperature compensation: -30mV/oC
  • Standby use: 13.6-13.8V
  • Dimension:s: 13L x 8.74H x 6.75W
  • Weight: 70lbs
  • 5 year warranty manufacturer defects

Product specifications: AIMS Power 12V 100amp AGM Battery

Additional information

Weight70 lbs
