$1,116.00 $966.00

Out of stock

Out of stock

SKU: PV120POLY6PACK Categories: ,


The AIMS Polycrystalline solar panels provide reliable and efficient solar energy. Backed by a 30 year warranty. The tempered glass covered PV Cells protects the panel from hazardous weather. The panel comes with a pre-drilled aluminum outer frame suitable for mounting in various ways. This panel is perfect for home installations, vehicle and RV installations as well as industrial applications. It can be used in parallel and series to suit your voltage needs. Buy multiple panels to power your whole house or reduce your power bill for off-grid or on-grid living.

This new model is more compact, more efficient and lighter weight than the previous model, giving you valuable space savings on the roof or whatever your mounting options are. These Solar Panels are tough and have a 12 year guarantee at 90% efficiency and a 30 year guarantee at 80% efficiency.

They are CEC, UL, and ETL certified and the panels have passed the most strenuous tests and are approved for use in any application. Mount them on your truck, boat, home, RV or more to get a cost reducing power solution wherever you need it.

The more you buy the more you save! The 265 Watt panels are made in the USA. 12% savings when you purchase multi packs. See product details.



  • Constructed high quality materials
  • High efficiency solar cells with high transmission and textured glass, deliver high efficiency solar modules
  • Bypass diode minimizes the power drop when shaded, tempered glass, EVA resin, and weatherproof film, plus aluminum frame extend the life span of the panel
  • Modules are independently tested to ensure conformance with certification and regulatory standards
  • Manufacturing facility certified to ISO 9001 quality management system standards
  • Panels capable of +/- 3% power efficiency than rated

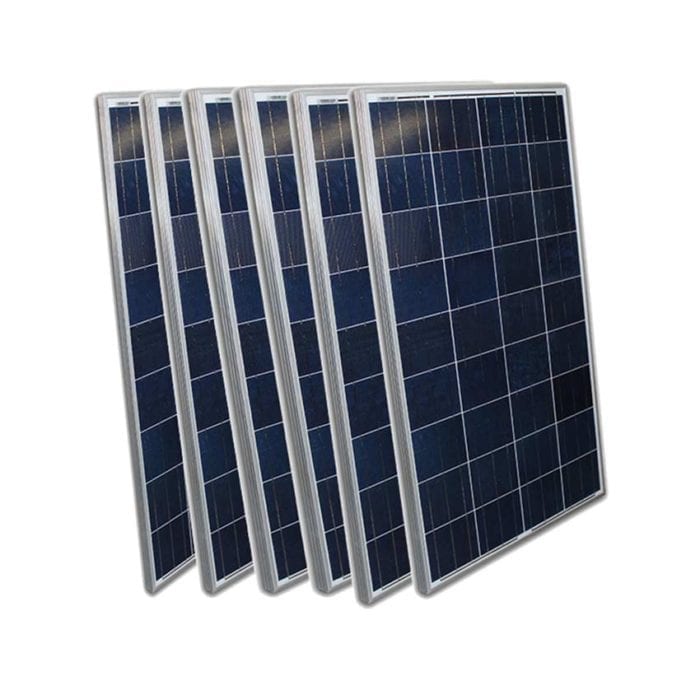

Specifications: 6 PACK OF 120 WATT SOLAR PANELS – CRATED

  • Maximum power (Watt): 120 watts
  • Optimum power voltage (Vmp): 17.6 volts
  • Optimum operating current (Imp): 6.82 amps
  • Open circuit voltage (Voc): 22.6 volts
  • Short circuit current (Isc): 7.26 amps
  • Solar cell: 156 * 129 Poly
  • Number of cells (pcs): 4*9
  • Front glass thickness (mm): 3.2 mm
  • Temperature coefficients of Isc (%) °C: +0.04
  • Temperature coefficients of Voc (%) °C: -0.38
  • Temperature coefficients of Pm (%) °C: -0.47
  • Temperature coefficients of Im (%) °C: +0.04
  • Temperature coefficients of Vm (%) °C: -0.38
  • Temperature range: -40°C to +85°C
  • Tolerance wattage (e.g. +/- 3%): +/- 3%
  • Surface maximum load capacity: 2400Pa
  • Allowable hail load: 23m/s, 7.53g
  • Bypass diode rating (A): 10
  • Cell efficiency (%): 13.69%
  • Module efficiency (%): 14.60%
  • Backing (brand Type): TPT
  • Warranty: 90% of 10 years, 80% of 30 years
  • Standard test conditions: AM1.5 1000W/? 25 +/-2°C
  • FF (%): 70-76%
  • Weight Per Panel (lbs): 20 lbs
  • Dimensions (inches): 44.5 x 26.5 x 1.2

Product specifications: click here

Additional information

Weight 170 lbs
Dimensions 50 × 30 × 15 in
