130 Watt Portable Foldable Solar Panel with Built-in Carrying Case Monocrystalline

$300.00

6 in stock

Includes 130 Watt panel only. Portable, folds up into built in carrying case. Use in multiple vehicles. No permanent mounting needed.

6 in stock

div#bread_checkout_button { background: #000; padding: 13px; background: #1c8195; border-radius: 24px; text-align: center; }


Add 10 amp Solar Charge Controller

SKU: PV130CASE Categories: , , ,

Overview

Featuring AIMS Power, foldable and portable solar panel, made with high quality monocrystalline solar cells and a water resistant rugged case.

This portable solar power panel quickly folds and unfolds into a compact carrying case for easy set-up and storage.

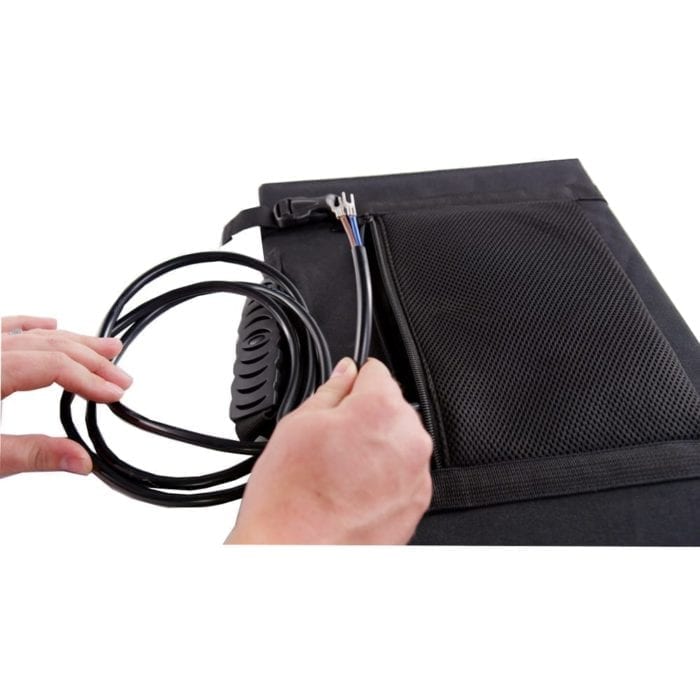

One the front of the carrying case, there is a zipper pocket to store a small charge controller. The foldable panel also includes a built in 6 foot charge controller wire allowing for quick connection to various size charge controllers.

The carrying case is water resistant, includes a comfortable rubber handle and secures using side release plastic buckles.

Backed by a 10 year warranty, this portable solar panel is a must for every remote application needing power. Easy to move between vehicles.



The 130 watt includes adjustable legs for optimal sun angle.

Features

  • Constructed with high quality material and advanced monocrystalline solar cells for efficient energy harvest
  • Built in solar charge controller cable 6ft
  • Ideal for curved and uneven surfaces. RVs, boats, bus, vans, utilities, golf carts, bikes and back packs
  • Portable and easily adjusts to the optimum sunlight angle
  • Accordion style fold up case
  • Weather resistant. Appropriate for outdoor use.
  • Durable and rugged case with convenient side zipper pocket to store wires and charge controller
  • Lightweight and super thin allowing for easy storage and set up
  • Bypass diode minimizes the power drop when shaded
  • Modules are independently tested to ensure conformance with certification and regulatory standards
  • Manufacturing facility certified to ISO 9001 quality management system standards
  • Panels capable of +/- 3% power efficiency than rated
  • 5 year warranty, 10 year 80% output

Video

Description

130 Watt Portable Foldable Solar Panel Monocrystalline

Specifications: 130 Watt Portable Foldable Solar Panel Monocrystalline

High Performance: light transmittance up to 93%
Cell Efficiency: 22.3% (one of the highest)
Module Efficiency: 19.2% (one of the highest)
Maximum Power: 130W
Tolerance Wattage (e.g. +/- 5%): +/- 5%
Maximum System Voltage: 600V DC (UL)
Max Power Voltage (Vmp): 22 V
Max Power Current (Imp): 5.91 A
Open-Circuit Voltage (Voc): 26.4 V
Short-Circuit Current (Isc): 6.35 A
Power Tolerance: 0=+3W
Maximum Fuse Rating: 10 A
Fire Safety Class: Class A
Temperature Range: -40⁰F to 185⁰F
Number of cells: 2 x 4 x 5
Charge controller PV Wire: 10 AWG with spade connect easily connects to various charge controllers
Temperature Coefficients ⁰C:
ISC(%): +2.6
Voc(%): -50.6
Prm(%): -.38
Im(%): +2.2
Vm(%): -60.8
Dimensions: Expanded 20.6 X 55.9 X 0.19 inches Folded 20.6 x 11 x 1 inches
Weight: 6.5 lbs
Certifications: CE, ETL, TUV and RoHS

Case:
Water resistant
Durable rubber handle
Easy side slide buckles
Convenient size zipper pocket for wires and charge controller storage

5 Year Warranty, 10 year 80% output

130 Watt Portable Foldable Solar Panel Monocrystalline

Please Call Us Today!

Manual click here
