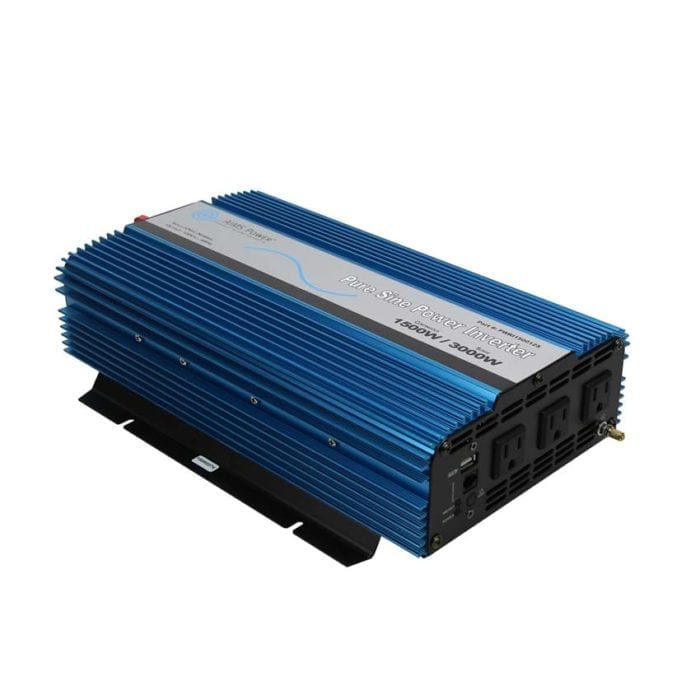

1500 WATT PURE SINE INVERTER 48 VDC TO 120 VAC

$329.00

div#bread_checkout_button { background: #000; padding: 13px; background: #1c8195; border-radius: 24px; text-align: center; }

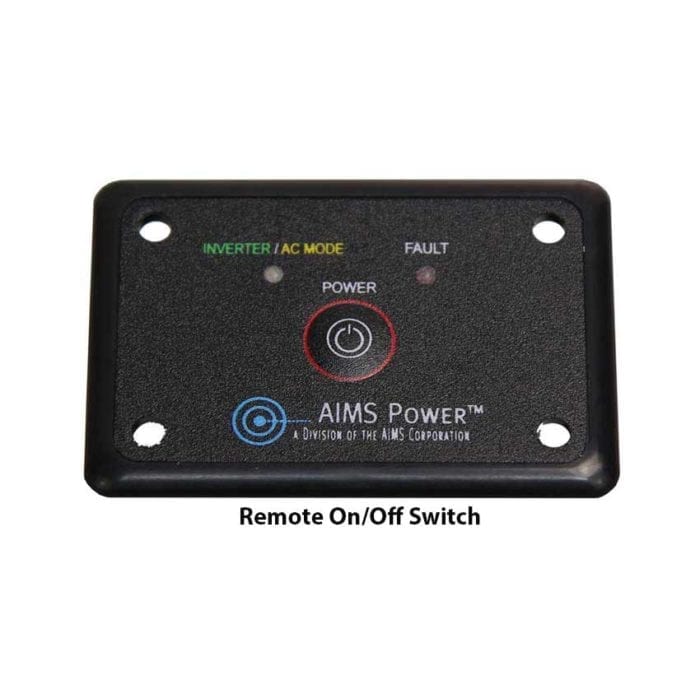

Add Remote

Add Cables

Add Fuse Kit

Add Battery Volt Meter

Overview

The AIMS 1500 watt pure sine power inverter 48VDC was designed to provide the most efficient power. Power inverters have become a staple in businesses and homes around the world due to intermittent brown and black-outs. AIMS Pure sine wave power inverters provide reliable transformation of DC power from a battery (such as the one in a car or RV) into AC power that can then be used to run lights, computers, printers, televisions, medical equipment* and a broad range of appliances. And when it comes to selecting an inverter, it’s helpful to know that AIMS pure sine qave inverters represent the most technologically advanced, lightweight, compact and diverse inverters on the market to help ensure the widest use of applications. For over a decade, the AIMS’ Power has consistently delivered the broadest range of sizes to accommodate virtually every power requirement.
Advantages of a pure sine inverter:
-Equipment runs more efficiently
-Motors run cooler
-Cleaner power
-Ideal for power tool chargers, laser printers, electric shavers, microwaves, variable speed motors, TV’s, medical equipment

To select the right inverter, first determine what devices you would need to run in the event of a power outage. Then, select the appropriate inverter that can carry the combined wattage requirements of these devices. Please see our tech support section for start up averages for all devices. At AIMS, you’ll discover our inverters range from 75 watts up to 50,000 watts – more than enough to power nearly every application imaginable

Features

Features:

  • 1500 Watt continuous power
  • 48 volt DC Input
  • Pure sine wave
  • USB Port
  • Triple AC receptacles
  • On/off switch
  • Over temperature indicator
  • Overload protection
  • Low battery voltage warning/shutdown
  • High input voltage protection with automatic shutdown
  • Over load indicator
  • Short circuit protection
  • Dual cooling fans thermally controlled
  • AC output short circuit protection
  • Instruction manual
  • Free 1 year tech support
  • 1 year warranty parts and labor

Video

Description

Specifications:

  • Continuous output power  1500 Watt
  • Surge power 3000 Watt
  • Input voltage range 38-62 volt
  • Output voltage 120 volt
  • DC input 48 volt
  • Output wave form pure sine wave 60Hz (THD ≤3%)\
  • Efficiency 90%
  • USB Output 5VDC, Max, 1 amp
  • Input over-voltage shutdown 62 ± 1VDC
  • Input under-voltage shutdown 38 ± 1VDC
  • Input under-voltage alarm 39.2 ± 1VDC
  • Over temperature protection 149 ± 8°F
  • Over-load protection 1700 Watt ± 200 Watt
  • No Load currents 0.5 amp
  • Working Temperature 32-104°F
  • Storage temperature 14-113°F
  • Intelligent cooling (the cooling fan will start running when the case temperature reaches 104°F)
  • Remote port for optional remote

Dimensions:

  • Unit weight: 9.90 lbs.
  • Unit size L x W x H: 15.88 x 8.38 x 3.88 inches
  • Shipping weight: 12 lbs.
  • Shipping size L x W x H: 18 x 12 x 6 inches

Product manual: click here

Additional information

Weight 12 lbs
