1980 WATT SOLAR WITH 6000 WATT PURE SINE POWER INVERTER CHARGER 120/240VAC 48VDC OFF GRID KIT

$9,769.00

1980 Watt Solar. 6000 Watt inverter charger provides 120 & 240 Vac power, 48Vdc. 400 amps of battery power and 60 amp charger controller. Ideal for large size devices such as appliances, fans, pumps, compressors, electronics up to 50 amps. Perfect for locations that need power for @4 hours, before recharging, running a full 6000 watts and also have access to a generator or shore power if available to recharge batteries using the inverter. Solar panels keep a charge on the batteries using sunlight and will recharge the batteries at 50% depletion in < 6 hours in full sun. EVERYTHING YOU NEED TO BE OFF GRID.

div#bread_checkout_button { background: #000; padding: 13px; background: #1c8195; border-radius: 24px; text-align: center; }


Use half the batteries, no memory problems, >8x more cycles and 1/2 the weight compared to other battery technologies.

SKU: KITB-6k48240 Category:

Description

1980 WATT SOLAR WITH 6000 WATT PURE SINE POWER INVERTER CHARGER 120/240VAC 48VDC OFF GRID SOLAR KIT

Specifications: 1650 WATT SOLAR 6000 WATT PURE SINE POWER INVERTER CHARGER 120/240VAC 48VDC

You can find the specifications for each product by clicking on the links below.

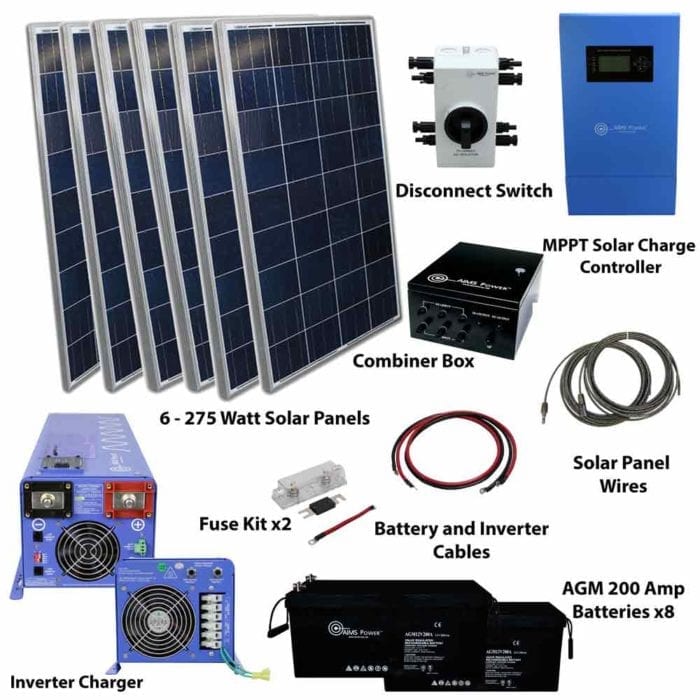

This solar kit includes:

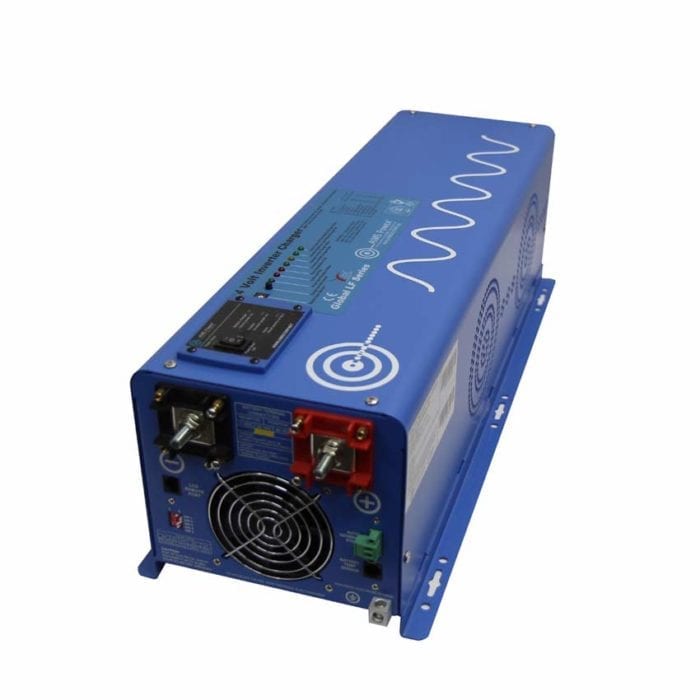

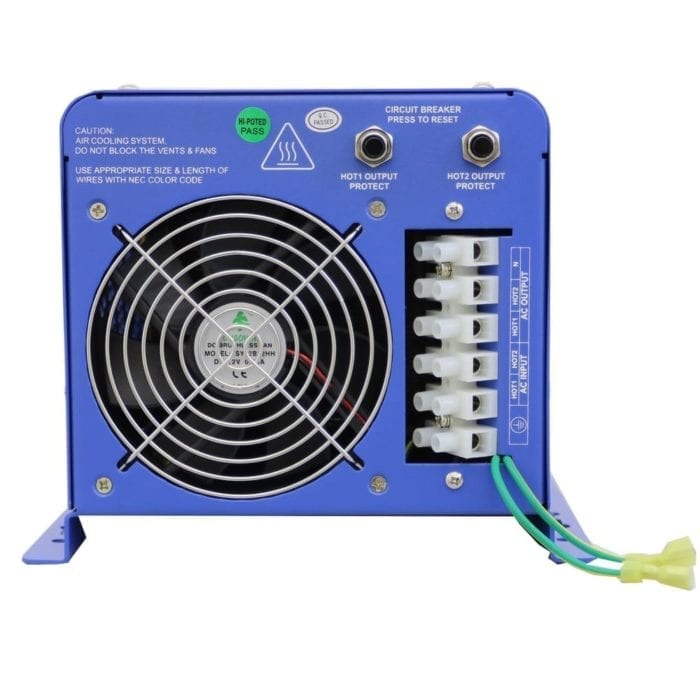

    • PICOGLF60W48V240VS – 6000 watt pure sine inverter charger- 48 volt more efficient, runs cooler

Click here for more inverter info

    • PV330MONO – qty 6 – 275 watt solar panel

Click here for more panel info

    • COM3IN60AO – Combiner Box 3 String

Click here for combiner box info

    • DC1600V32A2IO – Quick Disconnect Switch

Click here for disconnect switch info

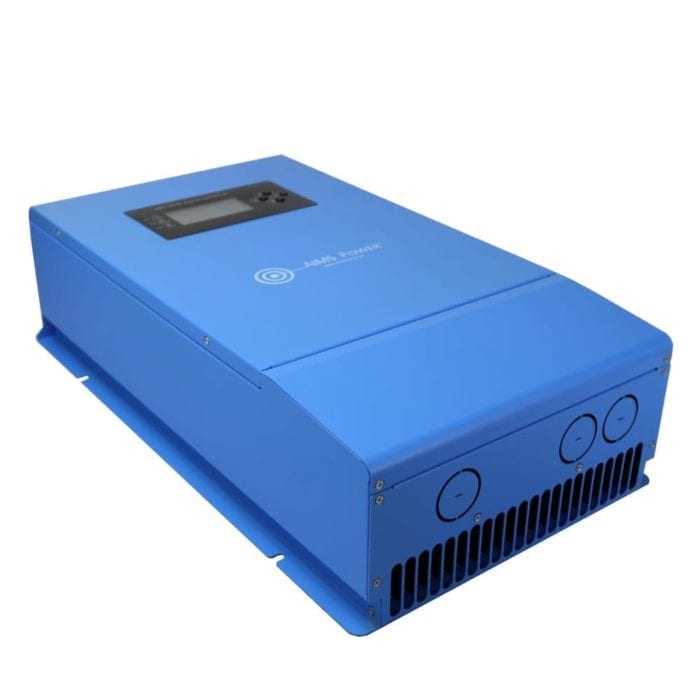

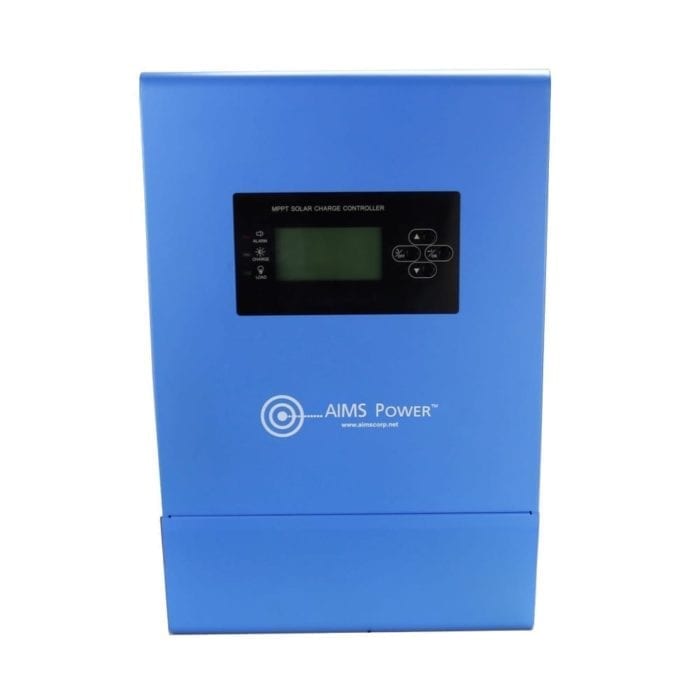

    • SCC60AMPPT – 60 amp MPPT solar charge controller

Click here for more controller info

    • AGM12V200A – qty 8 – 200 ah AGM deep cycle batteries

Click here for more battery info

  • PICOGLFBATS – qty 1 – battery temperature sensor
  • PVEXT20FT10AWG – PV female & male extension cables for solar array to combiner box and disconnect to solar charge controller
  • PVM100FT10AWG – 100 foot PV wire for solar panel (male) from combiner box to disconnect
  • PVF100FT10AWG – 100 foot PV wire for solar panel (female) from combiner box to disconnect
  • CBL08FT6AWGC – 8 ft set charge controller to battery cables
  • CBL08FT4AWG- 8 ft set of 1/0 AWG cable battery bank to inverter
  • CBL02FT4AWG – qty 1 -2 ft 4 AWG cable set (battery cables)
  • CBL01FT4AWGRED – qty 7 – 1 ft jumper for fuse kit and battery jumpers
  • ANL150KIT – 300 amp inline fuse kit for battery to inverter
  • ANL80KIT – 80 amp inline fuse kit for charge controller to battery
  • PVEXT15FT10AWG – qty 2 -15 ft PV extension wires male and female to connect solar panels in parallel

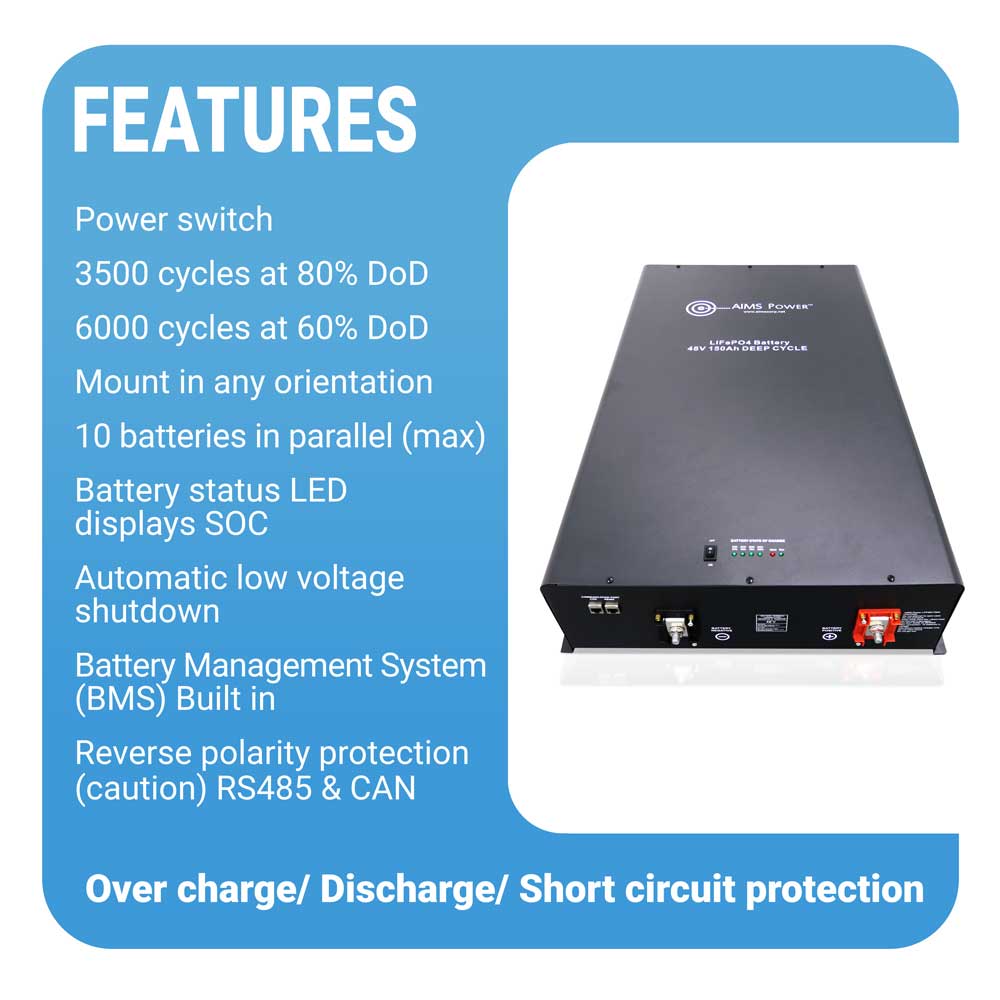

Upgrade to Lithium battery 48V. Much longer over battery life. Click for info here

1980 WATT SOLAR 6000 WATT PURE SINE POWER INVERTER CHARGER 120/240VAC 48VDC

Additional information

Weight 350 lbs
