Description
Output Specifications: USED and in great condition. Includes one year warranty.
- Continuous output power: 2000 Watt
- Surge rating: 6000 Watt (20seconds)
- Output waveform: pure sine/same as input (bypass mode)
- Output voltage: 100-110-120 VAC
- Nominal efficiency: >88% (peak)
- Line mode efficiency: >95%
- Output frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
- Typical transfer time: 10ms (max)
- Ouput breaker: 20 amps
- Transfer load: 20 amps
- THD: < 10% DC
Input Specifications:
- Nominal input voltage: 48 VDC
- Minimum start voltage: 40 VDC
- Low battery alarm: 42.0Vdc-44 VDC
- Low battery trip: 40.0Vdc-42 VDC
- High voltage alarm: 64 VDC
- Low battery voltage restart: 62 VDC
- Idle consumption: 28 watts
- Power savermode idle consumption: 12.7 watts
- Input breaker: 20 A
Charger Specifications:
- Output voltage: depends on battery type
- Charger rate: 20A
- Over charg protection shutdown: 62.8V
- Selectable charge setting based on battery type
- Adjustable charge current off-20%-100%
- Four stage smart charger
Transfer Switch Specifications:
- 20 amp automatic transfer load
- 10 ms (max)
Dimensions:
- Unit weight: 44 lbs.
- Unit size L x W x H: 16.48 x 8.74 x 7.10 inches
- Shipping weight: 47 lbs.
- Shipping size L x W x H: 23.5 x 13.0 x 12.5 inches
Download the manual

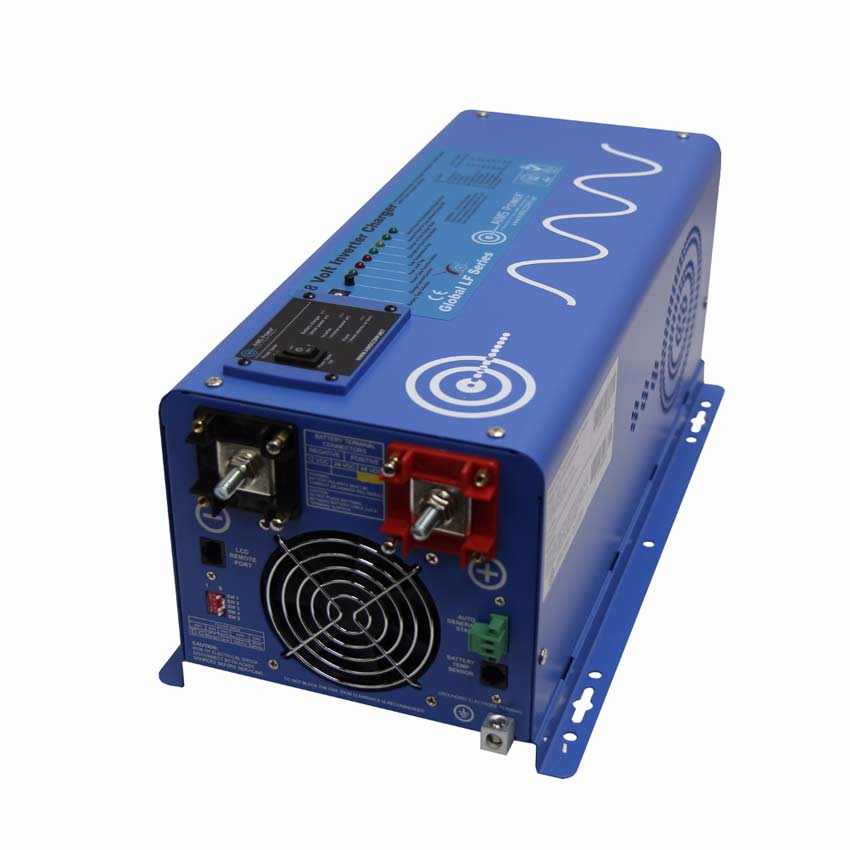

AIMS Power 2000 Watt 48 volt Inverter Charger – PICOGLF20W48V120VR
