240 Watt Solar. 300 Watt pure sine inverter at 24Vdc. 100 amps of battery power and 10 amp charger controller. Ideal for small devices such as computers, TVs, lights, CPAPs up to 2.5 amps. Perfect for off grid locations needing about 7-8 hours of run time using 300 watts, relying only on solar to recharge. 24Vdc runs more efficient with less equipment. Solar panels keep a trickle charge on the battery with sunlight and will recharge a battery at 50% depletion in <5 hours in full sun.
240 WATT SOLAR WITH 300 WATT PURE SINE INVERTER 24 VDC KIT OFF GRID
FREE SHIPPING IN THE 48 STATES. AIMS Power introduces the new all-in-one solar kit for all of your off grid power needs. Whether you’re supplying power to a small device in an RV or lighting for a small cabin, this solar kit includes all necessary products required and bundled for your convenience. This 240 watt solar kit is most effective when used to power small devices. The 300 watt 24 VDC inverter runs more efficiently and you can use more solar panels with the 10 amp charger at 24VDC. The panels are covered in tempered glass to protect from hazardous weather. The PV wiring is protected against UV, water, ozone, fluids, oil, salt and general weathering. Each system comes with a wiring diagram upon purchase.
- Easy to connect and use
- Works with small size devices up to 300 watts/ 2.5 AC amps
- Ideal for small size pumps, computers, video games and cell phones
- Expandable – supports multiple batteries
- Total panel dimensions are 8ft x 2ft which fits perfect on top of a RV, bus or work truck
*The solar panels will recharge a 50% depleted 100 amp battery in 5 hours with full sunlight.*
You can find the specifications for each product by clicking on the links below.

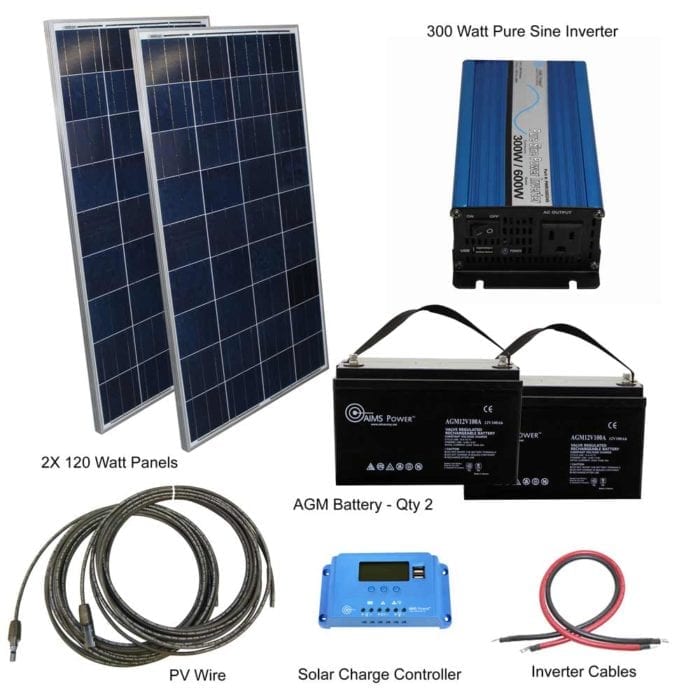

This solar kit includes:
- PWRI30024S – 300 watt pure sine inverter – 24 Volt click here for more info
- PV120POLY – qty 2 – 120 watt solar panels click here for more info

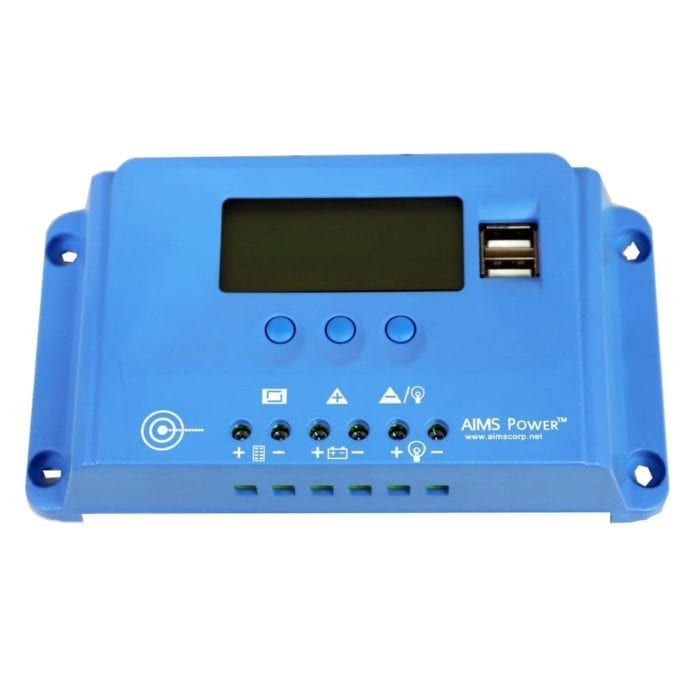

- SCC10APWM – 10 amp PWM solar charge controller click here fore more info
- 6FM100H – qty 2 – 100 ah AGM deep cycle battery click here for more info
- PV30FTSET – 30 foot PV wires for solar panel to charge controller male & female (positive & negative)
- PVSCC10FTSET – 10 ft set charge controller to battery wire
- PVSCC10FTSET- 8 ft set of cable battery to inverter
- PVSCC10FTSET – qty 2 – 1 ft jumper for fuse kit
- ANL80KIT – 80 amp inline fuse kit
- PVMC4.A-2F1M – MC4 Branch 2F to M
- PVMC4.A-2M1F – MC4 Branch 2M to F
