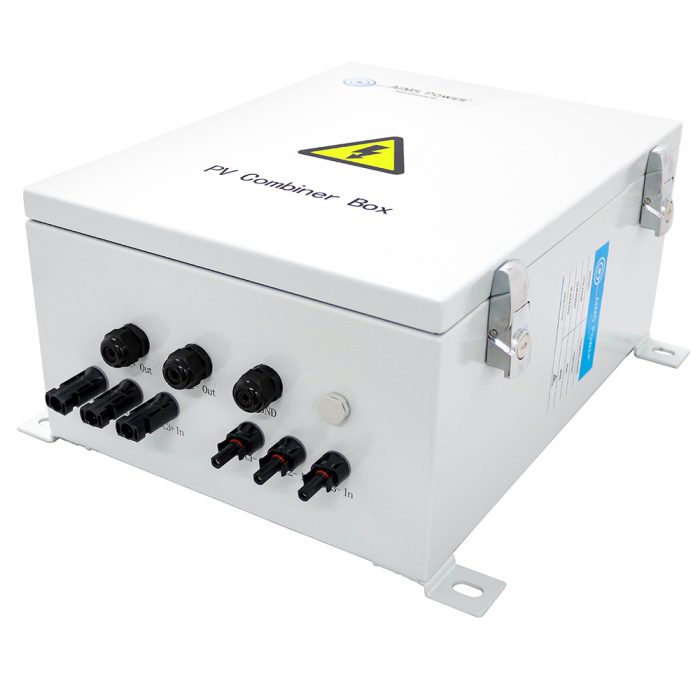

3 String Solar Array Combiner Box 60A 200 VDC 3 Inputs 10KW Prewired

$375.00

div#bread_checkout_button { background: #000; padding: 13px; background: #1c8195; border-radius: 24px; text-align: center; }


SKU: COM3IN-60AO Categories: ,

Features

  • Pre-wired
  • 1000V DC max input
  • 125A resettable output breaker
  • 3-25A (COM3IN) 6-25A (COM6IN) replaceable fuses
  • Diode protected
  • Lightning protected
  • MC4 input and output connections
  • DC input 3 or 6 set 60/120A output
  • Flexible mounting options; mount on a support bracket, plinth or racking system
  • Connect 3-6 PV strings and 2 DC outputs per polarity depending on model
  • Waterproof PG9 DC output and ground protection
  • Optimal cooling
  • NEMA & IP65 rated case with tamper proof locks
  • Touch safe fuse holder
  • 10 Year warranty

Description

  • 3 DC inputs
  • 200VDC input
  • Max input current – 25A
  • Max output current – 60A
  • Output power – 10KW
  • DC fuse – 200Vdc
  • Output breaker – 125A
  • DC switch – 500Vdc/40DA
  • NEMA 3R IP65
  • Operating temp: -13°F to 131°F w/o derating
  • Altitude: 0 to 6560 ft w/o Derating
  • Dimensions: 14 5/8″W (includes brackets, 11 7/8″W without brackets, 17 3/8″
    L (includes connectors), 7 5/8″ H
  • Weight: Unit 23.5 lb , Boxed 26 lb

Manual: Click here

Additional information

Weight 26 lbs
