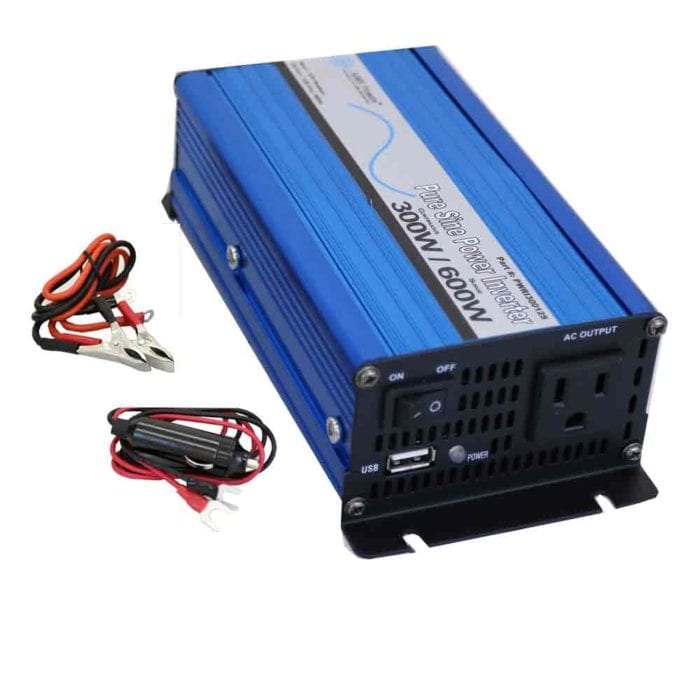

300 WATT PURE SINE POWER INVERTER 24 VOLT 120 VAC INCLUDES CABLES

$114.00 $85.00

Add Battery Volt Meter

Pay Over Time


Overview

Power inverters have become a staple in businesses and homes around the world due to intermittent brown and black-outs. AIMS Pure Sine Wave Power Inverters provide reliable transformation of DC power from a battery (such as the one in a car or RV) into AC power that can then be used to run lights, computers, printers, televisions, medical equipment* and a broad range of appliances. And when it comes to selecting an inverter, it’s helpful to know that AIMS Pure Sine Wave inverters represent the most technologically advanced, lightweight, compact and diverse inverters on the market to help ensure the widest use of applications. For over a decade, the AIMS’ Power Pure Sine Wave Power Inverters has consistently delivered the broadest range of sizes to accommodate virtually every power requirement.

Advantages of a pure sine inverter:
-Equipment runs more efficiently
-Motors run cooler
-Cleaner power
-Ideal for power tool chargers, laser printers, electric shavers, microwaves, variable speed motors, TV’s, medical equipment

To select the right inverter, first determine what devices you would need to run in the event of a power outage. Then, select the appropriate inverter that can carry the combined wattage requirements of these devices. Please see our tech support section for start up averages for all devices. At AIMS, you’ll discover our inverters range from 75 watts up to 50,000 watts – more than enough to power nearly every application imaginable.

Features

Features:

  • 300 Watt continuous power pure sine wave
  • Cooling fan
  • Single AC receptacle
  • USB Port
  • On/off switch
  • Convenient cigarette plug & alligator clips (To protect the vehicles wiring, the vehicles cigarette lighter adapter can only handle 120- 180 watts, if you are going to use more than 180 watts you must wire inverter to battery)
  • AC output short circuit protection
  • Instruction manual
  • Free 1 year tech support
  • 1 year warranty parts and labor

Video

Description

Specifications:

  • Continuous output power: 300 Watt
  • Surge power capability (peak power): 600 Watt
  • DC input / operating voltage: 20 to 30 volts
  • Output voltage: 120 volts AC
  • Output voltage regulation: +/- 3%
  • Output wave form: pure sine wave
  • Output frequency: 60 Hz +/- 2Hz
  • DC amps: 12.5
  • AC amps: 2.5
  • Battery low voltage shutdown: 20 volts
  • No load power consumption: < 0.5 DC amps
  • 1/3 load efficiency: 95%
  • No load minimum operating temperature: 32 degrees Celsius
  • Full load maximum operating temperature: 104 degrees Celsius (automatic shutdown)
  • AC output socket type: single type 2 -3 prong (socket splitter may be used)
  • High input voltage protection: 30 volts
  • Low input voltage shutdown: 20 volts

Dimensions:

  • Unit weight: 1.5 lbs.
  • Unit size L x W x H: 7.25 x 3.65 x 2.10 inches
  • Shipping weight: 2 lbs.
  • Shipping size L x W x H: 14 x 6 x 4 inches

Product manual click here

Additional information

Weight2 lbs
