3000 WATT 24 VOLT RACK MOUNT INVERTER TO 120 VAC PURE SINE

$1,049.00 $999.00

Add Cables

Add Fuse Kit

Pay Over Time


Overview

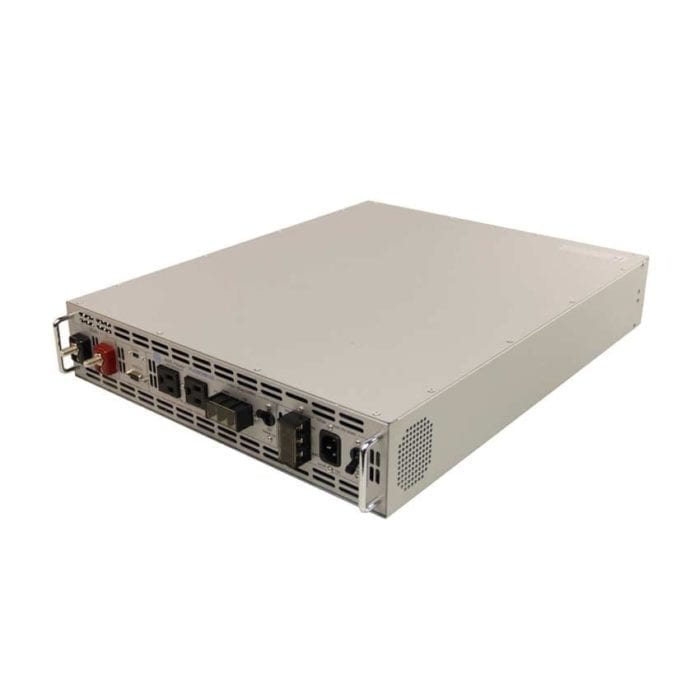

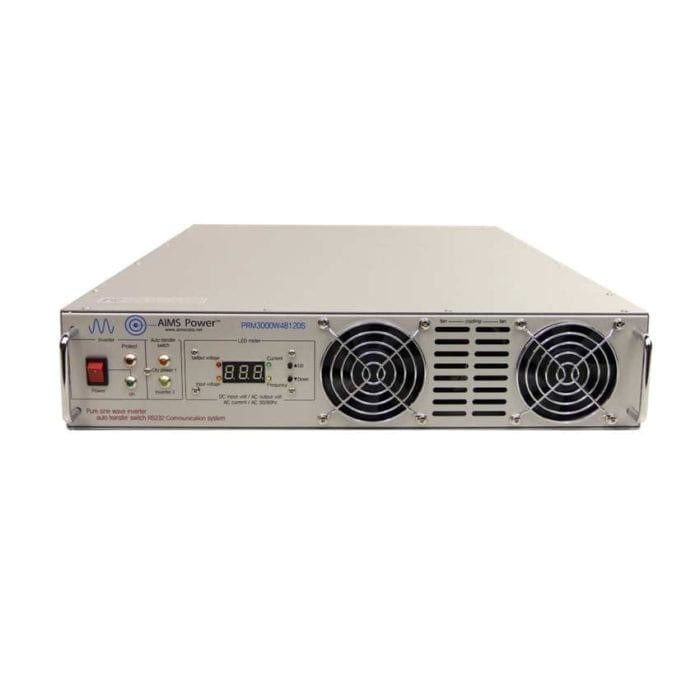

This 2U rackmount inverter is ideal for providing backup power to your essential equipment. It will generate 3000W of high quality pure sine power at a stable 120Vac output. Power is maintained to your equipment seamlessly through a built in 34 Amp transfer switch with a typical transfer time of less than 20ms. The transfer switch will by-pass city/utility power when it is available, and when city/utility power is lost the inverter will automatically switch to the backup DC power source. In backup mode the inverter will supply power as long as the DC power supply provides enough voltage. Remote monitoring of the inverter is available through an RS232 communication port which affords the user with real-time monitoring of the DC input voltage, AC output voltage, Frequency, and Amps.

Features

Features:

  • 3000 Watt continuous power – 24 volt to 120 volt
  • Pure sine wave
  • 2U rack mount inverter
  • FCC class B
  • RS232 communication port – monitored from a PC
    • Input DC voltage
    • Output AC voltage
    • Frequency
    • AC current
  • Digital status display – toggle
    • Input DC voltage
    • Output AC voltage
    • Frequency
    • AC current
  • Dual AC receptacle
  • On/off switch
  • Utility power bypass
  • Automatic transfer switch
  • Over temperature indicator
  • Overload protection
  • Low battery voltage warning/shutdown
  • High input voltage protection with automatic shutdown
  • Over load indicator
  • Short circuit protection
  • Thermal and load based fan
  • AC output short circuit protection
  • Instruction manual
  • Free 1 year tech support
  • 1 year warranty parts and labor

Video

Description

3000 WATT 24 VOLT RACK MOUNT INVERTER TO 120 VAC PURE SINE



Specifications:

  • Continuous output power: 3000 Watt
  • Surge power capability (peak power): 6000 Watt
  • DC input / operating voltage: 21.0 to 30.0 volts
  • Output voltage: 120 volts AC
  • Output wave form: pure sine wave
  • Output frequency: 60 Hz
  • Low battery voltage shutdown: 20.0 volts
  • High battery voltage shutdown: 31.7 volts
  • High battery voltage power return: 30.0 volts
  • Low battery voltage recovery: 22.4 volts
  • Low battery voltage warning/shutdown
  • No load power consumption: fan off 0.60 amp DC – fan on 1.5 amp DC
  • Frequency: 60Hz
  • Efficiency: 91%
  • Over temperature protection low: -4 degrees F ± 5 degrees F
  • Over temperature protection high: 172 degrees F ± 5 degrees F
  • Operating temperature recovery: 136 degrees F (automatic shutdown)
  • AC output socket type: dual type 2 -3 prong
  • RS232 communication port
  • High input voltage protection: 31.3 volt
  • Low input voltage shutdown: 20 volt
  • Transfer switch time: 16-18 millisecond (program controlled)
  • AC output and bypass protected 34 amp breaker
  • FCC class B – F690501/RF-EMC000376(H)

Dimensions:

  • Unit weight: 27.6 lbs.
  • Unit size L x H x W: 21.75 x 16.50 x 3.63 inches
  • Shipping weight: 35 lbs.
  • Shipping size L x W x H: 27.50 x 20.75 x 8.50 inches

3000 WATT 24 VOLT RACK MOUNT INVERTER TO 120 VAC PURE SINE

AIMS Power 3000 Watt 24 Volt Rack Mount Inverter – PRM3000W24120S Manual

Download software for PRM3000W24120S
