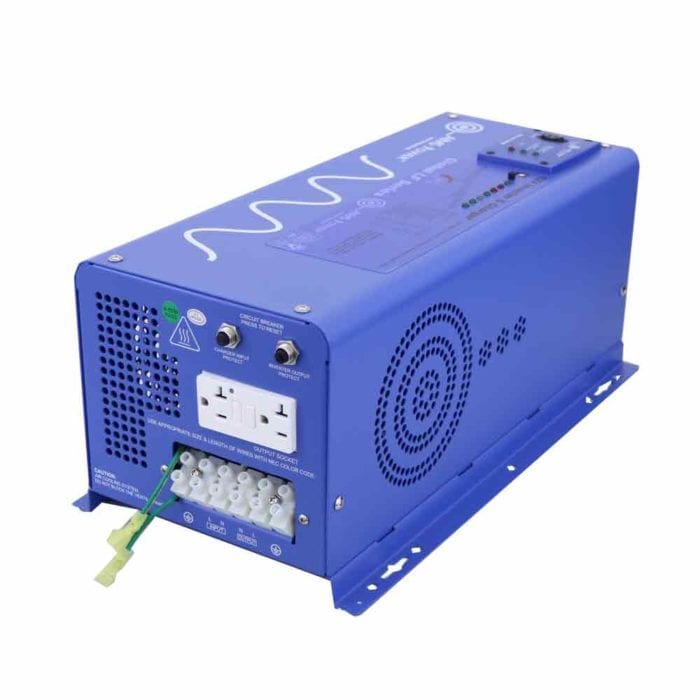

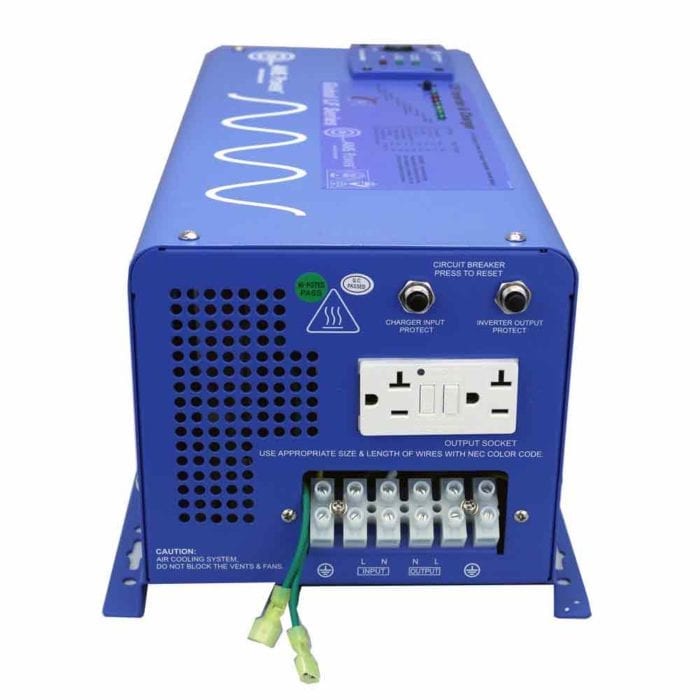

3000 WATT PURE SINE INVERTER CHARGER 12 VDC to 120 VAC

$1,061.00

3000 Watt, 9000 Watt surge, 12 Vdc, 120 Vac only, Inverter, Charger & Transfer Switch. 25 amps. 1 year free tech support and warranty.

div#bread_checkout_button { background: #000; padding: 13px; background: #1c8195; border-radius: 24px; text-align: center; }

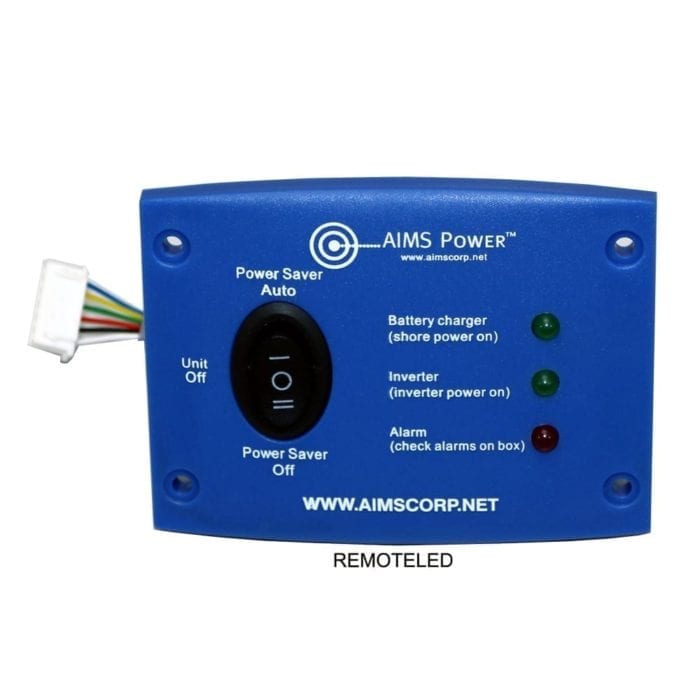

Add Remote

Add Cables

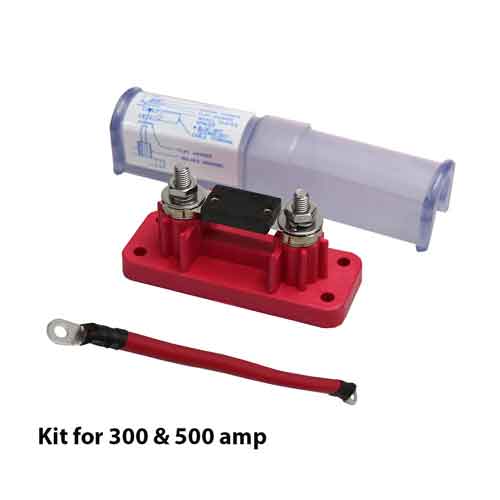

Add Fuse Kit

Add Battery Temperature Sensor

Overview

AIMS Power brings 20 years of experience and stellar customer service with this 3000 watt pure sine inverter charger. This unit is a combination of an inverter, battery charger and AC auto-transfer switch into one complete system with a peak DC and AC conversion efficiency of 92%.  It features power factor corrected, sophisticated multi-stage charging and pure sine wave output with unprecedentedly high surge capability to meet demanding power needs of inductive loads without damaging the equipment.

The powerful 100 amp battery charger, with power factor corrected, uses 20-30% less energy from AC input than a standard charger and includes a Batter Temperature Sensor port for increased charging precision. The overload capacity is 300% of continuous output for up to 20 seconds to reliably support tools and equipment.

The transformers have been consistently improved over the  years to achieve the best balance of conversion efficiency, idle consumption and minimum THD. The idle consumption of the line is ultra-low, roughly 1.5% of its rated power. The AC battery priority switch and auto generator start functionality make it ideal to work in either backup power or renewable energy applications.

In AC priority mode, when utility AC power cuts off, the transfer relay is de-energized and the load is automatically transferred to the inverter output. Once the qualified AC utility is restored, the relay is energized and the load is automatically transferred to AC utility.

When customized to battery priority mode via the DIP switch, the inverter will extract power from external power sources in renewable energy systems and a minimal cycle of the battery will be required. With the availability of the auto generator start, an electrical generator can be integrated into the system as a backup and started when the battery voltage gets low.

Features

Features:

  • 3000 watt low frequency inverter
  • 9000 watt surge for 20 seconds -3x surge capability
  • Battery priority selector

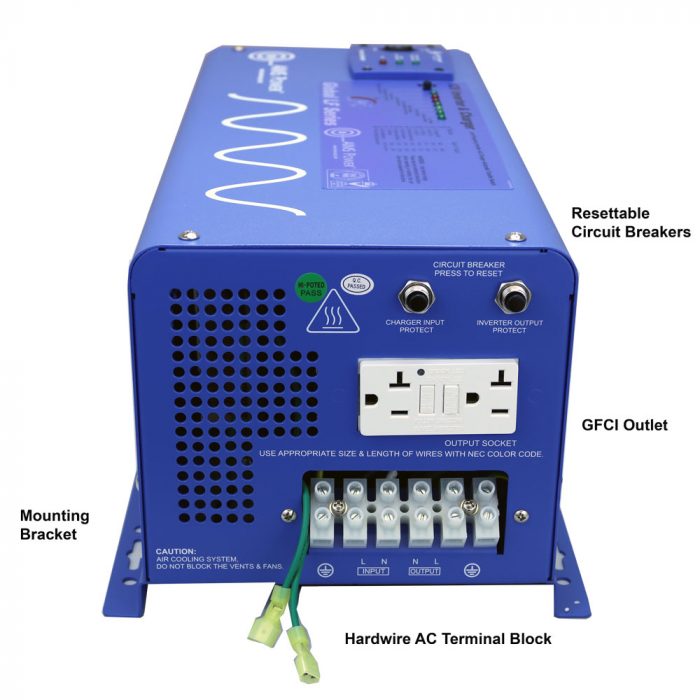

  • Terminal block
  • GFCI – 20 amps
  • Marine coated and protected
  • Multi stage smart charger 100 Amp
  • Remote panel available

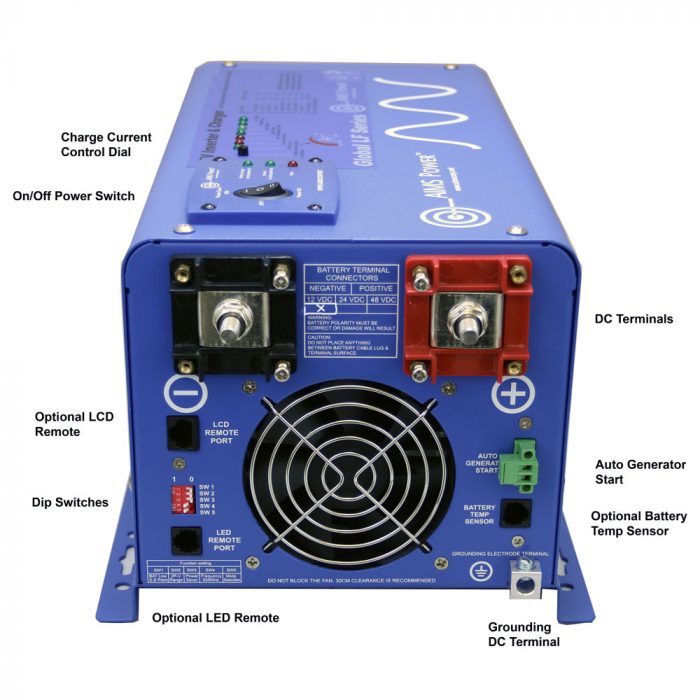

  • Auto gen start
  • Auto frequency
  • 10msec typical transfer time
  • Optional 25W power save mode
  • 7 battery type settings for charger
  • 1 year warranty and free tech support

Video

Description

3000 WATT PURE SINE INVERTER CHARGER 12 VDC to 120 VAC

Output Specifications: 3000 WATT PURE SINE INVERTER CHARGER

  • Continuous output power: 3000 Watt
  • Surge rating: 9000 Watt (20 seconds)
  • Output waveform: pure sine/same as input (bypass mode)
  • Output voltage: 100-110-120 VAC
  • GFCI breaker – 20A
  • Nominal efficiency: >88% (peak)
  • Line mode efficiency: >95%
  • Output frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
  • Typical transfer time: 10ms (max)
  • Terminal output breaker/ transfer load: 30 amps automatic
  • THD: < 10% DC

Input Specifications:

  • Nominal input voltage: 12.0 VDC
  • Minimum start voltage: 10.0 VDC
  • Low battery alarm: 10.5Vdc-11.0 VDc
  • Low battery trip: 10.0Vdc-10.5 VDC
  • High voltage alarm: 16.0 VDC
  • Low battery voltage restart: 13.3  VDC
  • Input breaker / charger breaker – 30 amps
  • Idle consumption: 55 watts
  • Power saver mode idle consumption: <21.7 watts

Charger Specifications:

  • Output voltage: depends on battery type
  • Charger rate: 100A

Dimensions:

  • Unit weight: 56 lbs.
  • Unit size: L x W x H: 16.48 x 8.74 x 7.10 inches
  • Shipping weight: 64 lbs.
  • Shipping size: L x W x H: 23.5 x 13.0 x 12.5 inches

3000 WATT PURE SINE INVERTER CHARGER 12 VDC to 120 VAC

Download the manual

AIMS Power 3000 Watt Inverter Charger – PICOGLF30W12V120VR
