3300 WATT SOLAR WITH 12,000 WATT PURE SINE POWER INVERTER CHARGER 48VDC 120/240VAC OFF GRID KIT

$15,999.00 $11,899.00

3180 Watt Solar. 12,000 Watt inverter charger provides 120 & 240 Vac power, 48Vdc, ETL/CSA listed. 600 amps of battery power and 60 amp charger controller. Ideal for large size devices such as appliances, fans, pumps, compressors, electronics up to 100 amps. Perfect for locations that need power for 3-4 hours using a full  12,000 watts, before recharing and also have access to a generator or shore power if available to recharge batteries using the inverter. Solar panels keep a charge on the batteries using sunlight and will recharge the batteries at 50% depletion in < 5 hours in full sun.

Add PV DC Solar Disconnect Switch

Convenient and added safety to cut solar power for maintenance and/or systems that don’t need constant solar power

Add LCD Remote

Additional Solar Add-On Kits

Add Ground Mount Racks

Pay Over Time

Overview

FREE SHIPPING IN THE 48 STATES. AIMS Power introduces the new all-in-one solar kit for all of your off grid power needs. Whether you’re supplying power to a business office or whole house, this solar kit includes all necessary products required bundled for your convenience. This 3300 watt solar panel kit comes with a 12,000 watt low frequency inverter charger 48VDC split phase 110/120/220/230/240 VAC.  The pure sine inverter has a built in smart charger, automatic transfer switch and can recharge the batteries when city or generator power is available. The 48VDC is more efficient and generates less heat. The poly crystalline panels are covered in tempered glass to protect from hazardous weather. The PV wiring is protected against UV, water, ozone, fluids, oil, salt and general weathering. The kit is packed with 1200 amps of battery power. Each system comes with a wiring diagram upon purchase.

Ground and pole mount racks available separately.

Features

Features:

  • Easy to connect and use
  • Works with medium size devices up to 12,000 watts/ 10 AC amps  120VAC or 41.5 amps at 240 VAC
  • Ideal for large appliances, tools, pumps, compressors, AC units, freezer, refrigerators, heaters and electronics
  • Ideal for large homes or businesses that need 120 and 240 VAC power

*The solar panel array will recharge a 50% depleted 600 amp battery bank in  5 hours with full sunlight.*

Video

Description

3300 WATT SOLAR WITH 12,000 WATT PURE SINE POWER INVERTER CHARGER 48VDC 120/240VAC OFF GRID KIT

Specifications: 3300 WATT SOLAR 12,000 WATT PURE SINE POWER INVERTER CHARGER 48VDC 120/240VAC OFF GRID KIT

You can find the specifications for each product by clicking on the links below.

This solar kit includes:

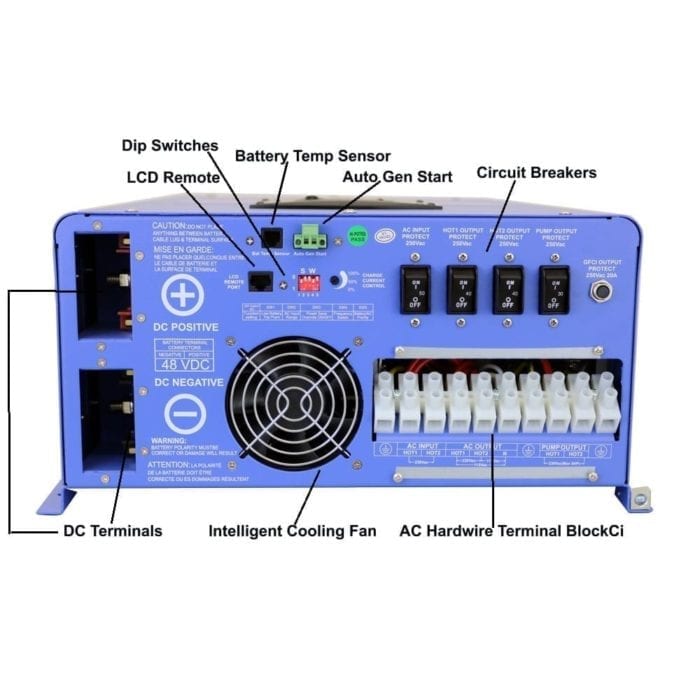

    • PICOGLF120W48V240VS – 12,000 watt pure sine inverter charger 120/240vac ETL and CSA certified

Click here for more inverter info

    • PV275POLY – qty 12 – 275 watt solar panel

Click here for more panel info

    • SCC80AMPPT – 80 amp MPPT solar charge controller

Click here for more controller info

    • AGM12V200A – qty 12- 200 ah AGM deep cycle battery

Click here for more battery info

  • PVF100FT10AWG – 100 foot PV wire for solar panel (female)
  • PVM100FT10AWG – 100 foot PV wire for solar panel (male)
  • PICGLFBATS – qty 1 – battery temp sensor
  • PVMC4.A-2F1M – qty 2 – MC4 Branch 2F to M
  • PVMC4.A-2M1F – qty 2 – MC4 Branch 2M to F
  • PVEXT15FT10AWG – qty 6 – 15ft PV extension wire
  • CBL08FT6AWGC- 8 ft set of 6WG cable to connect SCC to battery bank
  • CBL08FT1/0 – 8 ft set of 1/0 AWG cable set battery bank to inverter
  • CBL02FT1/0 – qty 2 – 2 ft 1/0 cable (battery cables)
  • CBL01FT1/0RED – qty 11 – 1 ft jumper for fuse kit and battery jumpers
  • ANL300KIT – 300 amp inline fuse kit

3300 WATT SOLAR 12,000 WATT PURE SINE POWER INVERTER CHARGER 48VDC 120/240VAC OFF GRID KIT

Additional information

Weight 350 lbs
