3300 WATT SOLAR WITH 6000 WATT PURE SINE POWER INVERTER CHARGER 48VDC 120 VAC OFF GRID KIT

$11,299.00 $10,199.00

3300 Watt Solar. 6000 Watt inverter charger provides 120 Vac power, 48Vdc. 400 amps of battery power and 80 amp charger controller. Ideal for large size devices such as appliances, fans, pumps, compressors, electronics up to 50 amps. Perfect for locations that need power for 3-4 hours of run time using a full 6000 watts, before recharging and also have access to a generator or shore power if available to recharge batteries using the inverter. Solar panels keep a charge on the batteries using sunlight and will recharge the batteries at 50% depletion in <7 hours in full sun.

Add LCD Remote

Add Racks

Pay Over Time


Overview

FREE SHIPPING IN THE 48 STATES. AIMS Power introduces the new all-in-one solar kit for all of your off grid power needs. Whether you’re supplying power to a business office or whole house, this solar kit includes all necessary products required bundled for your convenience. This 3300 watt solar panel kit comes with a 6000 watt low frequency inverter charger 48VDC.  The pure sine inverter has a built in charger and can recharge the batteries when city or generator power is available. The 48VDC is more efficient and generates less heat. The poly crystalline panels are covered in tempered glass to protect from hazardous weather. The PV wiring is protected against UV, water, ozone, fluids, oil, salt and general weathering. The kit is packed with 800 amps of battery power. Each system comes with a wiring diagram upon purchase.

Features

Features:

  • Easy to connect and use
  • Everything you need for an offgrid or backup solar system
  • Works with medium size devices up to 6000 watts/ 50 AC amps 120VAC
  • Ideal for medium size appliances, tools, pumps, compressors and electronics

*The solar panel array will recharge a 50% depleted 800 amp battery bank in  6.5 hours with full sunlight.*

Video

Description

3300 WATT SOLAR WITH 6000 WATT PURE SINE POWER INVERTER CHARGER 48VDC 120 VAC OFF GRID KIT

FREE SHIPPING TO 48 STATES

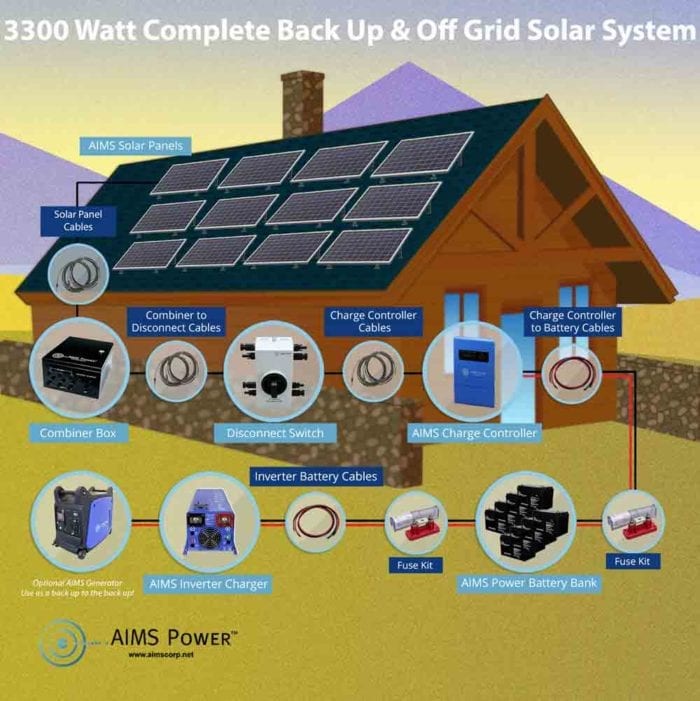

KIT COMPONENTS:

6000 watt pure sine inverter charger – 48 Volt / 120 vAC PICOGLF60W48V120V

Click here for more inverter charger info

275 watt solar panels –  Qty 12 PV275POLY

Click here for more solar panel info

Pre-Wire Combiner Box 6 String – COM6IN120A

Click here for combiner box info

80 Amp MPPT solar charge controller – SCC80AMPPT

Click here for more controller info

Quick Disconnect Switch – DC1600V32A2IO

Click here for disconnect switch info

200 amp hours deep cycle AGM sealed lead acid batteries – Qty 8 AGM12V200A

Click here for more battery info

  • PICGLFBATS – qty 1 – battery temperature sensor
  • PVEXT20FT10AWG – PV female & male extension cables for solar array to combiner box and disconnect to solar charge controller
  • PVM100FT10AWG – 100 foot PV wire for solar panel (male) from combiner box to disconnect
  • PVF100FT10AWG – 100 foot PV wire for solar panel (female) from combiner box to disconnect
  • CBL08FT6AWGC – 8 ft set charge controller to battery cables
  • CBL08FT4AWG- 8 ft set of 4 AWG cable battery bank to inverter
  • CBL02FT4AWG– qty 2 -2 ft 4 AWG cable (battery cables)
  • CBL01FT4AWGRED – qty 7 – 1 ft jumper for fuse kit and battery jumpers
  • ANL150KIT – 150 amp inline fuse kit for battery to inverter
  • ANL100KIT – 100 amp inline fuse kit for charge controller to battery
  • PVEXT15FT10AWG – qty 2 -15 ft PV extension wires male and female to connect solar panels in parallel
  • 3300 WATT SOLAR WITH 6000 WATT PURE SINE POWER INVERTER CHARGER 48VDC 120 VAC OFF GRID KIT

Additional information

Weight350 lbs
