3300 WATT SOLAR PANEL BASE KIT – CUSTOMIZABLE STARTING AT…

$5,299.00 $5,049.00

Use as a base or add on kit. Qty 12 275 Watt panels,  all cables for panels, a quick disconnect switch and a combiner box with added safety are included. Customize your own kit by adding a solar charge controller, batteries and an inverter for a complete off grid kit. We include everything you need.

A solar charge controller is needed to regulate the voltage from the solar panels to the battery bank. Select your size from the menu above. Based on 1650 watts of solar, we recommend 40 amps using a 48V battery bank or 80 amps using a 24V battery bank. Once you have selected your charge controller add a battery bank and a DC to AC inverter for a complete off-grid or back-up solar kit.

Pay Over Time


Overview

This AIMS solar kit is a perfect starter kit or as an add on to an existing solar system.  Here at TheInverterStore, we have put together a combination of kits in an easy to use customizable selection tool.

This “base” kit allows you to choose a solar charge controller, add batteries and a DC to AC power inverter depending on your needs. The AIMS solar kit can also be added to an existing battery bank and/or inverter system. Designed for off grid or back up power systems. For complete solar kits including batteries and power inverters see our solar kit section. Click here for more info.

Free shipping to the 48 states.

Feature

  • Easy to connect and use
  • Ideal for any application that needs off grid  or back up power
  • Customizable. Simply select charge controller, battery bank and inverter and you’ll have a complete offgrid/backup solar system. Everything included.

This kit includes the following components:

  • 12 275 watt panels
  • Solar charge controller – must select size
  • Pre-wired combiner box click here for product info
  • PV DC solar disconnect switch click here for product info
  • 100 ft set of PV for solar panels, extender cables, cables for disconnect and combiner box
  • 6 foot 6 AWG cable for charge controller to battery bank
  • Fuse kit

**Optional ground or pole mount racks for 12 275 watt panels available click here for more info

Description

3300 WATT SOLAR PANELS BASE KIT

FREE SHIPPING TO THE 48 STATES

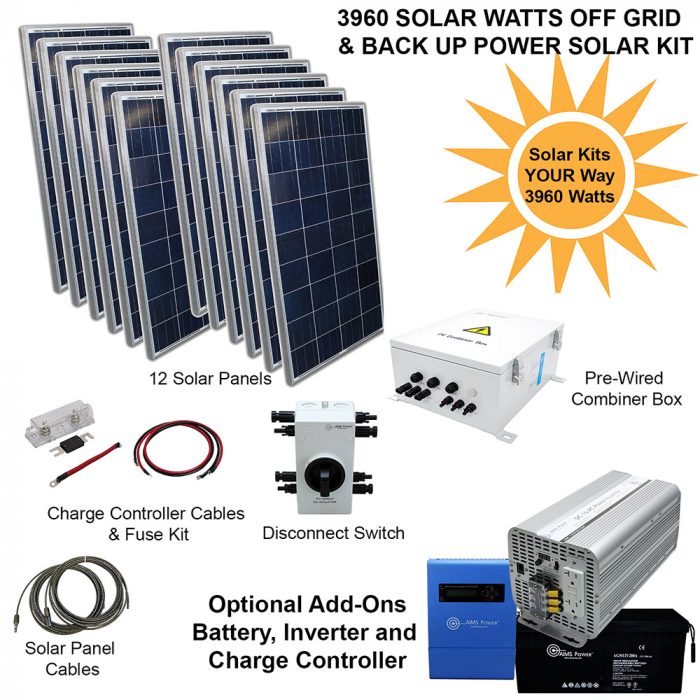

KIT COMPONENTS:

275 Watt Solar Panel – Qty 12

Click here for more solar panel info

Pre-wired Combiner Box – 6 String

Click here for more combiner box info – allows for easy panel installation and added safety features.

Quick Disconnect Switch

Click here for more disconnect switch info

PV cables 15FTSET M&F ends extenders for panels parallel connection

PV cables 20FTSET M&F ends extenders for Panels to Combiner

PV cables 100FTSET M&F ends for Combiner to Disconnect Switch

PV Cables 20FTSET MC4 to bare ends for Disconnect Switch to Solar Charge Controller

CBL08FT6AWGC- 8 ft 6 AWG cable to connect Charge Controller to Battery Bank

ANL100FUSE kit – Fuse from Charge Controller to Battery Bank

***To complete your off grid or back up solar kit, add charge controller, batteries and an DC to AC power inverter.

Battery info click here

Charge controller info click here

3300 WATT SOLAR PANELS BASE KIT

Additional information

Weight350 lbs
Dimensions70 × 48 × 28 in
