3960 WATT SOLAR WITH 6000 WATT PURE SINE POWER INVERTER CHARGER 48VDC 120 VAC OFF GRID | BACK UP POWER KIT

$12,615.00

3960 Watt Solar. 6000 Watt inverter charger provides 120 Vac power, 48Vdc. 400 amps of battery power and 80 amp charger controller. Ideal for large devices such as appliances, fans, pumps, compressors, electronics up to 50 amps 120V & 6000 watts.  With the built in battery charger generator or shore power can quickly recharge batteries.  Solar panels keep a charge on the batteries using sunlight and will recharge the batteries at 50% depletion in <3 hours in full sun. This kit will keep up with your demand during daylight hours. EVERYTHING YOU NEED ALL IN ONE KIT.

Use half the batteries, no memory problems, >8x more cycles and 1/2 the weight compared to other battery technologies.

Pay Over Time


Overview

FREE SHIPPING IN THE 48 STATES.

This powerful, all-in-one solar kit provides up to 50 amps of power @120V AC. Whether you’re supplying power to a business office or entire house, this solar kit includes all necessary products and bundled for your convenience.

With 3840 watts of solar paired with a 6000 watt low frequency inverter charger and 800 amp battery bank at 48VDC, this kit will keep you running.  The pure sine inverter has a built in charger and can recharge the batteries when city or generator power is available. Using 48VDC is more efficient and generates less heat allowing you to use smaller cables and fuses. The efficient mono crystalline panels are covered in tempered glass to protect from hazardous weather and the PV wiring is protected against UV, water, ozone, fluids, oil, salt and general weathering.

Each system comes with a wiring diagram upon purchase.

Features

Features:

  • Easy to connect and use
  • Everything you need for an offgrid or backup solar system
  • Works with medium size devices up to 6000 watts/ 50 AC amps 120VAC
  • Ideal for medium size appliances, tools, pumps, compressors and electronics
  • Automatically switches from grid power to solar power or can be used for all off grid applications

*The solar panel array will recharge a 50% depleted 800 amp battery bank in <5  hours with full sunlight.*

Description

3960 WATT SOLAR WITH 6000 WATT PURE SINE POWER INVERTER CHARGER 48VDC 120 VAC OFF GRID KIT

FREE SHIPPING TO 48 STATES

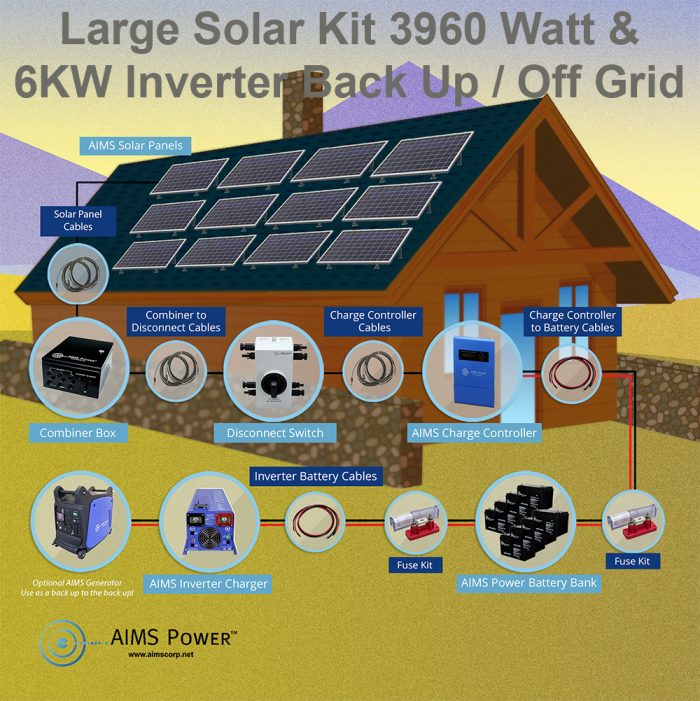

KIT COMPONENTS:

6000 watt pure sine inverter charger (50 amps) – 48 Volt / 120 vAC PICOGLF60W48V120V

Click here for more inverter charger info

330 watt solar panels mono –  Qty 12 PV330mono @210 SQ FT

Click here for more solar panel info

Pre-Wire Combiner Box 6 String – COM6IN120AO

Click here for combiner box info

80 Amp MPPT solar charge controller – SCC80AMPPT

Click here for more controller info

Quick Disconnect Switch – DC1600V32A2IO

Click here for disconnect switch info

200 amp hours deep cycle AGM sealed lead acid batteries – Qty 8 AGM12V200A

Click here for more battery info

  • PICGLFBATS – qty 1 – battery temperature sensor
  • PVEXT20FT10AWG – PV female & male extension cables for solar array to combiner box and disconnect to solar charge controller
  • PVM100FT10AWG – 100 foot PV wire for solar panel (male) from combiner box to disconnect
  • PVF100FT10AWG – 100 foot PV wire for solar panel (female) from combiner box to disconnect
  • CBL08FT6AWGC – 8 ft set charge controller to battery cables
  • CBL08FT4AWG- 8 ft set of 4 AWG cable battery bank to inverter
  • CBL02FT4AWG– qty 2 -2 ft 4 AWG cable (battery cables)
  • CBL01FT4AWGRED – qty 7 – 1 ft jumper for fuse kit and battery jumpers
  • ANL150KIT – 150 amp inline fuse kit for battery to inverter
  • ANL100KIT – 100 amp inline fuse kit for charge controller to battery
  • PVEXT15FT10AWG – qty 2 -15 ft PV extension wires male and female to connect solar panels in parallel

Upgrade to Lithium batteries. Much longer over battery life. Click for info here

  • 3960 WATT SOLAR WITH 6000 WATT PURE SINE POWER INVERTER CHARGER 48VDC 120 VAC OFF GRID KIT

Additional information

Weight 700 lbs
