3960 WATT SOLAR WITH 8,000 WATT PURE SINE POWER INVERTER CHARGER 48VDC 120/240VAC OFF GRID | BACK UP POWER KIT

$15,793.00

3960 Watt Solar. 8000 Watt inverter charger provides 120 & 240 Vac power ETL/CSA listed, 48Vdc. 600 amps of battery power and 80 amp charger controller. Powers large devices such as appliances, fans, pumps, compressors, electronics up to 66 amps. Perfect for locations that  have access to a generator or shore power if available to recharge batteries. Solar panels keep a charge on the batteries using sunlight and will recharge the batteries at 50% depletion in <5 hours in full sun.

div#bread_checkout_button { background: #000; padding: 13px; background: #1c8195; border-radius: 24px; text-align: center; }


Use half the batteries, no memory problems, >8x more cycles and 1/2 the weight compared to other battery technologies.

SKU: KITD-80W48V3840W Categories: , , , ,

Overview

FREE SHIPPING IN THE 48 STATES. Powerful all-in-one solar kit for all of your off grid or back up power needs. Whether you’re supplying power to a business office or whole house, this solar kit includes all necessary products and bundled for your convenience. This 3840 watts of solar and the 8,000 watt. 100/50amp output low frequency inverter charger 48VDC split phase 110/120/220/230/240 VAC along with 600 amps of battery power at 48VDC will keep you up and running.

The pure sine inverter has a built in smart charger, automatic transfer switch and can recharge the batteries when city or generator power is available.  If grid power is lost, your solar system will automatically kick in. The 48VDC is more efficient, generates less heat allowing you to use smaller cables and fuses. The mono crystalline panels are covered in tempered glass to protect from hazardous weather and the PV wiring is protected against UV, water, ozone, fluids, oil, salt and general weathering.

Each system comes with a wiring diagram upon purchase.

Description

3960 WATT SOLAR WITH 8,000 WATT PURE SINE POWER INVERTER CHARGER 48VDC 120/240VAC OFF GRID KIT

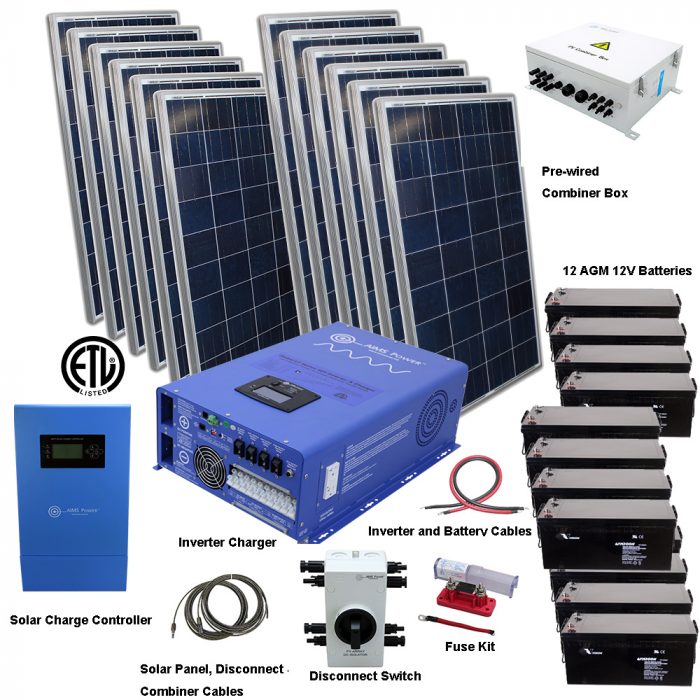

KIT COMPONENTS

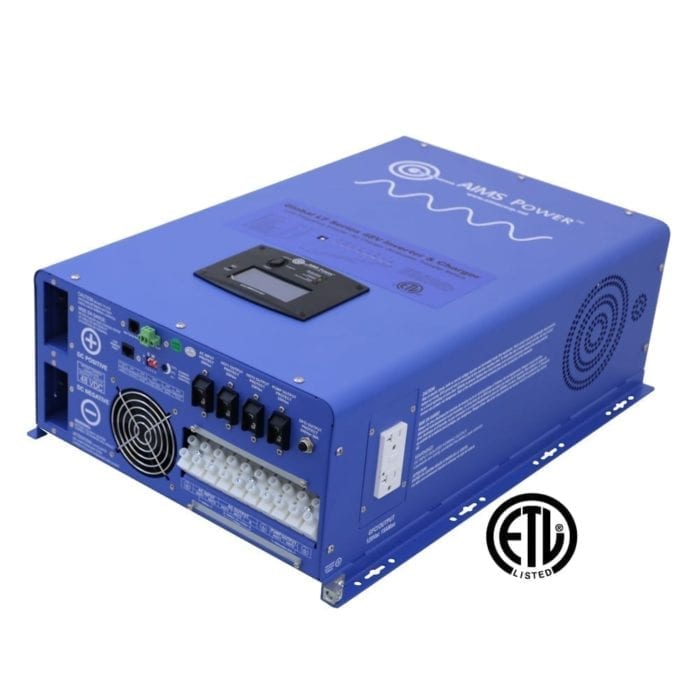

8,000 watt pure sine inverter charger 120/240vac ETL and CSA certified PICOGLF80KW48V240VS

Click here for more inverter info

330 watt mono solar panel  Qty 12 – PV330mono @210 SQ FT

Click here for more panel info

Combiner Box 6 String– Pre-wired

Click here for combiner box info

80 amp MPPT solar charge controller SCC80AMPPT

Click here for more controller info

Quick Disconnect Switch DC1600V32A2IO

Click here for disconnect switch info

200 ah AGM deep cycle battery maintenance free sealed lead acid AGM12V200A – Qty 12

Click here for more battery info

  • PICOGLFBATS – qty 1 – battery temperature sensor
  • PVEXT20FT10AWG – PV female & male extension cables for solar array to combiner box and disconnect to solar charge controller
  • PVM100FT10AWG – 100 foot PV wire for solar panel (male) from combiner box to disconnect
  • PVF100FT10AWG – 100 foot PV wire for solar panel (female) from combiner box to disconnect
  • CBL08FT6AWGC – 8 ft set charge controller to battery cables
  • CBL08FT1/0AWG- 8 ft set of 4 AWG cable battery bank to inverter
  • CBL02FT1/0AWG– qty 2 -2 ft 4 AWG cable (battery cables)
  • CBL01FT1/0AWGRED – qty 7 – 1 ft jumper for fuse kit and battery jumpers
  • ANL300KIT – 300 amp inline fuse kit for battery to inverter
  • ANL100KIT – 100 amp inline fuse kit for charge controller to battery
  • PVEXT15FT10AWG – qty 2 -15 ft PV extension wires male and female to connect solar panels in parallel

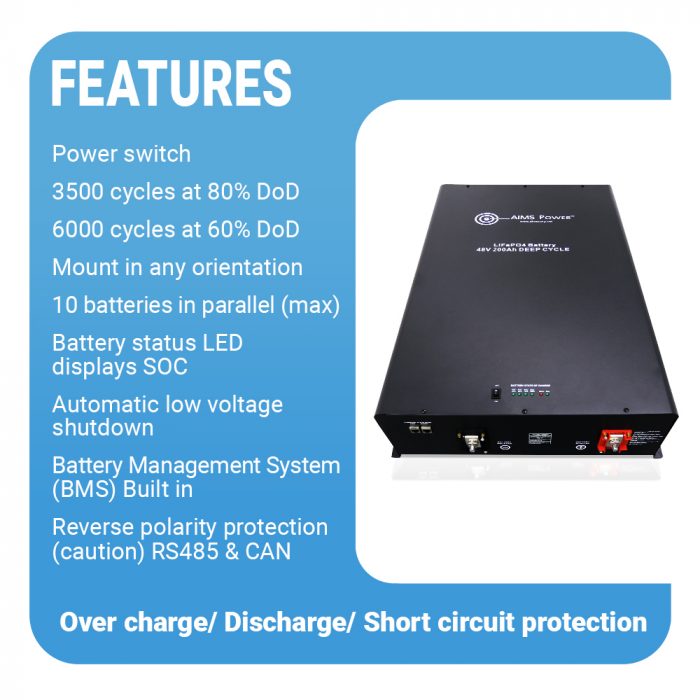

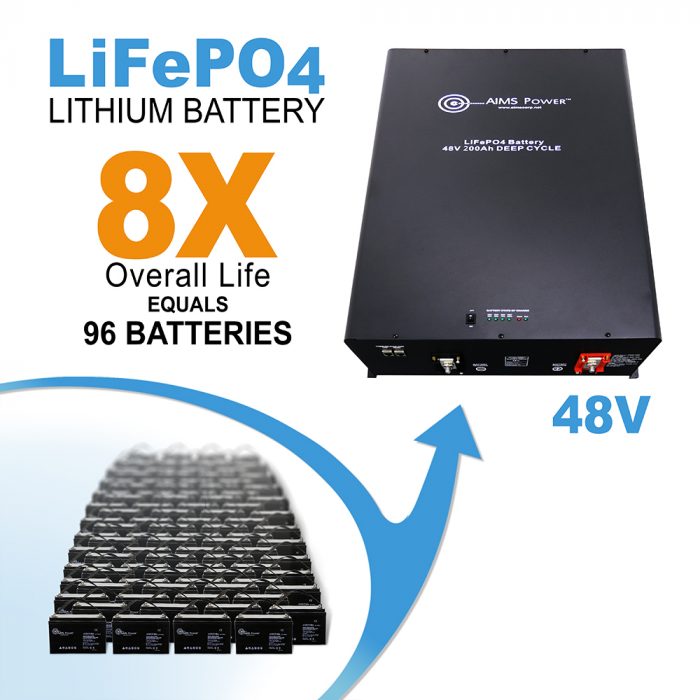

Upgrade to Lithium batteries. Much longer over battery life. Click for info here

3960 WATT SOLAR 8000 WATT PURE SINE POWER INVERTER CHARGER 48VDC 120/240VAC OFF GRID KIT

Additional information

Weight 1000 lbs
