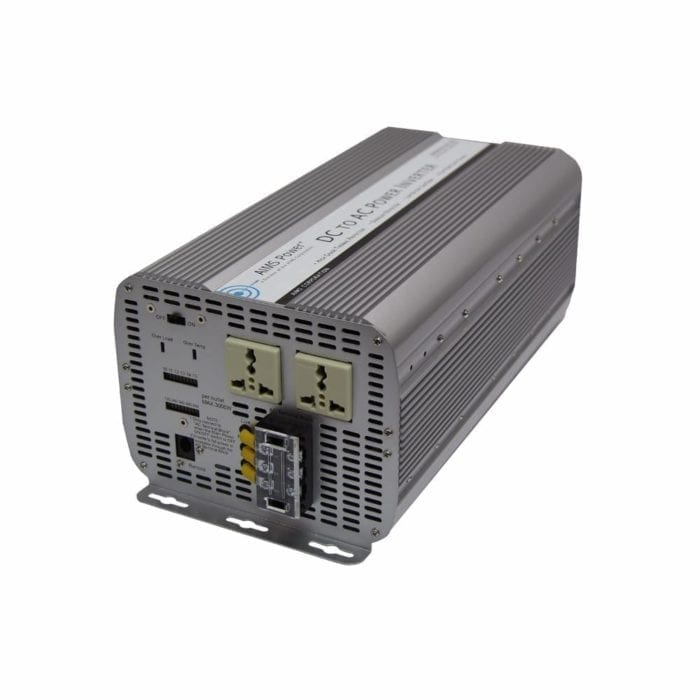

5000 WATT MODIFIED SINE INVERTER 12 VDC TO 220/230/240 VAC

$528.00

div#bread_checkout_button { background: #000; padding: 13px; background: #1c8195; border-radius: 24px; text-align: center; }


Add Remote

Add Cables

Add Fuse Kit

Overview

The AIMS Power 5000 Watt inverter with 240 volts AC output is a great choice for an off grid well pump that requires 240VAC to operate. However, keep in mind that this inverter is not a “split phase” 240VAC; you will not be able to pull one leg off to create 120VAC. The 240VAC supply is accomplished through one of the two AC receptacles, or the direct connect terminal block. This inverter will accept 12V as an input and produce a modified sine wave output.

The AIMS inverter offers some great features that are beneficial to any system. First, the front panel has digital gauges that display DC voltage and amp draw. These gauges allow the customer to actively monitor the condition of their system with easy to read gauges. Second, the cooling fans are thermally controlled; which means the fans will only cycle on when the inverter is under heavy loads or the inverter is getting warm internally.

Whether for a well pump or a 240 volt motor that needs back up power, the AIMS Power 5000 Watt 240VAC inverter is a great option. For over a decade, AIMS Power has offered top of the line off grid inverters and accessories for virtually any application.

If you need more than 5000 watts of power, please see our industrial 24 volt and 48 volt inverters. Part numbers PWRIG700024024 and PWRIG7K2404860.

Features

Features:

  • 5000 Watt max continuous power
  • 10,000 Watt surge (not recommended for start up applications)
  • Modified sine wave
  • 240 Volt single phase AC output
  • Volt meter on front panel to monitor your battery voltage
  • Amp meter on front panel to monitor your current use (rate at which battery is drained)

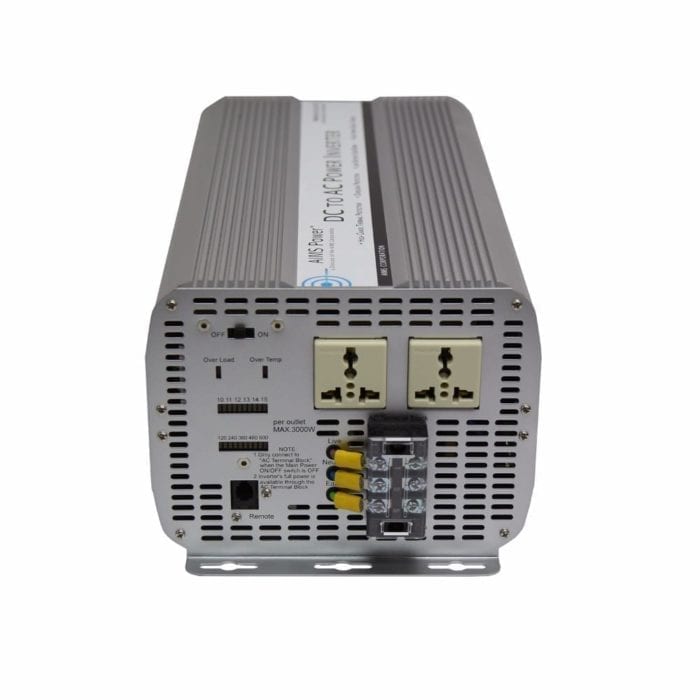

  • AC direct connect terminal
  • Overtemperature LED indicator
  • Overload LED indicator
  • Dual 240VAC Receptacles
  • On/off switch
  • Overtemperature protection
  • Overload protection
  • Single cooling fan operation thermally controlled
  • Internally fuse protected
  • AC output short circuit protection
  • Auto reset on most fault conditions
  • Aluminum case for optimal cooling
  • Pre-wired for remote on/off switch
  • Pre-slotted mounting plate
  • Instruction manual
  • Free 1 year tech support
  • 1 Year warranty parts and labor

Video

Description

Specifications:

  • Continuous output power: 5000 Watt
  • Surge power capability (peak power): 10,000 Watt
  • DC input / operating voltage: 10 to 15 volts
  • Output voltage: 240 volts AC
  • Output frequency: 60 Hz +/- .5 Hz
  • Battery low voltage alarm: 10.5 +/- 0.5 volts
  • Battery low voltage shutdown: 10.0 +/- 0.5 volts
  • No load minimum operating temperature: 5° F
  • Full load maximum operating temperature: 130 +/- 10° F (automatic shutdown)
  • Low voltage and over voltage alarm and protection
  • AC output socket type: dual 240
  • Low input voltage shutdown: 10V
  • Internal fuse protection
  • Product size (L x W x H): 16.92 X 7.95 X 6.1 inches
  • Weight: Unit – 16.72 lbs Boxed – 20 lbs

Note: This is not a split phase inverter. This is strictly a single phase 240 Volt output. Cannot be ran in phase to produce two legs of 120 Volt.

Product manual AIMS Power 5000 Watt Power Inverter 240VAC 60HZ- PWRINV5K24012W

Additional information

Weight 20 lbs
