60 Watt Flexible Bendable Slim Solar Panel & 10 AMP Charge Controller Kit

$119.00

60 Watt flexible panel and 10 amp charge controller are the “base” pieces for this kit. To purchase a complete off grid portable solar kit, chose your cables, battery and power inverter based on your application. To view more info about the batteries click here. To view more info about the power inverters click here.

If you already have a battery and inverter but just want to add some solar charging, just purchase the base kit.

div#bread_checkout_button { background: #000; padding: 13px; background: #1c8195; border-radius: 24px; text-align: center; }

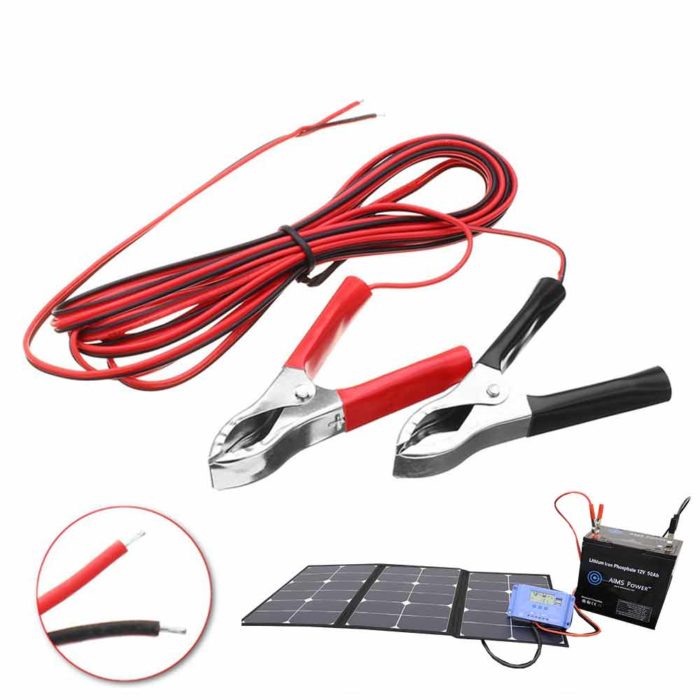

Add Charge Controller to Battery Cables

Add PV Extension Wire

Use when charge controller is > 6ft from solar panel

Add 12V Battery

The solar panel connects to the solar charge controller to charge a battery. Add one of our batteries and cables. The cables connect the charge controller to the battery. Depending on your installation you may need cables ranging from 10ft up to 50ft. You can custom cut the cables for your application.

Add 12Volt DC to AC Pure Sine Power Inverter

To utilize the battery power you will need to connect a power inverter to the battery to convert the battery’s power to regular household power. Purchase an inverter charger if you have access to city or generator power to also charge the battery if sunlight not available. Pure Sine inverters are able to power all devices including sensitive electronics. 600 Watt = 5 amps

Overview

Introducing the AIMS Power flexible, bendable, thin solar panel and charge controller kit for RVs, boats, toy haulers, vans, cabins or any uneven or curved surface that needs power. This rugged, easy to install kit includes the solar panel and the solar charge controller needed to recharge any 12V or 24V battery (s) as the base pieces.

No custom mounting needed. This versatile panel can be used in non-permanent or permanent applications. Whether you want some extra power on your RV/boat/camper or on a weekend camping trip, this kit will get the job done without the hassle of complicated mounting systems.

To purchase a complete off grid solar kit, simply add cables, battery and an DC to AC power inverter from the drop down menu. If you already have a battery and an inverter and want to add some solar charging, just purchase the base kit.

Add one of our DC to AC power inverters to power small devices such as: tvs, radios, computers, video games, cell phones, cpap and much more.

Make sure to view all of our solar kits by clicking here.

Features

Solar Panel

  • Constructed with high quality material and advanced monocrystalline solar cells for efficient energy harvest
  • Extremely durable and rugged
  • Ideal for curved and uneven surfaces. RVs, boats, bus, vans, utilities, golf carts, sewn to heavy duty material such as sun shades
  • Up to 90⁰ degree bend (more degree of bend with the 120 watt model vs. 60 watt, smaller panels have less bend)
  • Weather resistant. Appropriate for outdoor use.

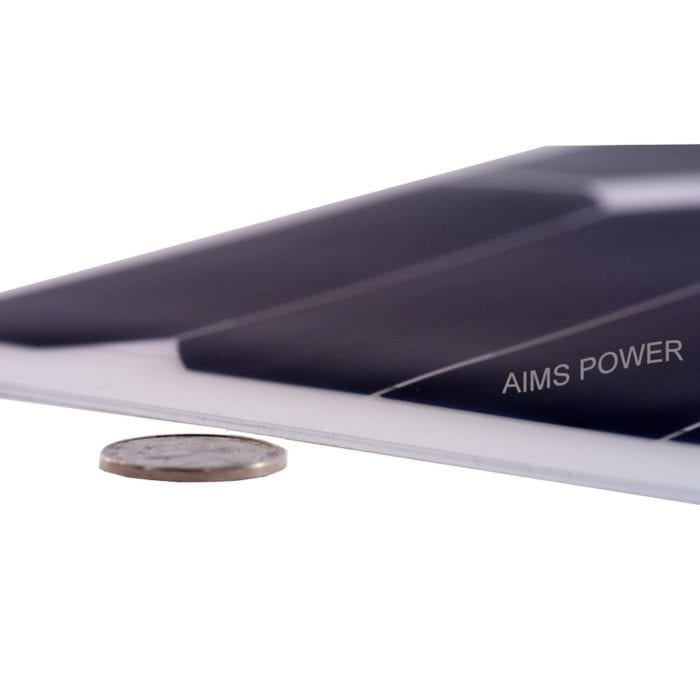

  • Thickness compares to the thickness of a nickel
  • Pre drilled grommet holes aid in various installation methods such as zip ties, Velcro, straps for non-permanent applications
  • Lightweight and super thin allowing use of a strong adhesive or industrial thread for permanent mounting applications
  • Bypass diode minimizes the power drop when shaded
  • Modules are independently tested to ensure conformance with certification and regulatory standards
  • Manufacturing facility certified to ISO 9001 quality management system standards
  • Panels capable of +/- 3% power efficiency than rated
  • 5 year warranty, 10 year 80% output

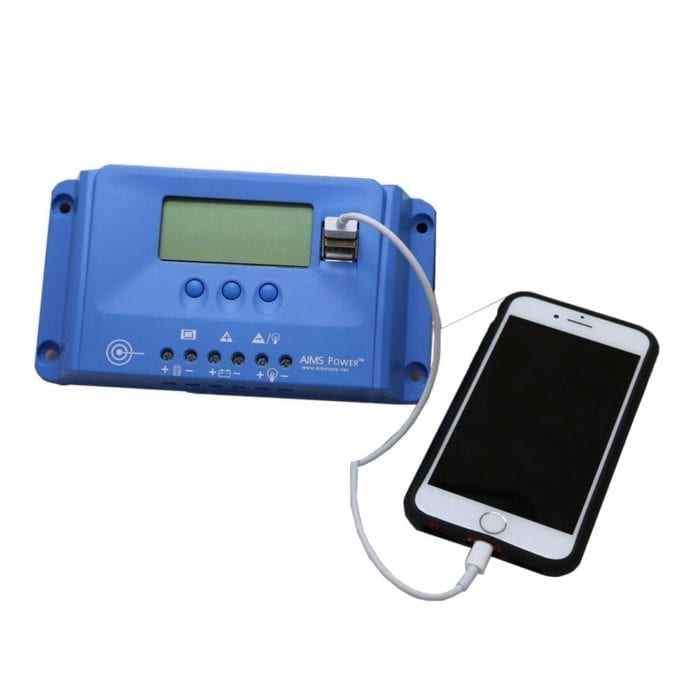

Charge Controller

  • Uses the latest PWM charging technology and state of charge monitoring, adjusts charging based on battery voltage prolonging overall battery life
  • LCD displays key information such as battery voltage, solar panel voltage, solar panel charging current and load discharging current.
  • PV input, battery output and load control ports
  • Industrial grade case
  • Extremely east to set up
  • Dual USB outlets
  • 4 Pre-drilled holes for easy mounting
  • CE, ETL to UL1741 and RoHS compliant
  • 2 Year warranty

***NOTE***If you are going to install the charge controller >6ft from the solar panel you must purchase an extension cable set. We offer 15ft and 30ft sets. If your application only requires up to 76″, simply cut of the MC4 connectors and insert the cut wire into the bottom of the charge controller and you are ready to harvest solar power.

For a complete off grid kit including batteries and a power inverter, chose from the drop down menu.

Video

Description

60 Watt Flexible Bendable Slim Solar Panel & 10 AMP Charge Controller Kit

Specifications: 60 Watt Flexible Bendable Slim Solar Panel

Solar Panel
High performance: light transmittance up to 93%
Cell Efficiency: 22.3% (one of the highest)
Module Efficiency: 19.6% (one of the highest)
Maximum Power: 60W
Tolerance Wattage (e.g. +/- 5%): +/- 5%
Maximum System Voltage: 600V DC (UL)
Optimum Operating Voltage (Vmp): 17.5 V
Optimum Operating Current (Imp): 3.4 A
Open-Circuit Voltage (Voc): 21 V
Short-Circuit Current (Isc): 3.8 A
Power Tolerance: 0=+5W
Maximum Fuse Rating: 10 A
Fire Safety Class: Class A
Junction Box: IP 67 rated
Temperature Range: -40⁰F to 185⁰F
Bendable degree 30⁰ to 60⁰
Number of cells: 4 x 16
PV Wire: 10 AWG with MC 4 male and female connectors 76″ length – ***NOTE***If you are going to install the charge controller >6ft from the solar panel you must purchase an extension cable set. We offer 15ft and 30ft sets. If your application only requires up to 76″, simply cut of the MC4 connectors and insert the cut wire into the bottom of the charge controller and you are ready to harvest solar power.
Temperature Coefficients ⁰C:
ISC(%): +2.6
Voc(%): -50.6
Prm(%): -.38
Im(%): +2.2
Vm(%): -60.8
Dimensions: 28.5 X 21 X 0.12 inches
Weight: 1.98 lbs
Certifications: CE, ETL, TUV and RoHS

Warranty: 5 year manufacturer, 10 years 80% output

CLICK HERE FOR MORE SOLAR PANEL INFO

Charge Controller

Rated current: 10A
• DC voltage: 12/24V
• Max output: 120 watts @12V and 240 watts @24V
• Max solar voltage: <50V
• Low voltage disconnect: 10.7/21.4V
• Low voltage reconnect: 12.5/25.2V
• Float charge: 13.7/27.4V
• Bulk charge: 14.2V
• Self consumption: .5 watts
• Efficiency: 99%
• Case: ABS & aluminum. Dissipates heat.
• USB: Dual 5V/2A
• Temp compensation: -4mV/Cell/C
• Operating temp: -13F to 140F
• Reverse polarity, short circuit, over voltage and over discharge protections
• Automatic load reconnection and voltage detection
• 3 stage charging: deep cycle, sealed, Gel, AGM, flooded and Lithium
• LCD display – adjustable settings
• 12 AWG Wire recommended

CLICK HERE FOR MORE CHARGE CONTROLLER INFO

CLICK HERE FOR BATTERY INFO

CLICK HERE FOR INVERTER INFO

Please Contact Us Today!

60 Watt Flexible Bendable Slim Solar Panel & 10 AMP Charge Controller Kit

Additional information

Weight 5 lbs
