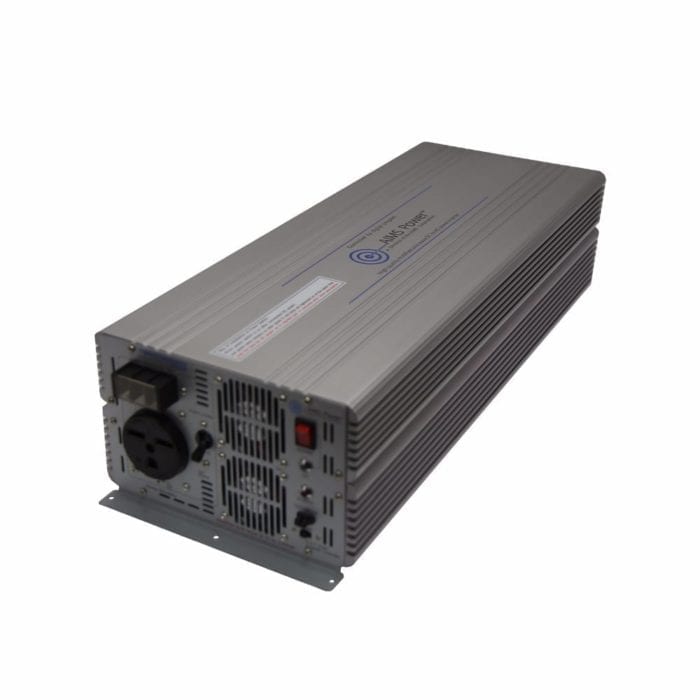

The AIMS Power 7000 watt Industrial Grade power inverter accepts a 48 volt input and produces 240vac of modified sine wave AC power. With the AIMS industrial grade line, you get a commercial grade inverter that is a true work horse. The 240vac output is a great option for an off grid well pump, large 240vac air compressor, or an electric motor. However, keep in mind that this inverter is not “split phase”; you will not be able to pull one leg of 120 volts off of it.

This inverter also has a selectable frequency switch making it ideal for European and African applications where 50Hz power is needed. The inverter can easily be changed from a North American output (60 Hz) to a European/African ouptut (50 Hz) with the flip of a simple switch. With the 48 volts DC input, you can run smaller cable and multiple batteries for this heavy duty inverter. The 220 volts AC can provide a small house with power over seas when the utility power is out or unavailable.

Although this inverter has similar features to that of its standard grade counter parts, it does boast some industry leading features. First, it offers a power surge capability of 14,000 watts for 9 full seconds. That in itself sets this inverter apart from the rest; standard inverters can only sustain their surge power ratings for less than a second. This is a huge advantage with loads that require a large in rush current; for example, air conditioners and compressors can have an in rush rate of 4-5 times their normal running amps or watts.

Next is the heat tolerance; standard inverters typically have thermal shut down protection around 110 to 120 degrees Fahrenheit, whereas the AIMS industrial inverters can handle up 165 degrees Fahrenheit. Allowing this inverter to be used is extreme heat locations, or under intense loads without disruption. In addition to the features mentioned above, this inverter offers a direct wire terminal block. The direct wire will allow you to pull the full 7,000 watts from this inverter; whereas the standard universal outlet is only capable of about 1500 watts.

From mobile businesses and construction sites to off grid cabins and remote power stations, the AIMS Power 7000 watt industrial grade power inverter is a great choice. The quality, durability, and peace of mind that goes with this inverter will take the worry and guess work out of your mobile power needs.

If you need a 24 Volt DC input, this model is also available from AIMS: 7000 Watt Power Inverter 24Vdc to 240Vac Industrial Grade


  • 7000 Watt max continuous power
  • 14,000 Watt surge
  • Modified sine wave
  • Select-able frequency switch for choosing 50Hz or 60Hz output
  • Power switch LED is also a self test light – green
  • Overload fail LED – red
  • Over temperature LED indicator
  • Over load LED indicator
  • 1 ac receptacle 240 V
  • Direct connect terminal block for full load applications
  • On/off switch
  • Over temperature protection
  • Over load protection
  • Thermally controlled fan
  • DC volt meter – input meter
  • Percent load usage LED bar
  • 2 externally located re-settable circuit breakers (90amp)
  • ac output short circuit protection
  • Aluminum case for optimal cooling
  • Pre-wired for remote on/off switch
  • Pre-slotted mounting plate
  • Instruction manual
  • Free 1 year tech support
  • 1 Year warranty parts and labor




  • Continuous output power: 7000 Watt
  • Surge power capability (peak power): 14,000 Watt. The surge duration is electronically controlled and permits up to 9 seconds while the output is between 7000 and 14,000 watts. During this time the buzzer will sound until the inverter electronically shuts down.
  • DC input / operating voltage: 42-60 Volts
  • Output voltage: 240 Volts ac +/- 10%
  • Output wave form: modified sine wave with phase correction
  • Output frequency: 60 Hz +/- 1 Hz or 50 Hz +/- 1 Hz
  • Battery low voltage alarm: 42 +/- 0.5 Volts
  • Battery low voltage shutdown: 41.5 +/- 0.5 Volts
  • High input voltage protection 60 +/-0.5 volts
  • No load current: 0.18 A (fan off) 0.66 (fan on)
  • Start up AC amps: 58
  • Continuous AC amps: 29
  • Full load efficiency: 90%
  • Auto cooling fan start at 107 degrees F
  • Full load maximum operating temperature: 154 degree F
  • AC output socket type: single type 240 volt plug
  • Internal fuse protection
  • Includes DC volt meter


  • Unit weight: 26.6 lbs.
  • Unit size L x W x H: 25.98 x 9.05 x 5.11 inches
  • Shipping weight: 32 lbs.
  • Shipping size L x W x H: 27 3/4 x 13 3/4 x 9 1/2 inches

Product Manual AIMS Power 7000 Watt 48 volt Power Inverter – PWRIG700024048

Note: This is not a Split Phase Inverter. This is strictly a single phase 240 Volt Output. Cannot be ran in phase to produce two legs of 120 Volt.

Additional information

Weight 27 lbs
