3000W Split Phase Pure Sine LF Inverter Charger 300% Surge with 30 & 50 Amp Transfer Switch ETL listed for RVs, Home Backup, and Cabins

Original price was: $1,565.00.Current price is: $1,406.00.

Overview

Run demanding tools and electronics anywhere with a rugged 3000W, 25A pure sine inverter charger delivering seamless backup power.

The AIMS Power 3000 Watt Pure Sine Inverter Charger combines an inverter, battery charger, and automatic 30A or 50A transfer switch into one heavy duty system designed for reliable off-grid or backup power. Built with a low frequency transformer design and engineered for high surge capability, it provides stable power for sensitive electronics while also supporting demanding inductive loads such as motors and tools.

This ETL listed inverter charger (UL 458) delivers up to 3000 watts continuous power with a 9000 watt surge for 20 seconds, making it ideal for RVs, food trucks, work trucks, boats, and house backup with the 50A transfer. With 92% peak conversion efficiency and a sophisticated multi-stage charging system capable of 100 amps, the unit helps keep batteries charged while reducing unnecessary AC energy draw.

Designed for both the Do It Yourselfer and professional installers, this system simplifies mobile and backup power by combining critical components into one rugged device. Conformal coated for high humidity environments.

Users: Pure sine output safely powers electronics, while the 3-in-1 design powers larger appliances, tools, and onboard systems reliably. Supports multiple appliances at the same time.

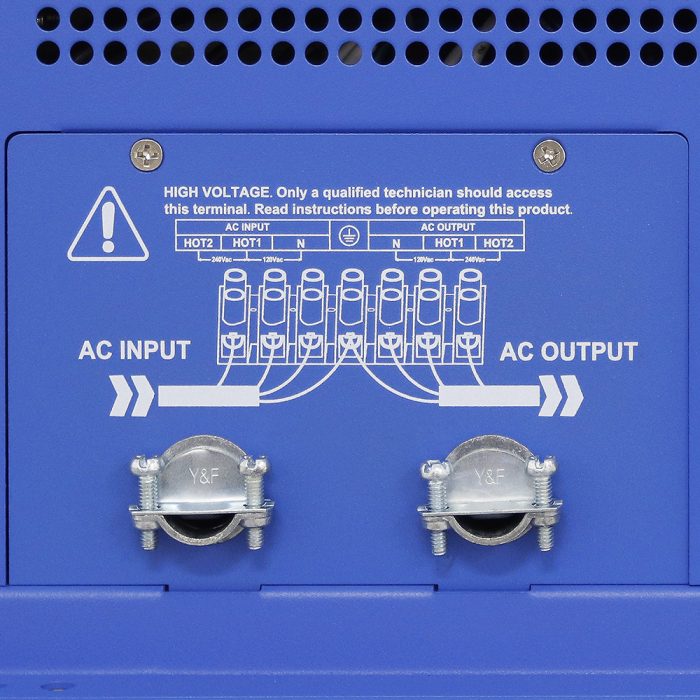

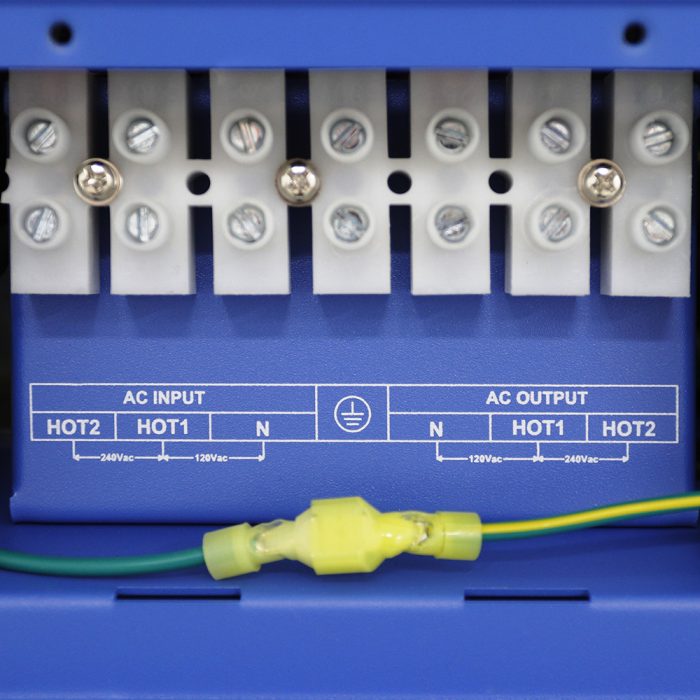

Installers: AC direct connect terminal block, 120/240V, 30A/50A transfer capability, and DIP switch battery priority configuration simplify integration into RV or off-grid systems.



Why AIMS Power?

For nearly three decades, customers have trusted AIMS Power for dependable power conversion solutions designed for real-world environments. Products are engineered for durability and long service life with robust internal components, conformal-coated protection, and advanced power management features. Backed by a 3-year warranty and lifetime technical support, AIMS Power products are built to deliver long term reliability installers and users can depend on.

Features

Features:

  • Heavy duty 3-in-1 Power System: Combines a pure sine inverter, 100A battery charger, and a 50A automatic transfer switch into one integrated unit for simplified power management.
  • Extreme Surge Capability: Delivers 3x surge power (9000W) for up to 20 seconds, allowing reliable startup of motors, compressors, and heavy electrical loads.
  • Advanced Multi-Stage Smart Charging: Power factor corrected charging delivers up to 100 amps at 12V, using 20–30% less AC energy than standard chargers while helping prevent breaker trips or generator overload.
  • Broad Battery Compatibility: Supports seven battery charging profiles including lithium. Enabling flexible use for RV, van, bus and renewable energy systems.
  • Flexible Power Priority Control: Battery priority and AC priority modes allow the inverter to work in backup power systems or renewable energy setups with minimal battery cycling.
  • Flexible Remote Operation: Optional wired LCD remote or Bluetooth dongle allows convenient monitoring when the inverter is mounted in hard‑to‑reach locations.
  • Smart System Integration: Features auto generator start compatibility, automatic frequency detection, battery temperature sensing, and fast 10ms transfer time for seamless power switching.

Video Spanish

Video

Description

INVERTER OUTPUT Continuous Output Power 3000 Watts / 3KW
Surge Rating (20 secs) 9000 Watts / 9KW
Starting Electric Motor (HP) 3 HP
Output Waveform Pure Sine
Nominal Efficiency >92% (Peak)
Line Mode Efficiency >95%
Power Factor .9 – 1
Nominal Output Voltage (rms) 120Vac
Output Voltage Regulation ± 10% RMS
Output Frequency 50/60 Hz ±0.3Hz
Short Circuit Protection YES. Current Limit Function (fault after 1 sec)
Typical Transfer Time 10ms (MAX)
Max THD @ Full Linear Load <20%
DC INPUT Nominal Input Voltage 12 Vdc
Minimum Start Voltage 10Vdc
Low Battery Alarm 10.5Vdc / 11.Vdc
Low Battery Trip 10Vdc / 10.5Vdc
High Voltage Alarm & Fault 16Vdc
High DC Input Recovery 15.5Vdc
Low Battery Voltage Recover 13Vdc
Sleep Mode Threshold >50 Watts (Power Saven On)
CHARGE Input Voltage Range Narrow: 100-135Vac Wide: 90-135Vac
Input Frequency Range Narrow: 47-55 ±0.3Hz @ 50Hz, 57-65 ±0.3Hz @ 60Hz
Output Voltage Depends on battery type
Charger Breaker Rating (120 Vac) 30A
Max Charge Rate 100A
Over Charge Protection Shutdown 15.7V
Battery Type Fast Vdc        Float Vdc
Gel USA 14           13.7
AGM 1 14.1        13.4
AGM 2 14.6        13.7
Sealed Lead Acid 14.4        13.6
Gel Euro 14.4        13.8
Open Lead Acid 14.8        13.3
Lithium 14.4 (NOTE: INVERTER MAY SAY CALCIUM BUT CHARGING ALGORITHM BUILT INTO THE INVERTER IS FOR LITHIUM)
De-sulphation 15.5 for 4 hours
Battery Temp Sensor YES. Part # PICGLFBATS
BYPASS & PROTECTION Input Voltage Waveform Pure sine from grid or generator
Nominal Votage 120Vac
Low Voltage Trip 80V/100V ±4%
Low Voltage Re-engage 90V/100V ±4%
High Voltage Trip 140V ±4%
High Voltage Re-engage 135V ±4%
Max Input AC Voltage 150Vac
Nominal Input Frequency 50Hz or 60Hz (auto detect)
Low Freq Trip Narrow: 47 ±0.3Hz @ 50Hz, 57 ±0.3Hz @ 60Hz                                 Wide: 40 ±0.3Hz for 50/60Hz
Low Freq Re-engage Narrow: 48 ±0.3Hz @ 50Hz, 58 ±0.3Hz @ 60Hz                                  Wide: 45 ±0.3Hz for 50/60Hz
High Freq Trip Narrow: 55 ±0.3Hz @ 50Hz, 65 ±0.3Hz @ 60Hz                                  Wide: No limit for 50/60Hz
High Freq Re-engage Narrow: 54 ±0.3Hz @ 50Hz, 64 ±0.3Hz @ 60Hz                                 Wide: No limit for 50/60Hz
Output Short Cirucit Protection Circuit Breaker
Bypass Breaker Rating (120 Vac) 50A
Bypass Breaker Rating (240 Vac) 50A
GFCI Rating 20A
MECHANICAL Mounting Predrilled holes for wall/ground
Dimensions 16.25″L x 11″W x 7″H
Weight 60 lb
Shipping Dimensions 18.375″L x 14″W x 12″H
Shipping Weight 65 lb
Displays Status LEDs/Optional LCD Remote
Warranty 3 Year



Users Manual:   Click Here

Additional information

Weight 67 lbs
AC Charger Amps

100A

AC Output Voltage

120 VAC

Battery Wake Up

Yes

Bluetooth

Yes, w/optional dongle BT-AIMS-PRO

Charges Battery Types:

AGM, GEL, Lithium, Lead, User Defined

Hardwire Terminal Block

Yes

Inverter AC Input Voltage

120V AC

Inverter DC Input Voltage

12 VDC

Inverter Output Amps

25 A

Inverter Output Type

Pure Sine Inverter Charger + Transfer Low Frequency

Inverter Output Continuous Watts | Surge Watts

3000W | 9000W

Number of Outlets

2 Outlets GFCI

Powers Common Devices

Compressors, Pumps, Motors, Mid Size Appliances, Variable Speed Motors, Pumps, Mid Size Equipment Light Duty, Non-Sensitive Equipment, Small Devices Light Duty, Small Sensitive Electronics, Small to Mid Variable Speed Motors / Sensitive Electronics

Remote Option

Bluetooth Dongle BT-AIMS-PRO, Ignition Switch REMLFLCDIGN, LCD & On/Off REMOTELF

Third Party Certification

Yes

Transfer switch

Yes – 50 Amp

Warranty

3 Year
