720 WATT SOLAR WITH 4000 WATT PURE SINE POWER INVERTER CHARGER 120/240 VAC KIT 48V OFF GRID | BACK UP 48VDC

$5,499.00

720 Watt Solar. 4000 Watt inverter charger provides 120 & 240 Vac 48VDC power. 200 amps of battery power and 40 amp charger controller. Ideal for large devices such as appliances, fans, pumps, compressors, electronics up to 33.3 amps. Perfect for locations that have access to a generator or shore power if available to recharge batteries using the inverter. Solar panels keep a charge on the batteries using sunlight and will recharge the batteries at 50% depletion in < 7 hours in full sun. EVERYTHING YOU NEED TO BE OFF GRID OR FOR AUTOMATIC BACK UP.

Add Remote

Add Ground Mount Solar Rack

Add Battery Cabinet – Prewired Heavy Duty

Upgrade to Lithium Battery

Use half the batteries, no memory problems, >8x more cycles and 1/2 the weight compared to other battery technologies.

Pay Over Time


Overview

Free shipping in the 48 states. AIMS Power introduces the new all-in-one solar kit for all of your off grid power needs. Whether you’re supplying power to an off-grid home/cabin or looking for a back-up power source for a small business , this solar kit includes all necessary products required bundled for your convenience.  The 720 watt solar kit includes an pure sine inverter charger that has a built in battery charger to recharge the batteries when 240 Vac city or generator power is available.  The 4000 watt pure sine inverter charger can power 110/120 and 220/230/240 Volt appliances, electronics, tools and pumps. The panels are covered in tempered glass to protect from hazardous weather. The PV wiring is protected against UV, water, ozone, fluids, oil, salt and general weathering. The 12 Volt 200 amp AGM deep cycle batteries provide quality power.  Each system comes with a wiring diagram upon purchase.

Features

Features:

  • Easy to connect and use
  • Works with devices up to 4000 watts/ 33.3 AC amps 110/120VAC or 16.6 amps 240VAC
  • Ideal for any equipment that needs off grid power
  • Perfect for a small home, cabin or business.

*The solar panel array will recharge a 50% depleted 800 amp battery bank  in under 7 hours with full sunlight.*

Description

720 WATT SOLAR WITH 4000 WATT PURE SINE POWER INVERTER CHARGER 120/240 VAC KIT OFF GRID 48VDC

You can find the specifications for each product by clicking on the links below.

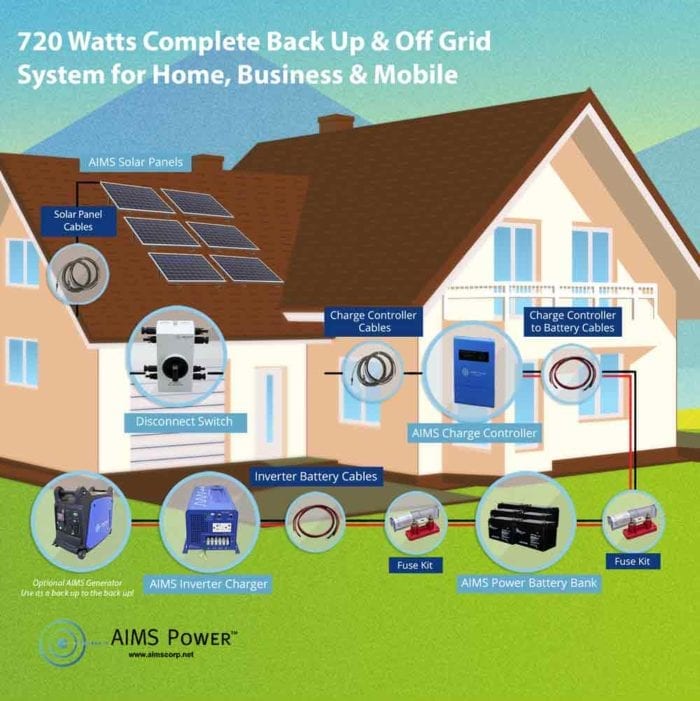

This solar kit includes:

    • PICOGLF40W48V240VS – 4000 watt pure sine inverter charger 120 & 240 VAC 48VDC – runs cooler and efficient

Click here for more inverter info

    • PV120MONO – qty 6 – 120 watt solar panels @40 SQ FT

Click here for more panel info

    • DC1600V32A2I0 – disconnect switch

Click here for more disconnect switch info

    • SCC40MPPT – 40 amp MPPT solar charge controller

Click here for more charge controller info

    • AGM12V200A – qty 4 – 200 ah AGM deep cycle battery

Click here for more battery info

  • PVF100FT10AWG – 100 foot PV wire for solar panel to disconnect switch (female)
  • PVM100FT10AWG – 100 foot PV wire for solar panel to disconnect switch (male)
  • PV-F15 – Solar inline fuse 15 amp
  • PVF20FT10AWG – male and female for disconnect switch to charge controller
  • PICGLFBATS – Battery temperature sensor
  • CBL08FT6AWGC- 8 ft set of 6 AWG cable to connect charge controller to battery bank
  • ANL50KITJ – 50 amp fuse kit for charge controller to battery bank
  • CBL08FT4AWG – 8 ft set of 4 AWG cable set battery bank to inverter
  • ANL150KITWJUMP – 150 amp inline fuse kit with jumper for batteries to inverter
  • 3 jumpers for series battery connection 4 AWG

Upgrade to Lithium battery 48V. Much longer over battery life. Click for info here

720 WATT SOLAR 4000 WATT PURE SINE POWER INVERTER CHARGER 120/240 VAC KIT OFF GRID 48VDC

Additional information

Weight 350 lbs
