760 WATT SOLAR WITH 4000 WATT PURE SINE POWER INVERTER CHARGER 120/240 VAC KIT OFF GRID | BACK UP 12VDC

$6,044.00

760 Watt Solar 4 panels. 4000 Watt inverter charger provides 120 & 240 Vac 12VDC power. 600 amps of battery power and 60 amp charger controller. Ideal for large  devices such as appliances, fans, pumps, compressors, electronics up to 33.3 amps. Perfect for locations that have access to a generator or shore power if available to recharge batteries using the inverter. Solar panels keep a charge on the batteries using sunlight and will recharge the batteries at 50% depletion in < 6 hours in full sun. EVERYTHING YOU NEED TO BE OFF GRID OR FOR AUTOMATIC BACK UP.

div#bread_checkout_button { background: #000; padding: 13px; background: #1c8195; border-radius: 24px; text-align: center; }


Add Remote

Add Ground Mount Solar Rack

Upgrade to Lithium Batteries

Use half the batteries, no memory problems, >8x more cycles and 1/2 the weight compared to other battery technologies.

Description

760 WATT SOLAR WITH 4000 WATT PURE SINE POWER INVERTER CHARGER 120/240 VAC KIT OFF GRID

You can find the specifications for each product by clicking on the links below.

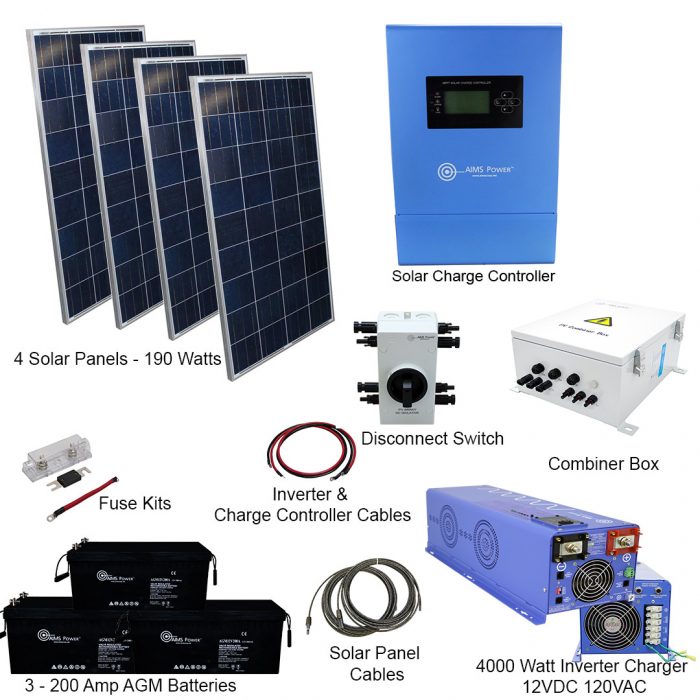

This solar kit includes:

    • PICOGLF40W12V240VS – 4000 watt pure sine inverter charger 120 & 240 VAC

Click here for more inverter info

    • PV190mono- qty 4 – 190 watt solar panels @ 42 SQ FT

Click here for more panel info

    • DC1600V32A2I0 – disconnect switch

Click here for more disconnect switch info

    • COM3IN60A – Pre-wire solar array combiner box

Click here for more combiner box info

    • SCC60MPPT – 60 amp MPPT solar charge controller

Click here for more charge controller info

    • AGM12V200A – qty 3 – 200 ah AGM deep cycle battery

Click here for more battery info

  • PVF100FT10AWG – 100 foot PV wire for solar panel to disconnect switch (female)
  • PVM100FT10AWG – 100 foot PV wire for solar panel to disconnect switch (male)
  • PVF20FT10AWG – male and female panels to combiner box, combiner box to disconnect and disconnect switch to charge controller
  • PICGLFBATS – Battery temperature sensor
  • CBL06FT8AWGC- 8 ft set of 6 AWG cable to connect charge controller to battery bank
  • ANL80KITJ – 80 amp fuse kit for charge controller to battery bank
  • CBL06FT4/0 – 6 ft set of 4/0 AWG cable set battery bank to inverter
  • CBL02FT4/0 – qty 2 – 2 ft set of 4/0 cable (battery cables for parallel connection)
  • ANL500KITWJUMP – 500 amp inline fuse kit with jumper for batteries to inverter

Lithium battery info click here

760 WATT SOLAR 4000 WATT PURE SINE POWER INVERTER CHARGER 120/240 VAC KIT OFF GRID

Additional information

Weight 500 lbs
