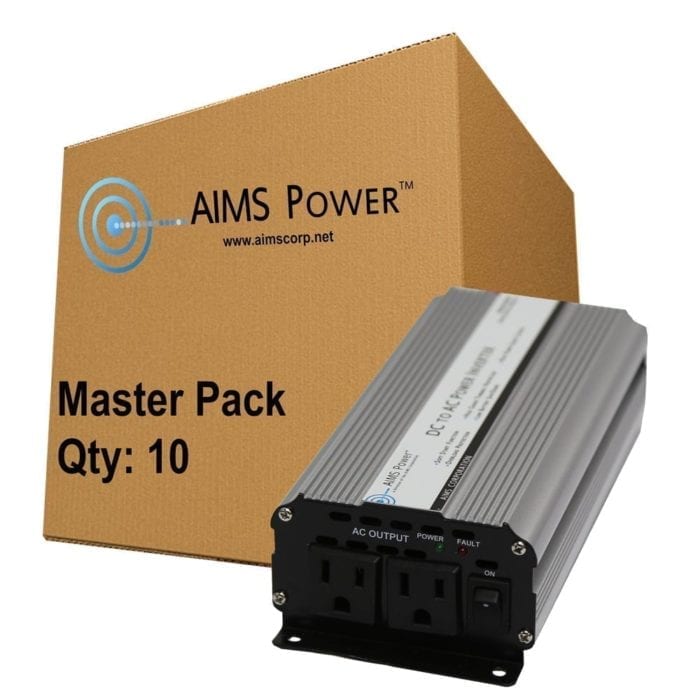

800 WATT POWER INVERTER 12 VDC TO 120 VAC WITH CABLES MASTERPACK QTY 10

$890.00 $690.00

Pay Over Time

Overview

The AIMS 800 watt DC to AC power inverter accepts 12VDC and boasts a compact lightweight design. Whether you need mobile power to make some coffee while camping or to power a small refrigerator in your RV, this AIMS 800 Watt inverter will work great. For over a decade, AIMS Power has offered this very reliable car power inverter.

In addition, this inverter boasts a single thermally controlled cooling fan. Not only does that save battery power, but it also makes the unit silent since the fan does not run constantly.

AIMS Power has also included the cables; keep in mind that this power inverter can be used on a cigarette lighter port (cigarette lighter cable not included only the direct connect cable is included), but you will be limited to about 120-180 watts depending on your car. The inverter will only perform at its full potential when connected directly to a battery in your car, boat, or RV. The 800 Watt inverter is one of many choices available, so please contact us for any of your power inverter needs.

Features

Features:

  • 800 Watt continuous power
  • Modified sine wave

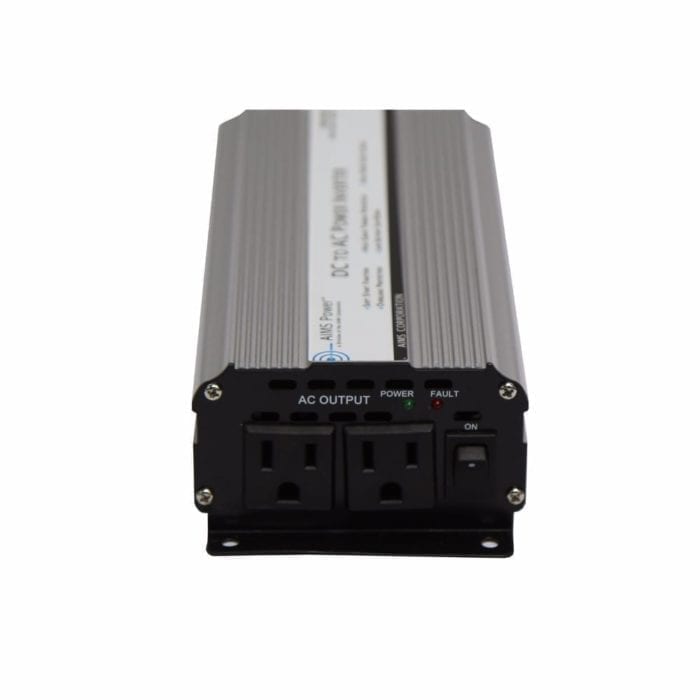

  • LED: green power on and red heavy load/fault condition
  • On/off switch
  • Overtemperature protection
  • Overload protection
  • Convenient cooling fan operation
  • Included pre-lugged direct connect to the battery cable for permanent installation. 40″ 8awg.
  • Internally fuse protected
  • AC output short circuit protection
  • Aluminum case for optimal cooling
  • Pre-slotted mounting plate
  • Isolated ground neutral
  • Instruction manual
  • Free 1 year tech support
  • 1 Year warranty parts and labor

Product Manual AIMS Power 800 Watt Power Inverter РPWRINV800W

Description

Specifications: MASTERPACK QUANTITY 10 PIECES

  • Continuous output power: 800 Watt
  • Surge power capability (peak power): 1600 Watt not meant for startup applications
  • Short circuit protection
  • DC input / operating voltage: 10 to 15 volts
  • Output voltage: 120 volts AC
  • Output wave form: modified sine wave
  • Output frequency: 60 Hz
  • Battery low voltage alarm: 10.5 +/- 0.5 volts
  • Battery low voltage shutdown: 10.0 +/- 0.5 volts
  • No load current @ 12V: < 0.7 DC amps
  • Full load efficiency: 90%
  • 1/3 load efficiency: 95%
  • No load minimum operating temperature: -15 degrees Celsius
  • Full load maximum operating temperature: 55 +/- 5 degrees Celsius (automatic shutdown)
  • AC output socket type: dual type 2 -3 prong
  • High input voltage protection: 15.5V
  • Low input voltage shutdown: 10.5V
  • Internal fuse protection

Dimensions:

  • Unit weight: 2 lbs.
  • Unit size L x W x H: 9 x 3 3/4 x 2.2 inches
  • Shipping weight: 3 lbs.
  • Shipping size L x W x H: 14 x 6 x 4 inches

Product Manual AIMS Power 800 Watt Power Inverter – PWRINV800W

Additional information

Weight 22 lbs
