8000 WATT MODIFIED SINE INVERTER 12 VDC TO 120 VAC

$804.00

div#bread_checkout_button { background: #000; padding: 13px; background: #1c8195; border-radius: 24px; text-align: center; }

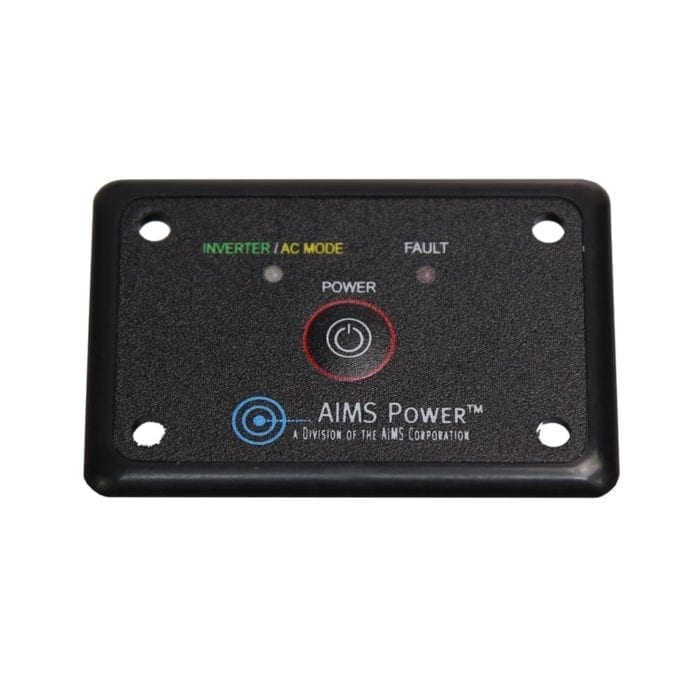

Add Remote

Add Cables

Add Fuse Kit

Overview

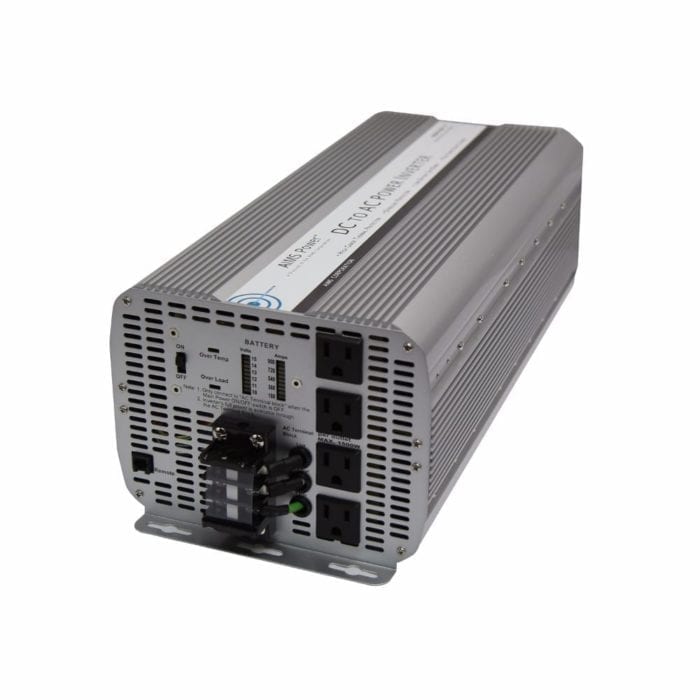

This is the new, 8000 Watt modified sine wave inverter. Smaller, lighter, more efficient and longer lasting than its predecessor. This unit has a 16000 Watt surge for 40ms for your high startup quick-surge applications. This unit is space saving and beating out the competitions 8000 Watt 12 volt units. You can use less cabling, fit it in more mobile applications when you need a lot more power for saws, drills, compressors and other power tools. Use it in your camper, toy hauler, or RV when you’re boon docking or dry camping. This is like having a mobile power station in your home, boat, work truck or van and more.

Features

Features:

  • 8000 Watt max continuous power
  • Modified sine wave

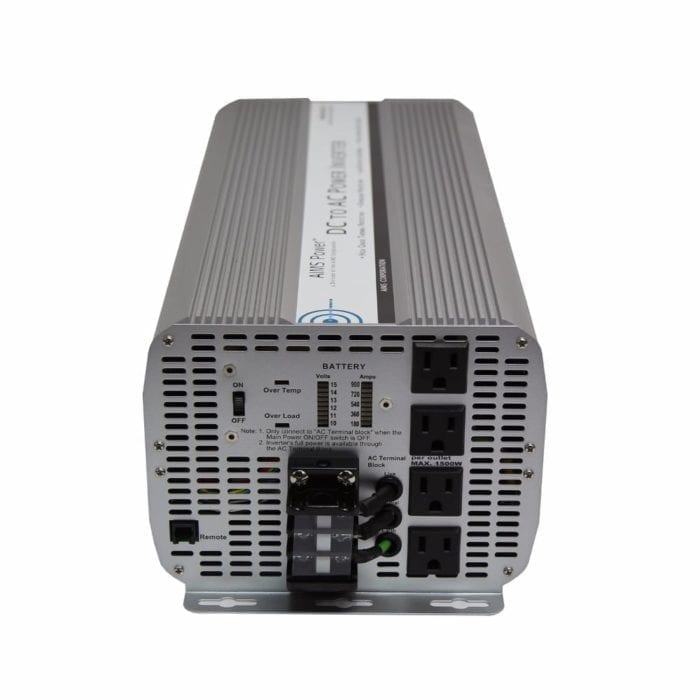

  • Volt meter on front panel to monitor your battery voltage
  • Amp meter on front panel to monitor your current use (rate at which battery is drained)
  • AC direct connect terminal
  • Overtemperature LED indicator
  • Overload LED indicator
  • 3 universal AC receptacles
  • On/off switch
  • Overtemperature protection
  • Overload protection
  • Single cooling fan operation thermally controlled
  • Internally fuse protected
  • Auto reset on most fault conditions
  • Aluminum case for optimal cooling
  • Pre-wired for remote on/off switch
  • Pre-slotted mounting plate
  • Instruction manual
  • Free 1 year tech support
  • 1 Year warranty parts and labor

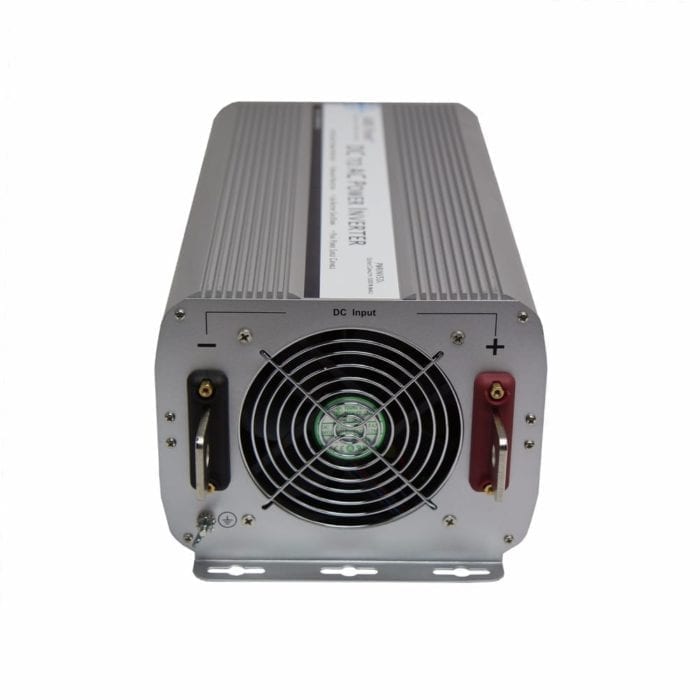

**THIS INVERTER REQUIRES TWO SETS OF 4/0 CABLE ( TOTAL OF 2 NEGATIVE AND 2 POSITIVE)**

Video

Description

8000 WATT MODIFIED SINE INVERTER 12 VDC TO 120 VAC

Specifications: 8000 WATT MODIFIED SINE INVERTER

  • Continuous output power: 8000 Watt
  • Surge power capability (peak power): 16,000 Watt
  • DC input / operating voltage: 10 to 16 volts · Output voltage: 120 volts AC +/- 10%
  • Output wave form: modified sine wave with phase correction
  • Output frequency: 60 Hz +/- 1 Hz
  • Battery low voltage alarm: 10.5 +/- 0.5 V
  • Battery low voltage shutdown: 10.0 +/- 0.5 V
  • No load current: < 1.3 DC amps
  • Full load efficiency: 90%
  • 1/3 load efficiency: 95%
  • No load minimum operating temperature: 30º F
  • Full load maximum operating temperature: 140º F
  • AC output socket type: quadruple type 2 -3 prong
  • High input voltage protection: 15V-17V
  • Low input voltage shutdown: 10V
  • Internal fuse protection

Dimensions:

  • Unit Weight: 19.8 lbs.
  • Unit Size L x W x H: 19.02 x 7.76 x 6.02 inches
  • Shipping Weight: 24 lbs.
  • Shipping L x W x H: 23 1/4 x 13 1/4 x 10 3/4 inches

**THIS INVERTER REQUIRES TWO SETS OF 4/0 CABLE ( TOTAL OF 2 NEGATIVE AND 2 POSITIVE)**

Product manual: Click here

8000 WATT MODIFIED SINE INVERTER 12 VDC TO 120 VAC

Additional information

Weight 24 lbs
