Overview
Capture more solar energy and charge battery banks efficiently with an advanced 80 Amp MPPT solar charge controller designed for demanding off-grid systems.
The AIMS Power 80 AMP MPPT Solar Charge Controller intelligently regulates power from solar panels to batteries, maximizing usable energy while protecting the entire system. Using Maximum Power Point Tracking (MPPT) technology, the controller automatically adjusts to changing sunlight and weather conditions, achieving up to 98.5% efficiency and minimizing power loss.
Designed for both professional installations and Do It Yourselfer solar systems, this controller supports 12V, 24V, 36V, and 48V battery banks and provides detailed system insight through an integrated LCD display. Users can easily monitor battery capacity, panel voltage, charge current, energy production, and load status in real time.
The metal enclosure, conformal coating, and passive heatsink cooling allow reliable operation in harsh environments while maintaining quiet performance.
Users: Monitor solar system performance with real time LCD data including battery voltage, solar production, and kWh generated.
Installers: Flexible configuration with adjustable charging parameters, RS485 monitoring capability, and support for multiple battery types including lithium.
Why AIMS Power?
For nearly three decades, AIMS Power has engineered dependable power solutions designed for demanding environments. This solar charge controller reflects that commitment with engineered electronics, passive heatsink cooling, conformal grade protection, and high efficiency MPPT technology that maximizes solar harvest while maintaining long term reliability
Backed by 2 year warranty.
Features
Features:
Maximum Solar Harvest with MPPT Technology: Advanced Maximum Power Point Tracking extracts the highest available power from the solar array, achieving up to 98.5% efficiency while minimizing energy loss.
Wide System Compatibility: Supports 12V, 24V, 36V, and 48V solar systems, allowing installers to use one controller across a variety of off-grid power configurations.

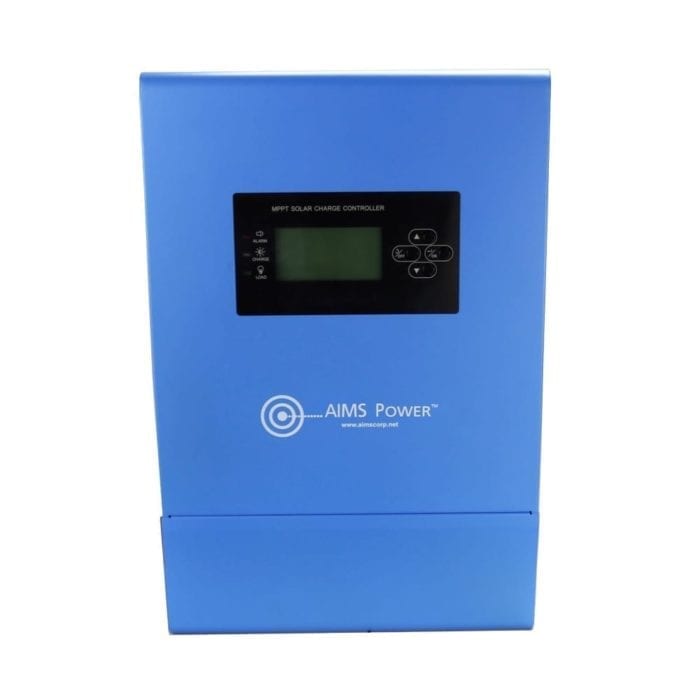

Real-Time System Monitoring: Integrated LCD screen displays battery voltage, panel voltage, solar charging current, battery capacity, load current, and kWh energy production for complete system visibility.
Flexible Charging Control: Four-stage charging (bulk, absorption, float, and equalize) with selectable battery profiles for gel, sealed, AGM, flooded, lithium, or user-defined voltage settings.
Reliable Thermal Design: Heavy duty heatsink cooling eliminates the need for fans, preventing thermal derating while maintaining quiet and efficient operation.
Built for Harsh Environments: Metal enclosure with conformal-coating, IP43 protection, and operation from -25°C to 60°C, supporting reliable use in demanding installations.
Advanced System Protection: Comprehensive electronic protection including overload, short circuit, high voltage, low voltage, and over temperature protection safeguards both batteries and connected equipment.
Description
AIMS 80 AMP Solar Charge Controller 12/24/36/48 VDC MPPT
AIMS 80 AMP Solar Charge Controller
ELECTRICAL
PV Operating Voltage:
- 15-155Vdc@12V
- 34-155Vdc@24V
- 50-155Vdc@36V
- 60-155Vdc@48V
Rated PV input:
- 12V – 1200 Watts
- 24V – 2400 watts
- 36V – 3600 watts
- 48V – 4800 watts
- Maximum charging current: 80 amps
- Maximum DC load current: 60 amps
- Max PV open circuit voltage: 155Vdc
- Self power consumption: <4 watts
- Efficiency: 98.5-99%
- Protections: overload, short circuit, high voltage, high temperature, low voltage and auto correct

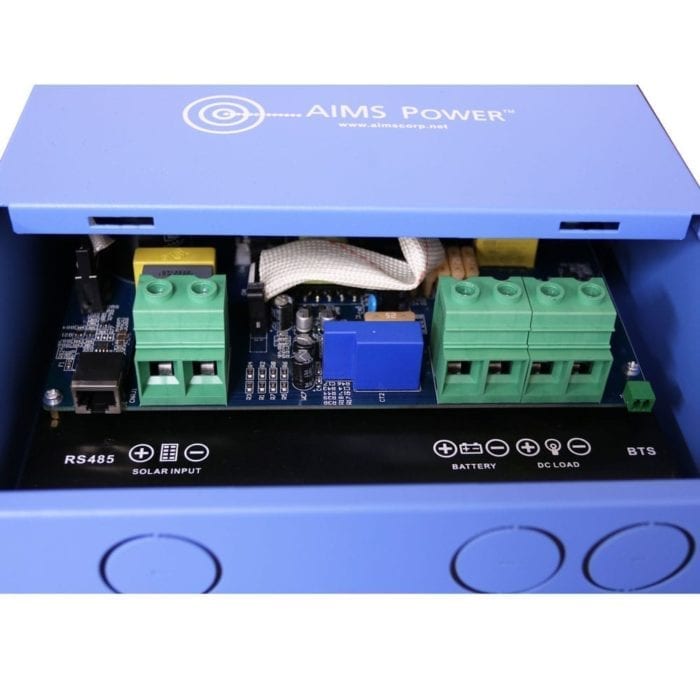

- Monitoring: RS485 port for computer monitoring
- Optimal cooling case design – built for extreme conditions
CHARGING
- Battery types: gel, sealed, AGM, flooded, lithium, user defined (adjustable voltage)
- 4 Stage charging: bulk, absorption, float and equalize
- Bulk charge voltage: sealed 14.4V, AGM/gel 14.2V, flooded 14.6V, user defined 10-15V
- Float charge voltage: sealed/AGM/gel 13.7V, flooded 13.6V, user defined 10-15V
- Equalize charge voltage: sealed 14.6V, AGM/gel 14.8V, flooded 14.8V, user defined 10-15V
- Low voltage reconnection: 12.5V
- Low voltage disconnect voltage: 10.5V (10.5-12.5V adjustable)
MECHANICAL
- Enclosure: IP43 protection, metal
- Cooling: heatsink
- Humidity: 100% non-condensing
- Temperature compensation: -5mV⁰C / 2V with BTS
- Temperature range: -25⁰C to 60⁰C or -13⁰F to 140⁰F
- Conformal coated for marine environments
- Wire knockouts: 1.25”
- Unit weight: 19 lbs
- Boxed weight: 21 lbs
- Dimensions: 14”L x 9”W x 4.7”H
- Certifications: ETL to UL1741, CE, RoHS, CETL
Protected by a 2‑year manufacturer defect warranty and lifetime tech support.
