Description

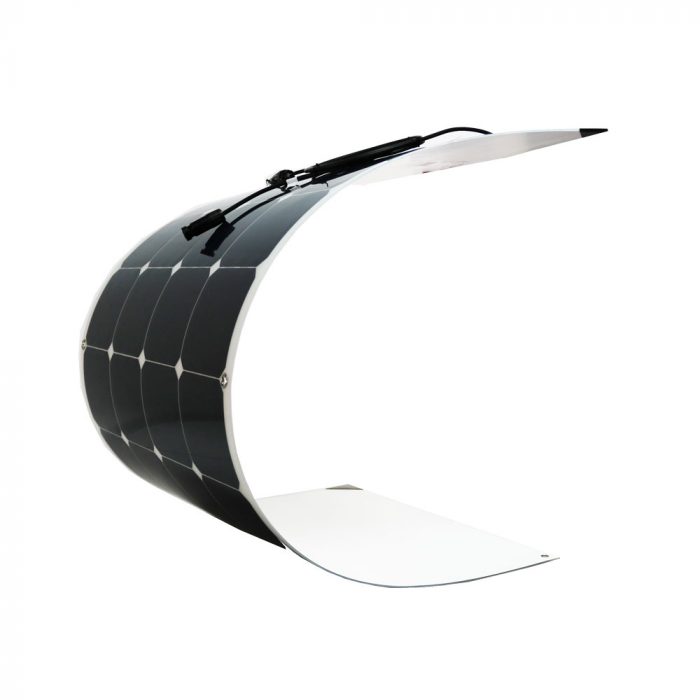

Used as a demo – 100 Watt Flexible Bendable Slim Solar Panel Monocrystalline – 5 year warranty
Specifications: 100 Watt Flexible Bendable Slim Solar Panel Monocrystalline
High performance: light transmittance up to 93%
Module Efficiency: 17.25%
Maximum Power: 100W
Tolerance Wattage (e.g. +/- 5%): +/- 5%
Maximum System Voltage: 1500V DC (IEC)
Optimum Operating Voltage (Vmp): 18 V
Optimum Operating Current (Imp): 5.56 A
Open-Circuit Voltage (Voc): 22 V
Short-Circuit Current (Isc): 5.83 A
Power Tolerance: 0=+3W
Maximum Fuse Rating: 10 A
Fire Safety Class: Class A
Junction Box: IP 67 rated
Temperature Range: -40⁰F to 185⁰F
Bendable degree 3⁰ to 90⁰
Number of cells: 4 x 10
PV Wire: 10 AWG with MC 4 male and female connectors 76″ length
Temperature Coefficients ⁰C:
ISC(%): +2.6
Voc(%): -50.6
Prm(%): -.38
Im(%): +2.2
Vm(%): -60.8
Dimensions: 38.5 X 21.25 X 0.12 inches
Weight: 6.5 lbs
Certifications: CE, ETL, TUV and RoHS
