Overview
Industrial grade 24V lithium power delivering massive 400A capacity for off-grid systems, commercial, and backup power applications.

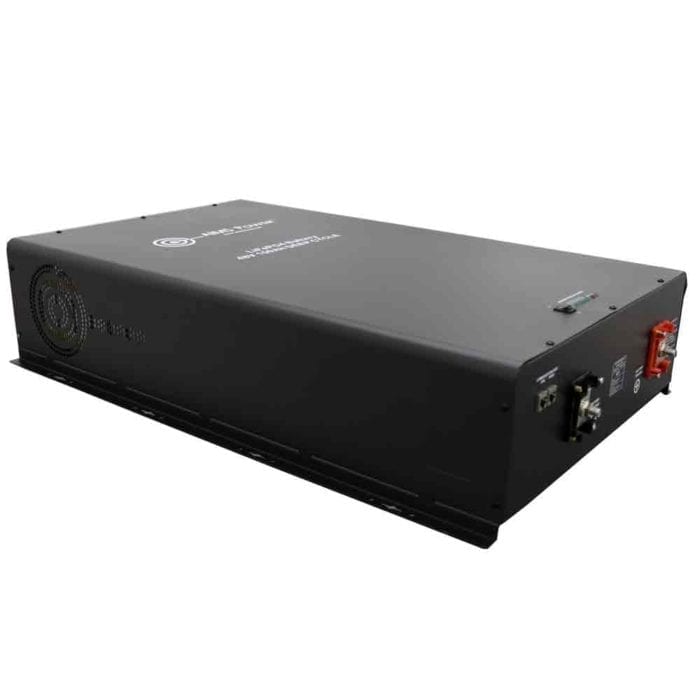

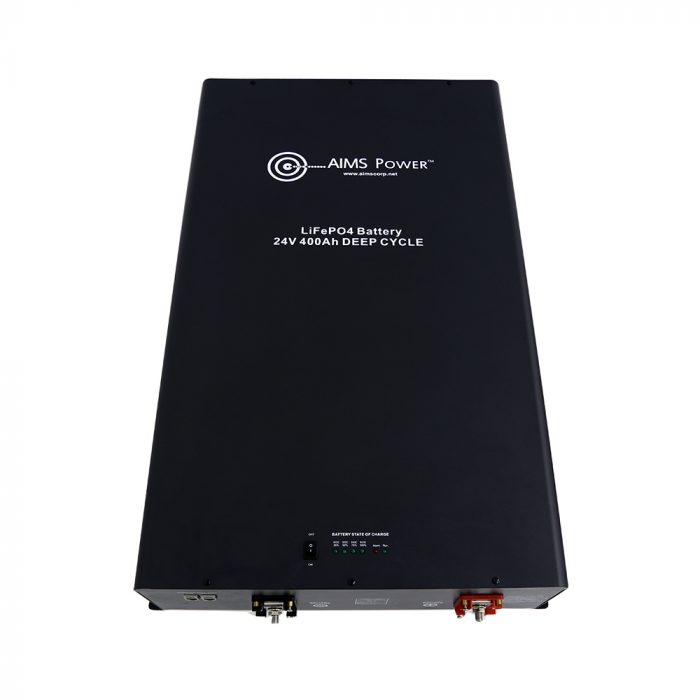

The AIMS Power 24V 400AMP LiFePO4 Industrial Grade Lithium Battery is engineered for demanding power systems that require high capacity, rugged reliability, and long service life (>5000 cycels). Designed to replace multiple batteries with a single high capacity unit, this heavy duty lithium battery delivers efficient energy storage while weighing significantly less than traditional battery technologies of equal energy storage.
Built with advanced lithium iron phosphate chemistry, the battery provides consistent output voltage, long cycle life, and dependable performance across a wide range of commercial and industrial applications. A built-in Battery Management System (BMS) protects and balances internal cells automatically, ensuring safe operation, efficient charging, and long term durability.
Backed by lifetime warranty (<3500 cycles), this high capacity battery provides dependable energy storage for installers designing reliable power systems and users demanding consistent performance.
Users:
• Delivers large 24V power capacity in a single battery, reducing system complexity while providing efficient, long lasting energy storage.
Installers:
• Integrated BMS, automatic cell balancing, and RS485/CAN communication ports simplify monitoring, system integration, and battery management. Low profile footprint.
Why AIMS Power?
AIMS Power prioritizes transparency and engineering integrity in every lithium battery it manufactures. The company ensures that published amp-hour capacity and product weight accurately reflect the materials required to achieve full performance. This commitment helps installers and users avoid misleading specifications that can result in reduced capacity or shortened battery life. Combined with advanced battery management technology and industrial-grade construction, AIMS Power batteries are built for dependable long-term operation.
Features
Features:
- Massive High Capacity Power Storage: Delivers 24V and 400 amps of lithium iron phosphate capacity, providing substantial energy storage in a single battery and reducing the need for multiple batteries.
- Industrial Grade Long Cycle Life: Provides up to 5000 cycles at 80% DoD and 6000 cycles at 60% DoD, delivering significantly longer service life compared to many other battery technologies.
- Integrated Battery Management System (BMS): The built-in BMS monitors voltage, current, and temperature to maintain cell integrity while providing protections against over charge, over discharge, short circuits, and temperature extremes.
- Advanced System Monitoring Capability: RS485 and CAN communication ports allow connection to monitoring software for system diagnostics and performance tracking.
- Rugged Reliability for Demanding Applications: Designed with automatic cell balancing, temperature protection, and multiple electrical safeguards to maintain stable operation and long term durability in demanding environments.
- Flexible System Expansion: Supports up to 10 batteries in parallel, allowing installers to scale battery capacity for larger energy storage systems.
- Backed by Lifetime Warranty: Backed by lifetime warranty (<3500 cycles) providing long-term confidence in performance and manufacturing quality.
Battery Management System: The built in BMS is a central hub inside the battery that maintains constant voltage, current and temperature. The BMS allows for maximum charging capacity for faster charging and efficient discharging. It also communicates with the desktop monitoring software via the RS485 or CAN port.
Description
- 24Volt
- Lithium Iron Phosphate – LiFePO4
- 400 amps

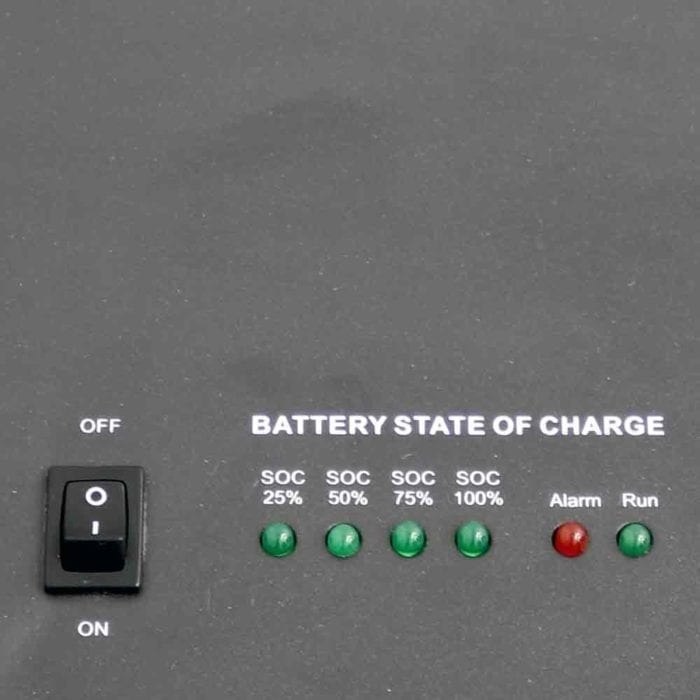

- Battery status LED State of Charge display
- On/off switch
- 3/8 terminals
- Terminal covers included
- Cables included used for parallel connecting batteries – 41″ length
- Dimensions: 32″L x 21″W x 7″H
- Shipped dimensions: 38″L x 29″W x 21 1/2″H
- Unit weight: 214 lb
- Shipped weight: 242 lb
- Lifetime <3500 cycles
| Battery Technology Specification |
| Model |
LFP24V400A |
LFP48V200A |
| Nominal Voltage |
25.6Vdc |
51.2Vdc |
| Battery Voltage |
24V |
48V |
| Battery Rated Capacity |
400Ah |
200Ah |
| Battery Rated Energy |
10.24 kWh |
10.24 kWh |
| Battery Cell Type |
Prismatic Pouch |
| Battery Cell |
3.2V 75AH |
3.2V 75AH |
| Battery Cell Configuration |
8S4P |
16S2P |
| Rated Charge Voltage |
28.0Vdc |
56.0Vdc |
| Max Charge Voltage |
28.4Vdc +/-.5V |
56.8Vdc +/-.5V |
| Overcharge Protection |
29.2Vdc +/-.5V |
58.4Vdc +/-.5V |
| Rated Charge Current |
150A |
100A |
| Peak Charge Current |
180A |
120A |
Over Charge
Protection Release |
Restart |
| Reverse Polarity Protection |
Yes |
| Battery Terminal Size |
M10 / 7/16” / 12mm |
| Self Discharge Rate |
5% per month |
| Charge Temp Range |
0~45℃ / 32~113°F |
| Output Voltage Range |
20~28Vdc |
40~56Vdc |
| Rated Discharge Current |
300A |
200A |
| Peak Discharge Current |
360A |
240A |
| Over Discharge Protection BMS Disconnect |
Charging, cut power to loads and restart |
| Discharge Temp Range
Humidity Storage
Operating Humidity |
-20~65℃ / -4°~149°F
45-75 %
5-90% |
| Communication |
RS485 / CAN for PC monitor |
| Case Material |
Metal |
Product manual click here
