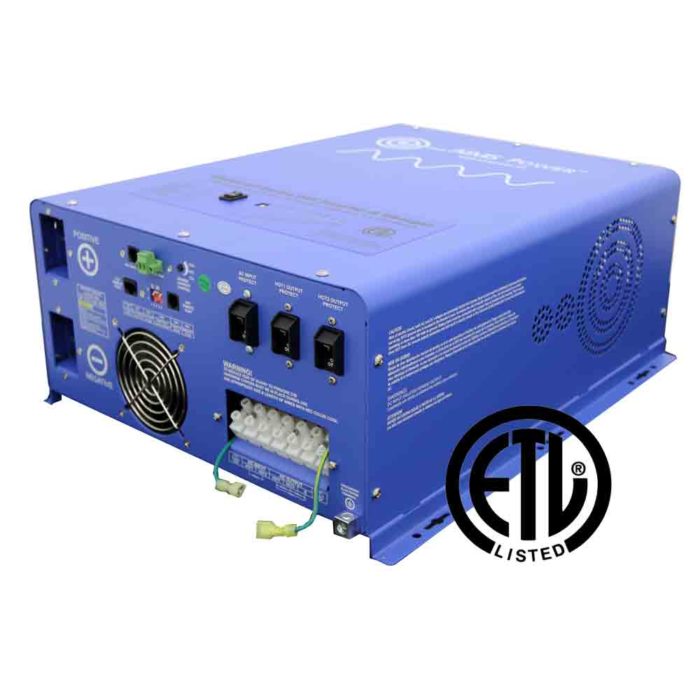

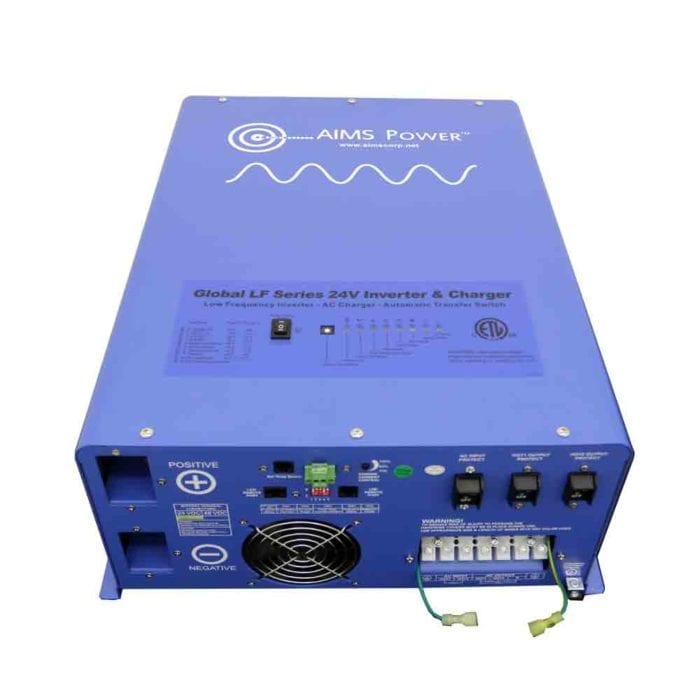

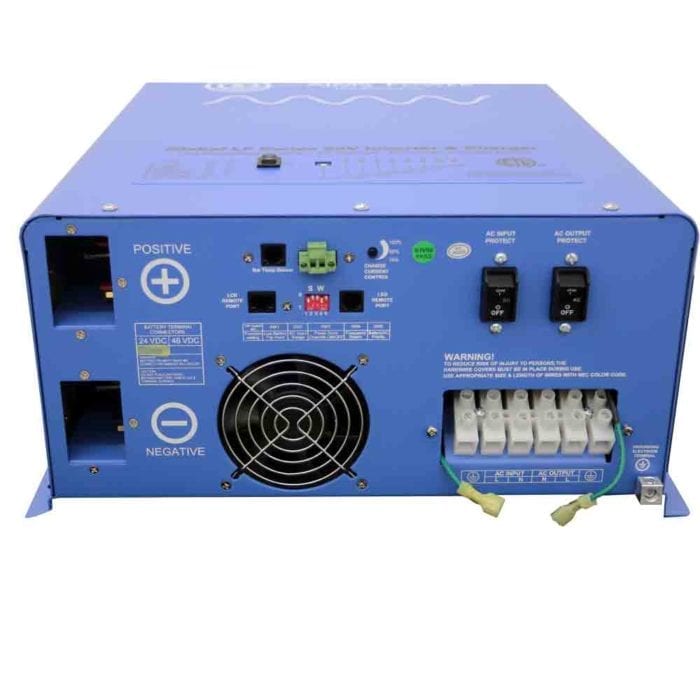

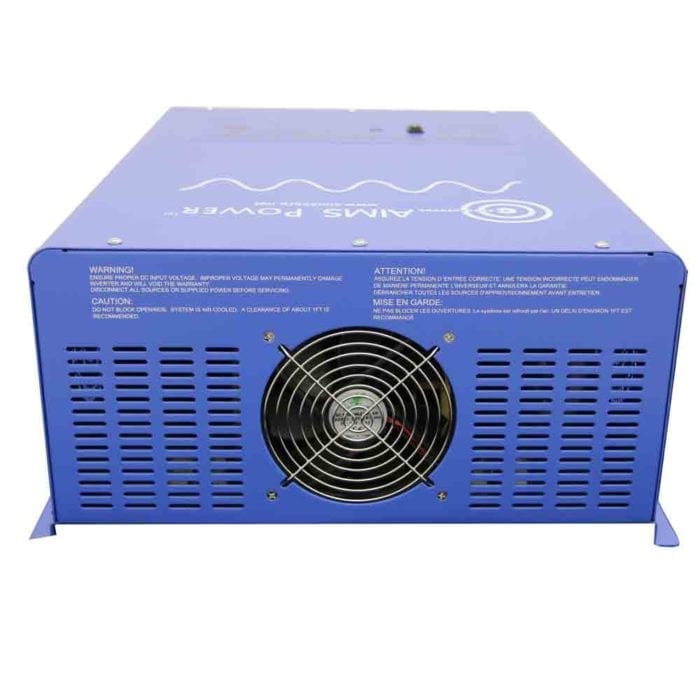

Refurbished 6000 WATT PURE SINE INVERTER CHARGER 24Vdc TO 120Vac OUTPUT LISTED TO UL 458/CSA

$2,138.00 $1,499.00

6000 Watt, 18000 Watt surge, 24 Vdc, 120 Vac only, Inverter, Charger & Transfer Switch. 50 amps. Input charger 120 Vac. Single phase. Listed to UL 458/CSA.

Add Remote

Add Cables

Add Fuse Kit

Add Battery Temperature Sensor

Pay Over Time


SKU: USEDPICOGLF6024120UL Categories: , ,

Description

6000 WATT PURE SINE INVERTER CHARGER 24 VDC TO 120 VAC LISTED TO UL 458/CSA

REFURBISHED INCLUDES 2 YEAR WARRANTY

Output Specifications:

  • Continuous output power: 6000 Watt
  • Surge rating: 18000 Watt (20 seconds)
  • Output waveform: pure sine/same as input (bypass mode)
  • Output voltage: 100-110-120VAC
  • Output breaker: 80 Amps
  • Nominal efficiency: >88% (peak)
  • Line mode efficiency: >95%
  • Output frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
  • Typical transfer time: 10ms (Max)
  • THD: < 10% DC
  • Ambient operating temperature: 14°F to 122°F (-10°C to 50°C)

Input Specifications:

  • Nominal input voltage: 24.0 VDC
  • Minimum start voltage: 20.0 VDC
  • Low battery alarm: 21.0Vdc-22.0 VDC
  • Low battery trip: 20.0Vdc-21.0 VDC
  • High voltage alarm: 32.0 VDC
  • Low battery voltage restart: 26.6 VDC
  • Idle consumption: 52.5 watts
  • Idle consumption with power saver mode ON: <25 watts

Charger Specifications:

  • Output voltage: depends on battery type
  • Charger rate: 60A
  • Over charge protection shutdown 31.4V
  • Selectable charge setting based on battery type
  • Adjustable charge current: off-15%-100%
  • Four stage smart charger

Transfer Switch Specifications:

  • 80 amp automatic transfer switch
  • 10 ms (max)

Dimensions:

  • Unit weight: 108 lb
  • Unit size: L x W x H: 19 x 16.5 x 8 inches inches
  • Shipping weight: 113 lb

2 Year Warranty

6000 WATT PURE SINE INVERTER CHARGER 24 VDC TO 120 VAC Listed to UL 458/CSA

Download the manual

AIMS Power 6000 Watt Inverter Charger – PICOGLF6024120UL

Please Contact Us Today!

Additional information

Weight108 lbs
