Description
Refurbished AIMS 40 AMP Solar Charge Controller 12/24/36/48 VDC MPPT – Includes 2 year warranty

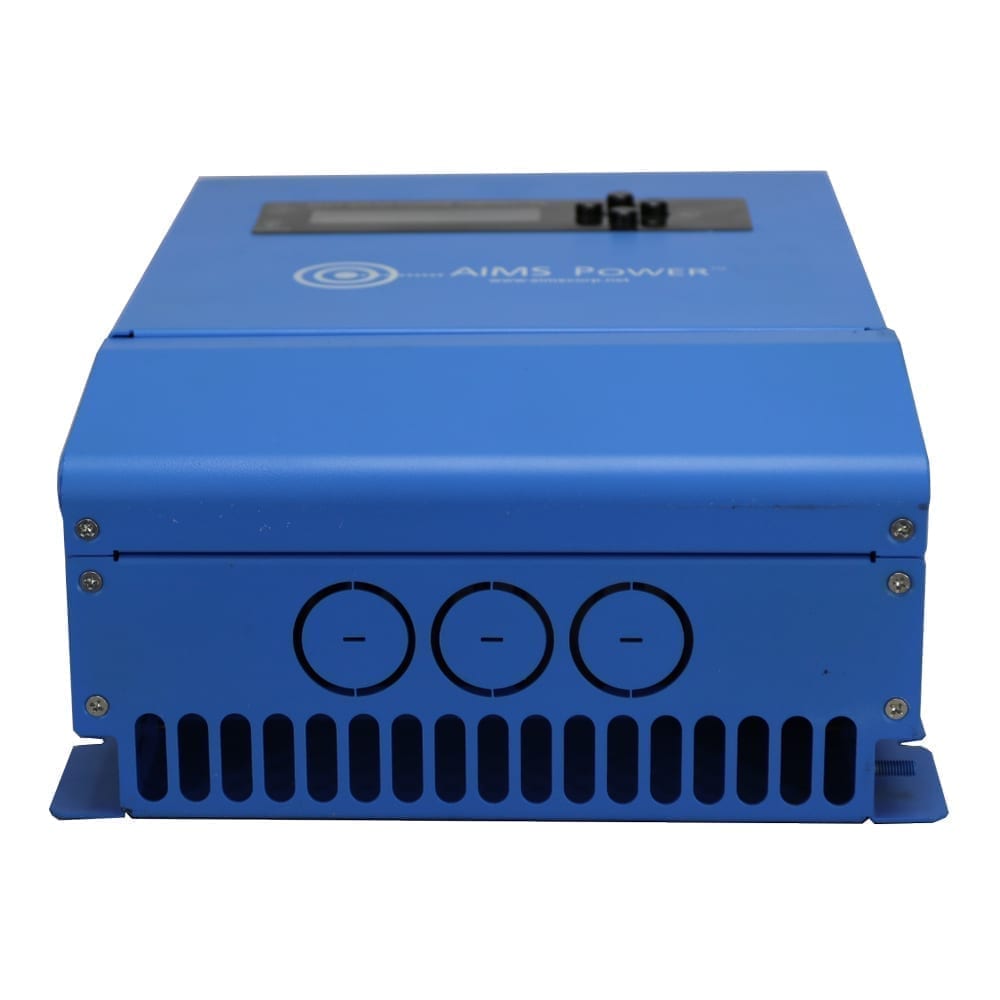

AIMS 40 AMP Solar Charge Controller
ELECTRICAL
PV Operating Voltage:
Rated PV input:
- 12V – 500 Watts
- 24V – 1000 watts
- 36V – 1500 watts
- 48V – 2000 watts
- Maximum battery current: 40 amps
- DC load port: 40 amps
- Max PV open circuit voltage: 155Vdc
- Self power consumption: <4 watts
- Efficiency: 97.5-99%
- Protections: overload, short circuit, high voltage, high temperature, low voltage and auto correct
- Monitoring: RS485 port for computer monitoring
- Optimal cooling case design – built for extreme conditions
CHARGING
- Battery types: gel, sealed, AGM, flooded, lithium, user defined (adjustable voltage)
- 4 Stage charging: bulk, absorption, float and equalize
- Bulk charge voltage: sealed 14.4V, AGM/gel 14.2V, flooded 14.6V, user defined 10-15V
- Float charge voltage: sealed/AGM/gel 13.7V, flooded 13.6V, user defined 10-15V
- Equalize charge voltage: sealed 14.6V, AGM/gel 14.8V, flooded 14.8V, user defined 10-15V
- Low voltage reconnection: 12.5V
- Low voltage disconnect voltage: 10.5V (10.5-12.5V adjustable)
MECHANICAL
- Enclosure: IP43 protection, metal
- Cooling: heatsink
- Humidity: 100% non-condensing
- Temperature compensation: -5mV⁰C / 2V with BTS
- Temperature range: -25⁰C to 60⁰C or -13⁰F to 140⁰F
- Conformal coated for marine environments
- Wire knockouts: 1.25”
- Unit weight: 8 lbs
- Boxed weight: 9 lbs
- Dimensions: 10.6”L x 7.25”W x 3.5”H
- Warranty: 2 years
- Certifications: ETL to UL1741, CE, RoHS, CETL
