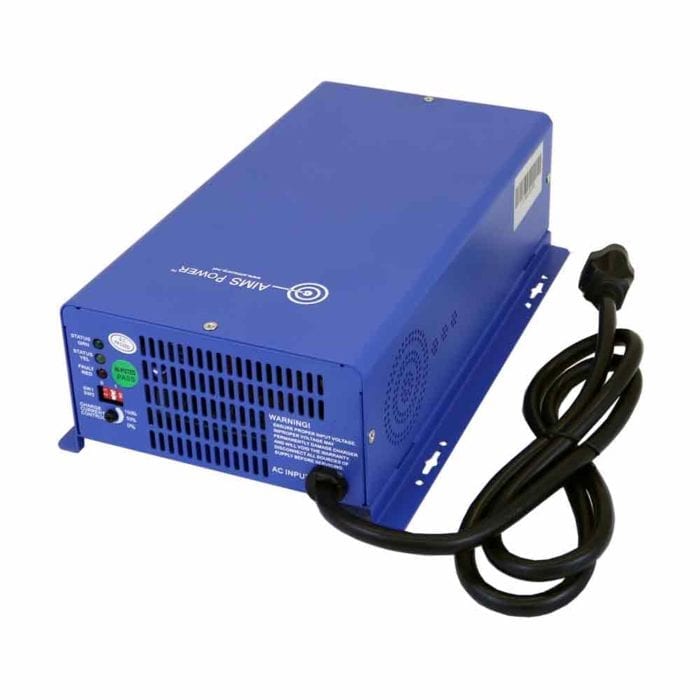

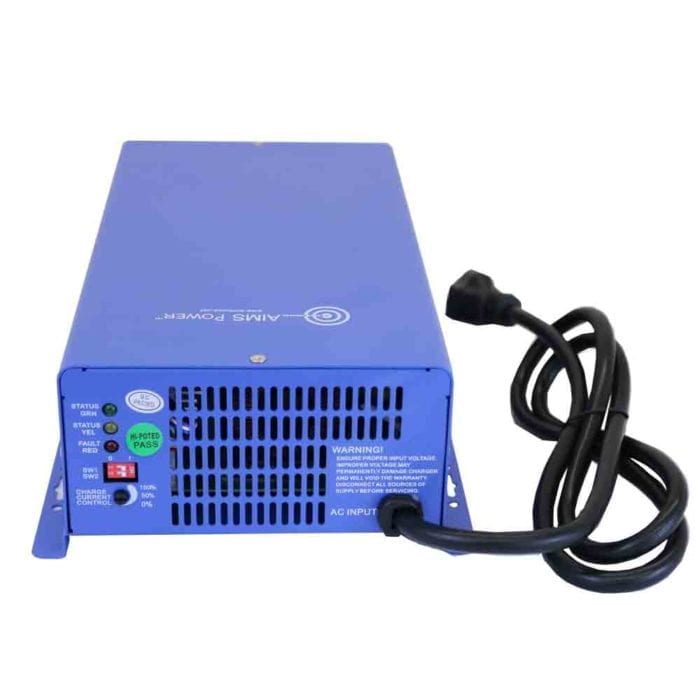

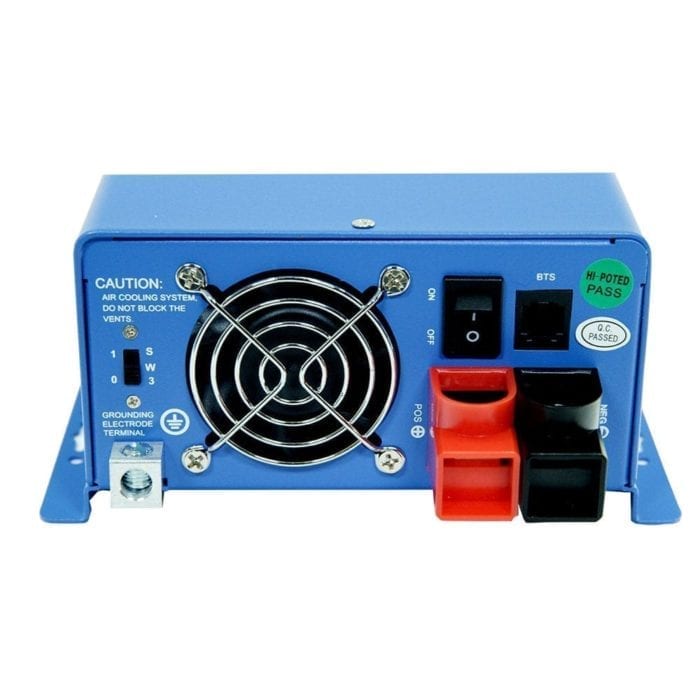

Battery Charger – 25 Amps for 36V and 18 Amps for 48V
| Input Voltage | 96-145VAC full performance | 70-96VAC automatically de-rate to 50% of full load current |
| Frequency | 40Hz to 70Hz |
| Nominal Input Current at Rated Output | <9Aac |
| Voltage Measurement Accuracy | ±8Vac |
| Frequency Measurement Accuracy | ±1Hz |
| OUTPUT | |
| Nominal Voltage | 36/48Vdc manual adjustable | Input voltage 96-145V |
| Output Current | 25A for 36V | 18.75A for 48V |
| Low input voltage 70-96V derated at 50% of output. 12.5A for 36V & 9.375A for 48V | |
| Rated Output Current | Manual adjustable |
| Current Accuracy | ± 6% of full rated output current @25°C, for target currents across the range from 10% rated output (for absorption exit criteria accuracy) to the current limit setpoint. |
| Load Regulation | 1.50% |
| Current Limit | Input voltage 96 – 145V
Output current 25A for 36V Output current 18.75 A for 48V Input voltage 70-96V, Output current 12.5 A for 36V Output current 9.375 A for 48V |
| Selectable Battery Type | Open Lead-Acid, Gel, AGM, LiFePO4, adjustable |
| Parallel Outputs | Maximum of two AC converter units connected in parallel |
| Efficiency | 80% |
| PROTECTIONS | |
| Input Over Voltage | Unit is safe for input voltage up to 150VacRMS (and up to 215Vpeak). Above this level the damage may occur. |
| Reverse Battery Polarity Protection | Non-destructive reverse battery polarity protection with fuses. Permanent damage will not occur and perform after fuse replacement. |
| Input Under-voltage | No permanent damage for input voltages from 0-300Vac. Shutdown or input current limit or other means may be applied when input voltage is out of normal operating range. |
| Output over voltage | 36Vdc. Unit will shut down if Vcharging > Vcharging (target) + 1.0Vdc for more than 2 seconds; unit will restart when voltage <= Vcharging (target) for more than 2 seconds. |
| 48Vdc. Unit will shut down if Vcharging > Vcharging (target) + 1.5Vdc for more than 2 seconds; unit will restart when voltage <= Vcharging (target) for more than 2 seconds. | |
| For battery OVP the unit will restart in the same stage. | |
| Charger over temperature protection | The internal temperatures of the charger will be measured by NTC. Based on these measurements, unit will shut down if the temperature exceeds 105°C. Unit will restart when environment temperature cools to 95 °C. |
| BTS(Battery Temperature Sensing) | The battery temperature sensor allows the charger to continuously adjust charge voltage / charge current based on actual battery temperature. |
| When the battery temperature is over 40 °C, unit will reduce the charging voltage to Float voltage, also it will reduce the Max charging current by 10% with every two degree of temperature rise. (different for lithium) | |
| When the battery temperature is over 50 °C, unit will shut down. | |
| Operation temperature | Operating Ambient Temperature range: -10°C to 40°C | Nominal ambient temperature: 25°C |
| (On the heat sink of DC-DC part, if the temperature is over 90 ℃, the Charger Current will be de-rate to 50% ; if the temperature is over 105 ℃, the Unit will be shut down.) | |
| 5～95% without condensation | |
| Noise | Unit requirements: below 50dB (A) measured at 1 m distance with fan full working. |
| Storage Conditions Temperature | -20°C to +80°C |
| Cooling | Fan – thermal and load based |
| Warranty | 1 Year |
| Dimension (D x W x H) | 10.25” * 6.75” * 3.25” |
| Unit Weight | 6.5 lb |
| Boxed Weight | 7 lb |
