Description

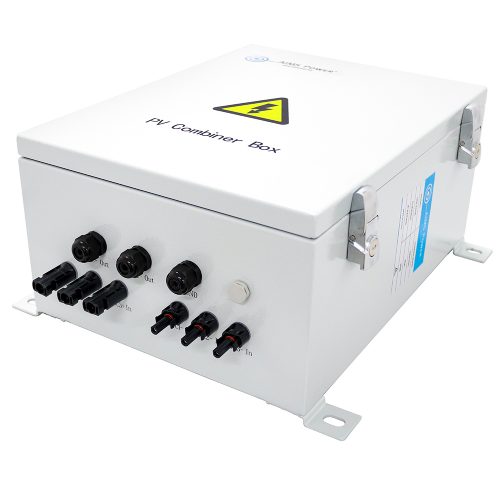

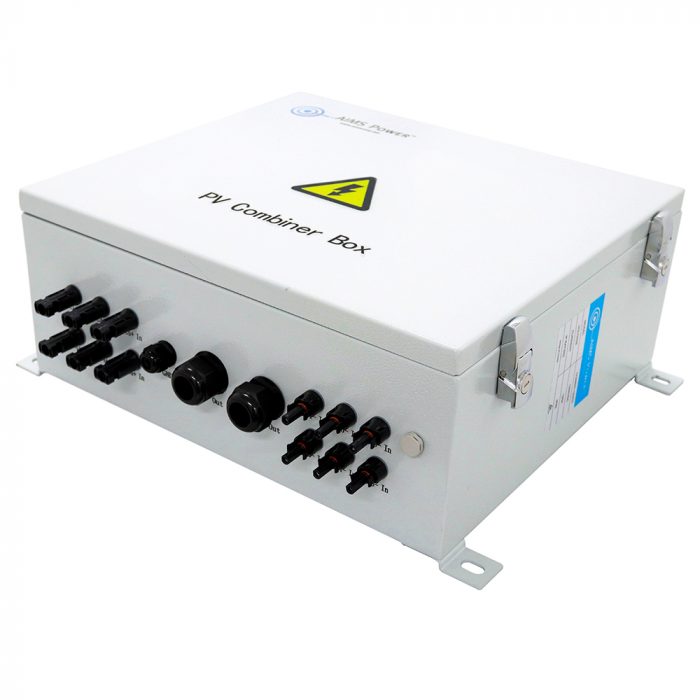

Solar Array Combiner Box – Scratched and includes a 1 year warranty.
- 6 DC inputs
- 200VDC input
- Max input current – 25A
- Max output current – 120A
- Output power – 20KW
- DC fuse – 200Vdc
- Output breaker – 125A
- DC switch – 500Vdc/40DA
- NEMA 3R IP65
- Operating temp: -13°F to 131°F w/o derating
- Altitude: 0 to 6560 ft w/o Derating
- Dimensions: 20 3/8″W (includes brackets, 18 3/8″W without brackets, 17 3/8″
L (includes connectors), 7 5/8″ H - Weight: Unit 35 lb, Boxed 39 lb
Manual: Click here
