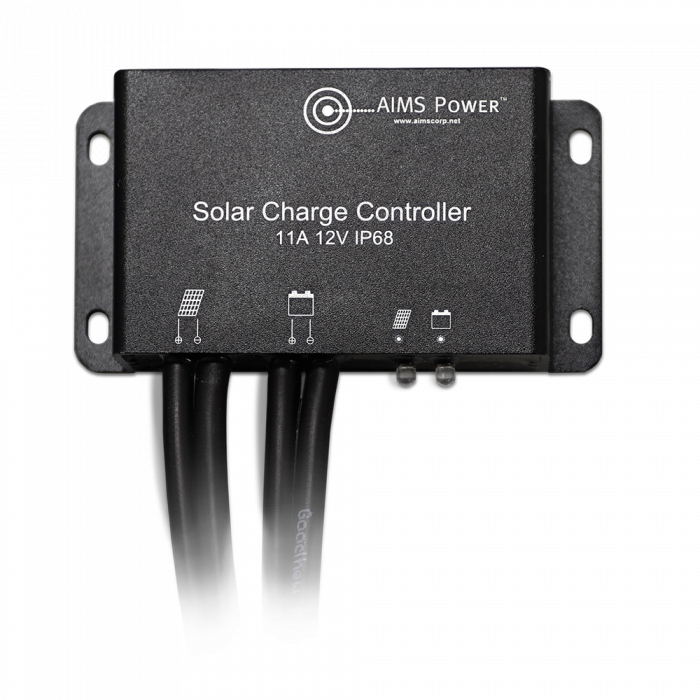

Solar Charge Controller Waterproof 11 Amps with Pre-Wired Cables

$54.99

div#bread_checkout_button { background: #000; padding: 13px; background: #1c8195; border-radius: 24px; text-align: center; }


Overview

Super easy to install, waterproof solar charge controller. The controller includes the solar panel and battery cables for quick set up using the attached MC4 connectors. Compact, but powerful measuring under 4 inches.

Features

  • Easy to install
  • Waterproof – IP68
  • Built in cables for easy extension using the MC4 connectors
  • LED indicators
  • 2 stage charger

Description

  • 12V battery systems
  • Max charge current – 11A
  • Max PV input voltage – <30Voc
  • Max PV Input Power – 190W (depending on sunlight)
  • Boost charge – 14.2V
  • Float charge – 13.8V
  • Boost charge recovery voltage – 13.2V
  • Over discharge recovery voltage – 11.1V
  • PV input cable length – 13 inches
  • Battery output cable length – 5 FT
  • Boost charge duration – 2 hours
  • Operating temp -32F to 140F / -35C to 60C
  • IP68
  • Weight – .5 lb unit, shipped 1 lb
  • Dimensions – 3.25″ x 1.75″ x .625″

Manual : https://www.aimscorp.net/documents/SCC11APRM%200322.pdf

Additional information

Weight 2 lbs
