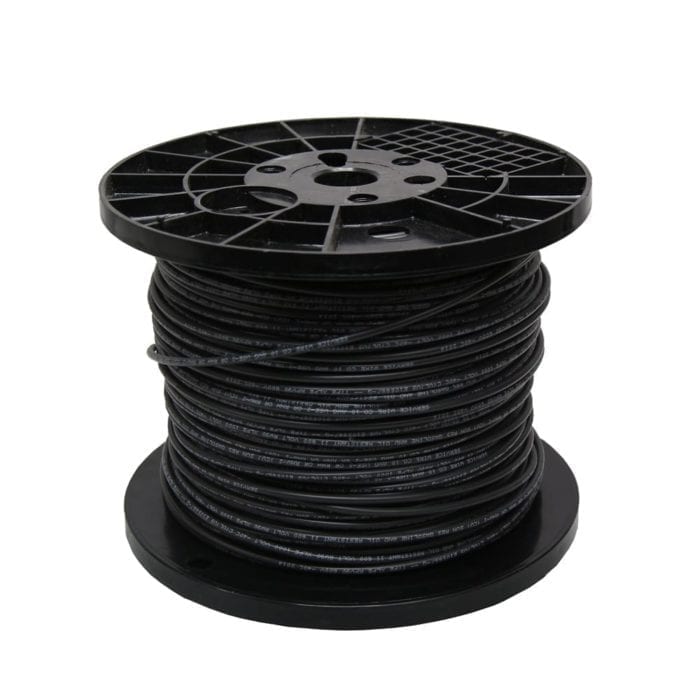

AIMS Power Solar Panel Wire – 500 Ft Roll 10 AWG Bulk for Solar Wiring

Original price was: $380.00.Current price is: $250.00.

SKU: PVD653T-B-10AWG Categories: , , ,

Features

Features:

Optimized Solar Placement: Allows panels to be positioned for maximum sun exposure without excess cable clutter or safety hazards

High Current Carrying Capacity: 10 AWG construction supports 50 amps or more, making it ideal for most solar charge controller setups

Flexible System Configuration: Easily connects panels in series or parallel to meet a wide range of solar power system designs

All Weather Performance: Operates in both wet and dry conditions and withstands temperatures up to >194°F for dependable outdoor use

High Voltage Handling: Rated to handle up to 600 volts for reliable energy transfer across solar installations

Enhanced Safety Protection: Flame resistant and short circuit resistant design helps protect your system and wiring

Rugged Reliability: Lightweight yet weatherproof construction ensures long lasting performance in harsh environmental conditions

Description

Specifications:

  • Cable available in red or black. Please select color when placing your order
  • Voltage rating: 600 V
  • Temperature rating:
  • 90 °C dry or wet
  • 194 °F dry or wet
  • Ambient temperature: > 25 years (TÜV)
    • – 40 °C up to + 90 °C
    • – 40 °F up to + 194 °F
  • Max short circuit temperature: 250 °C, +482 °F
  • Bending radius: ≥ 5 × outer diameter
  • Structure:  75/0.30 TC
  • Conductor:  ID    3mm
  • XLPE Thickness:  1.6mm
  • Jacket:  OD   6.2mm
  • Weight: 100ft  5.6 lbs
  • Allow: Current  49.6A
  • Conductor Resistance Ω/km:  3.59
  • UL854, VDE 0295, IEC 60288 and TUV

Additional information

Weight 64 lbs
