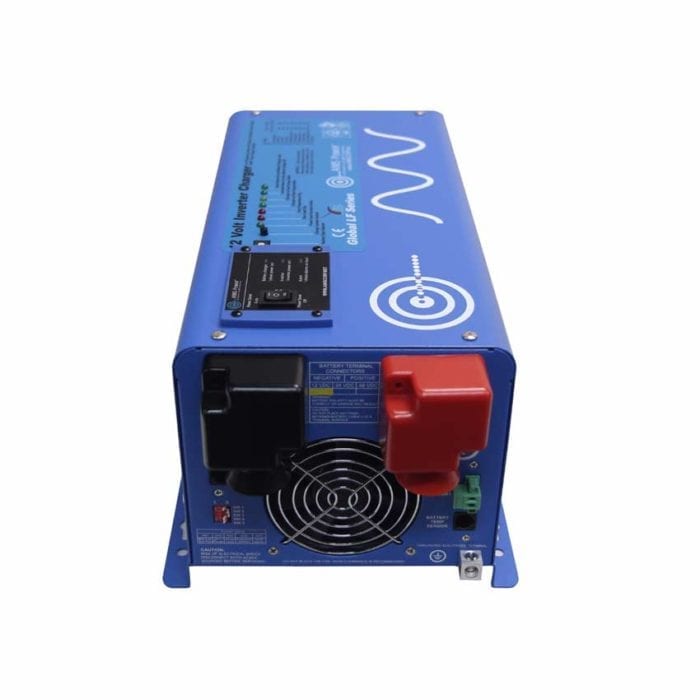

USED 1000 WATT PURE SINE INVERTER CHARGER 12 VDC TO 120 VAC

$549.00 $389.00

Add Cables

Add Fuse Kit

Pay Over Time

Video

Description

Output Specifications: Refurbished AND IN EXCELLENT CONDITION. INCLUDES ONE YEAR WARRANTY.

  • Continuous output power: 1000 Watt
  • Surge rating: 3000 Watt (20 Seconds)
  • Output waveform: pure sine
  • Output voltage: 120 VAC
  • Nominal efficiency: >88% (peak)
  • Line mode efficiency: >95%
  • Output frequency: 60Hz +/- 0.3Hz
  • Typical transfer time: 10ms (max)
  • GFCI: 10 A outlet
  • THD: < 10% DC
  • Bypass breaker – 20 amps

Input Specifications:

  • Nominal input voltage: 12.0 VDC
  • Minimum start voltage: 10.0 VDC
  • Low battery alarm: 10.5Vdc-11.0 VDC
  • Low battery trip: 10.0Vdc-10.5 VDC
  • High voltage alarm: 16.0 VDC
  • Charger breaker – 10 A
  • Low battery voltage restart: 15.5 VDC
  • Idle consumption: 12.5 Watt
  • Power saver mode idle consumption: 7.5 Watt

Charger Specifications:

  • Output voltage: depends on battery type
  • Charger rate: 35A
  • Over charge protection shutdown: 15.7V
  • Selectable charge setting based on battery type
  • Adjustable charge current off-20%-100%
  • Four stage smart charger

Transfer Switch Specifications:

  • 30 A automatic transfer switch
  • 10 ms (max) transfer time

Dimensions

  • Unit weight: 35 lbs.
  • Unit size L x W x H: 14.1 x 8.74 x 7.10 inches
  • Shipping weight: 39 lbs.
  • Shipping size: L x W x H: 20.75 x 12.75 x 12.50 inches



Additional information

Weight 39 lbs
