Description

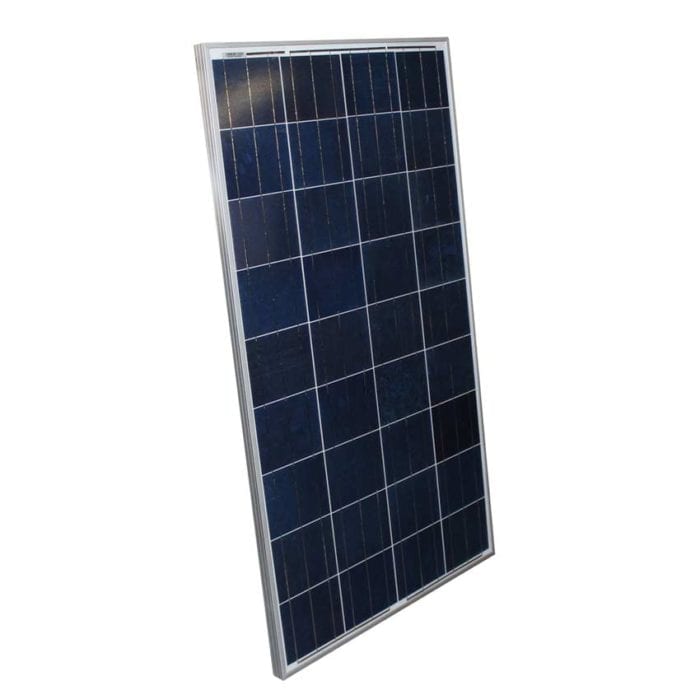

120 WATT SOLAR PANEL ALUMINUM FRAME GROUND / ROOF MOUNT
Specifications: 120 WATT SOLAR PANEL ALUMINUM FRAME – USED THIS PANEL TO TEST OUR CHARGE CONTROLLER. 10 YEAR WARRANTY. GREAT SHAPE.
- Maximum Power (Watt): 120 watts
- Optimum Power Voltage (Vmp): 17.6 volts
- Optimum Operating Current (Imp): 6.5 amps
- Open Circuit Voltage (Voc): 21.97 volts
- Short Circuit Current (Isc): 6.96 amps
- Solar Cell: 156 * 129 Poly
- Number of Cells (pcs): 4*9
- Front Glass Thickness (mm): 3.2 mm
- Temperature Coefficients of Isc (%) °C: +0.04
- Temperature Coefficients of Voc (%) °C: -0.38
- Temperature Coefficients of Pm (%) °C: -0.47
- Temperature Coefficients of Im (%) °C: +0.04
- Temperature Coefficients of Vm (%) °C: -0.38
- Temperature Range: -40°C to +85°C
- Tolerance Wattage (e.g. +/- 3%): +/- 3%
- Surface Maximum Load Capacity: 2400Pa
- Allowable Hail Load: 23m/s, 7.53g
- Bypass Diode Rating (A): 10
- Cell Efficiency (%): 13.69%
- Module Efficiency (%): 14.60%
- Backing (brand Type): TPT
- Warranty: 90% of 10 years, 80% of 30 years
- Standard Test Conditions: AM1.5 1000W/? 25 +/-2°C
- FF (%): 70-76%
- Weight Per Panel (lbs): 21 lbs
- Dimensions (inches): 48 x 26.38 x 1.25
120 WATT SOLAR PANEL ALUMINUM FRAME GROUND / ROOF MOUNT
