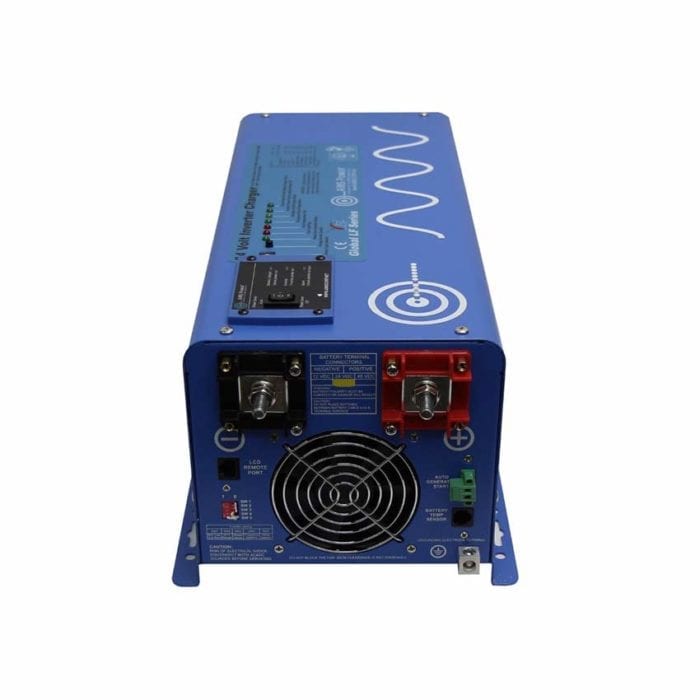

AIMS Power brings 20 years of experience and stellar customer service with this 3000 watt pure sine inverter charger. This unit is a combination of an inverter, battery charger and AC auto-transfer switch into one complete system with a peak DC and AC conversion efficiency of 92%. It features power factor corrected, sophisticated multi-stage charging and pure sine wave output with unprecedentedly high surge capability to meet demanding power needs of inductive loads without damaging the equipment.
The powerful 100 amp battery charger, with power factor corrected, uses 20-30% less energy from AC input than a standard charger and includes a Batter Temperature Sensor port for increased charging precision. The overload capacity is 300% of continuous output for up to 20 seconds to reliably support tools and equipment.
The transformers have been consistently improved over the years to achieve the best balance of conversion efficiency, idle consumption and minimum THD. The idle consumption of the line is ultra-low, roughly 1.5% of its rated power. The AC battery priority switch and auto generator start functionality make it ideal to work in either backup power or renewable energy applications.
In AC priority mode, when utility AC power cuts off, the transfer relay is de-energized and the load is automatically transferred to the inverter output. Once the qualified AC utility is restored, the relay is energized and the load is automatically transferred to AC utility.
When customized to battery priority mode via the DIP switch, the inverter will extract power from external power sources in renewable energy systems and a minimal cycle of the battery will be required. With the availability of the auto generator start, an electrical generator can be integrated into the system as a backup and started when the battery voltage gets low.
