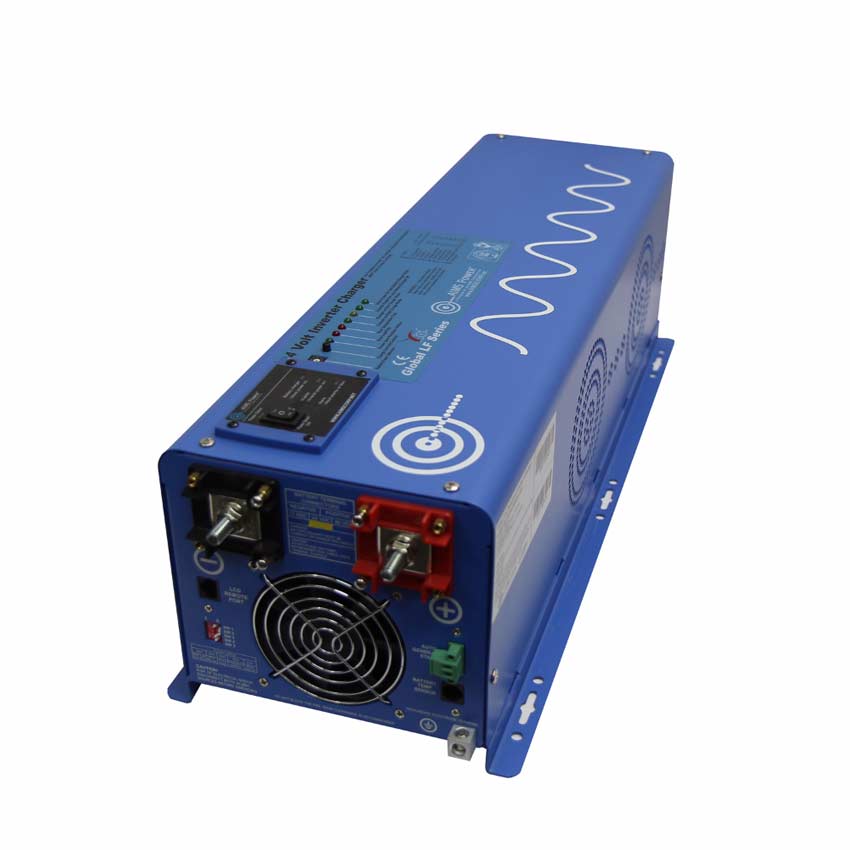

Factory Refurbished 4000 WATT PURE SINE INVERTER CHARGER 24 VDC TO 120 VAC Includes Warranty

Original price was: $1,631.00.Current price is: $1,141.00.

2 in stock

2 in stock

Add Remote

Add Cables

Add Fuse Kit

Add Battery Temperature Sensor

Overview

Heavy duty 4000W inverter charger delivers reliable off-grid power with 3x surge capacity for demanding tools and electronics.

The AIMS Power 4000 Watt 24 Volt Pure Sine Low Frequency Inverter Charger is designed for rugged off-grid, mobile, and backup power systems where reliability matters. With a heavy duty low frequency design and 3-in-1 integrated functionality, this unit combines a pure sine inverter, multi-stage battery charger, and automatic transfer switch into one powerful system.

Whether powering sensitive electronics in a motorhome, running equipment in construction vehicles, or supporting renewable solar installations, this inverter charger provides stable AC power and efficient battery charging. The 24V DC platform helps improve system efficiency while the 300% surge capability handles demanding startup loads like air conditioners, compressors, and power tools.

  • Users: Reliable off-grid and mobile power for RVs, boats, solar systems, and emergency backup applications.
  • Installers: Integrated inverter, 50A charger, and transfer switch simplify system design and wiring while supporting multiple battery types.



Why AIMS Power?

AIMS Power inverter chargers are engineered for demanding real-world applications including industrial equipment, mobile fleets, and renewable energy installations. Built with low frequency transformer technology and conformal-coated internal boards for protection, these systems are designed for long-term durability in harsh environments.

Customers have trusted AIMS Power for almost three decades, supported by industry-leading warranties and lifetime technical support that reinforce long-term reliability and performance.

Video

Description

Output Specifications: REFURBISHED AND IN GREAT CONDITION. INCLUDES 3 YEAR WARRANTY.

  • Continuous output power: 4000 Watt
  • Surge rating: 12000 Watt (20 seconds)
  • Output waveform: pure sine/same as input (bypass mode)
  • Output voltage: 100-110-120VAC
  • Nominal efficiency: >88% (peak)
  • Line mode efficiency: >95%
  • Output frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
  • Typical transfer time: 10ms (Max)
  • THD: < 10% DC

Input Specifications:

  • Nominal input voltage: 24.0 VDC
  • Minimum start voltage: 20.0 VDC
  • Low battery alarm: 21.0Vdc-22.0 VDC
  • Low battery trip: 20.0Vdc-21.0 VDC
  • High voltage alarm: 32.0 VDC
  • Low battery voltage restart: 31.0 VDC
  • Idle consumption: 52.5 watts
  • Idle consumption with power saver mode ON: 20.9 watts

Charger Specifications:

  • Output voltage: depends on battery type
  • Charger rate: 50A
  • Over charge protection shutdown 31.4V
  • Selectable charge setting based on battery type
  • Adjustable charge current off-20%-100%
  • Four stage smart charger

Transfer Switch Specifications:

  • 30 amp automatic transfer switch
  • 10 ms (max)

Dimensions:

  • Unit weight: 77 lbs.
  • Unit size: L x W x H: 28.25 x 8.88 x 7.50 inches
  • Shipping weight: 82 lbs.
  • Shipping size: L x W x H: 30.5 x 14.25 x 13.75 inches

Download the manual

AIMS Power 4000 Watt Inverter Charger – PICOGLF40W24V120V

Additional information

Weight 71 lbs
