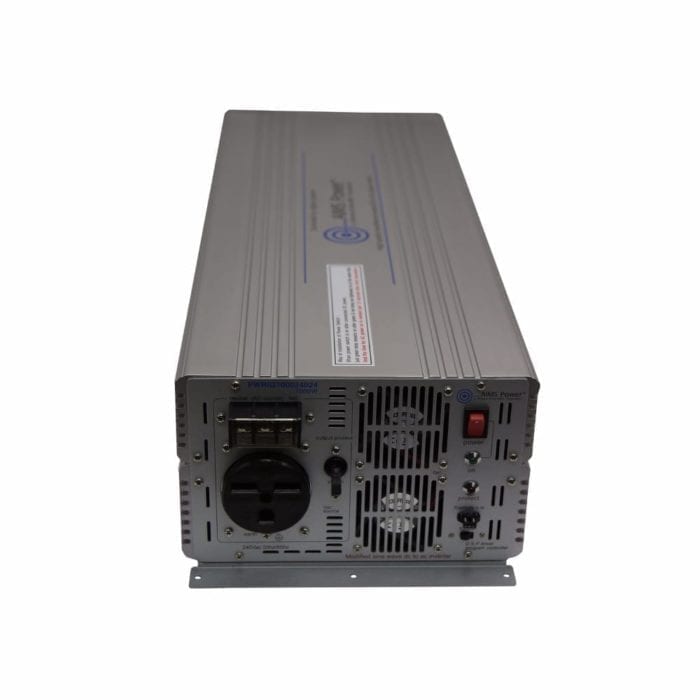

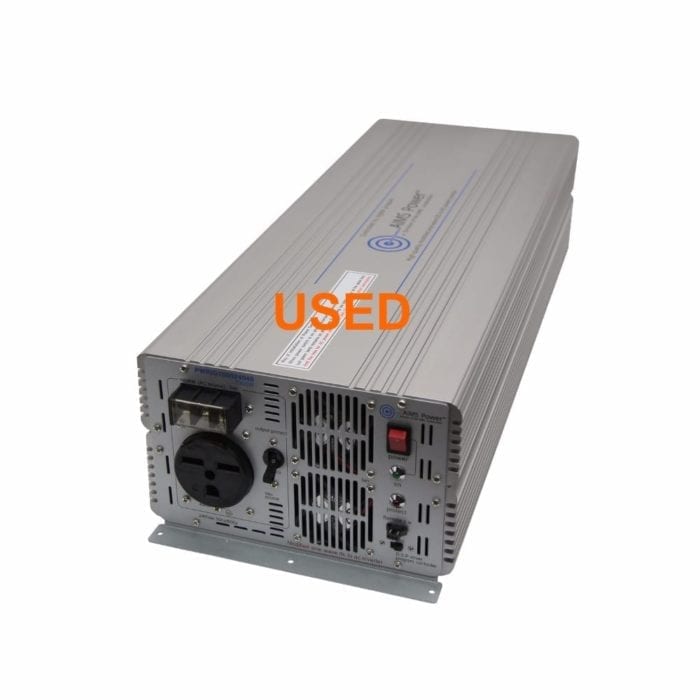

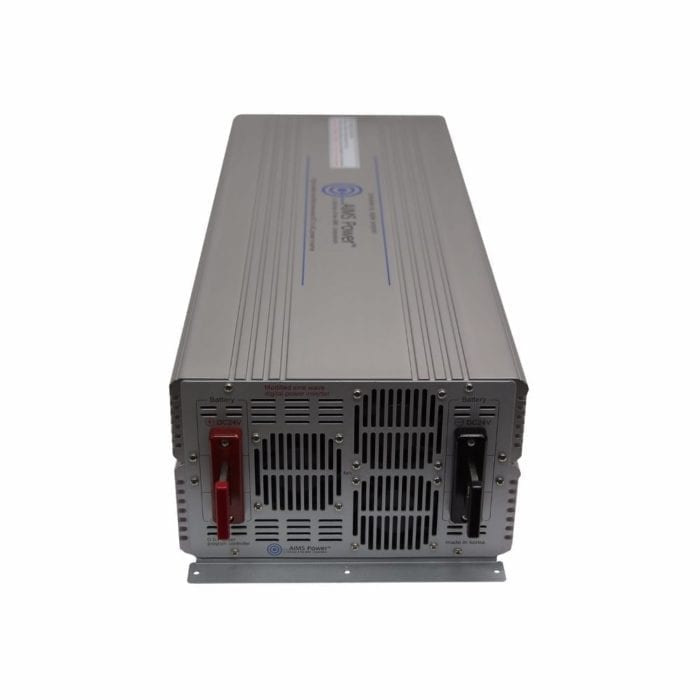

USED 7000W Modified Sine Power Inverter 48VDC to 240VAC Industrial Grade for Heavy Loads, Job Sites, and Tools

Original price was: $1,299.00.Current price is: $699.00.

2 in stock

2 in stock

Overview

Power heavy duty 240V equipment anywhere with a rugged 7000W inverter built for demanding off-grid, and industrial power systems.

The AIMS Power 7000 Watt Industrial Grade Power Inverter converts 24 VDC battery power into reliable 240 VAC electricity for demanding applications. Designed for rugged environments, this inverter delivers stable modified sine wave output capable of running large pumps, compressors, power tools, appliances, and jobsite equipment. Its industrial grade aluminum construction, digitally outputted phase corrected waveform, and PWM programming ensure dependable power even when battery voltage fluctuates.

Engineered for durability in harsh environments, the inverter operates in high vibration installations and wide temperature ranges while maintaining stable output. This heavy duty system provides 7000 watts of continuous power and up to 14000 watts of surge capacity for up to 9 seconds ideal for starting equipment that requires higher startup current.

For Do It Yourselfers building off-grid systems and installers wiring mobile or industrial power setups, this inverter provides dependable 240V power where utility electricity is unavailable.

  • Users: Run large appliances, pumps, compressors, and jobsite tools from a 24V battery bank with reliable 240V output power.
  • Installers: Direct connect terminal block and resettable circuit breakers simplify full-load installations for off-grid and mobile systems.

Single phase only. This inverter does NOT output two legs of 120V.



Why AIMS Power?

AIMS Power designs industrial grade power electronics engineered for demanding environments. This inverter uses digitally controlled output with phase correction and PWM programming to maintain stable voltage and frequency during battery fluctuations and sudden load changes. The rugged aluminum enclosure, internal protections, and thermally controlled cooling system provide long term reliability for off-grid, mobile, and industrial applications.

Features

Features:

  • High Output 240V Power: Delivers 7000 watts of continuous power and 14000 watts of surge capability to run heavy equipment, appliances, and large tools.
  • Extended Surge Performance: Electronically controlled surge duration supports loads between 7000W and 14000W for up to 9 seconds, ideal for startup heavy equipment like pumps and compressors.
  • Stable Phase Corrected Output: Digitally generated modified sine wave output with phase correction helps maintain clean, stable AC power without distortion or electrical noise.
  • Advanced PWM Power Regulation: Pulse Width Modulation programming corrects voltage and frequency fluctuations caused by changing battery conditions or sudden load increases.
  • Rugged Industrial Construction: Heavy duty aluminum housing enhances cooling while protecting internal components in high vibration and demanding environments.
  • Built-in System Monitoring: LED status indicators, percent load bar display, and audible alarm provide quick system diagnostics and operational awareness.
  • Comprehensive Protection System: Includes over temperature, overload, short circuit, and high voltage protection along with externally resettable circuit breakers for safe operation.

Description

Specifications: USED. Refurbished like new. Includes 1 year warranty.

  • Continuous output power: 7000 Watt
  • Surge power capability (peak power): 14,000 Watt. The surge duration is electronically controlled and permits up to 9 seconds while the output is between 7000 and 14,000 watts. During this time the buzzer will sound until the inverter electronically shuts down.
  • DC input / operating voltage: 42-60 Volts
  • Output voltage: 240 Volts ac +/- 10%
  • Output wave form: modified sine wave with phase correction
  • Output frequency: 60 Hz +/- 1 Hz or 50 Hz +/- 1 Hz
  • Battery low voltage alarm: 42 +/- 0.5 Volts
  • Battery low voltage shutdown: 41.5 +/- 0.5 Volts
  • High input voltage protection 60 +/-0.5 volts
  • No load current: 0.18 A (fan off) 0.66 (fan on)
  • Start up AC amps: 58
  • Continuous AC amps: 29
  • Full load efficiency: 90%
  • Auto cooling fan start at 107 degrees F
  • Full load maximum operating temperature: 154 degree F
  • AC output socket type: single type 240 volt plug
  • Internal fuse protection

Dimensions:

  • Unit weight: 26.6 lbs.
  • Unit size L x W x H: 25.98 x 9.05 x 5.11 inches
  • Shipping weight: 32 lbs.
  • Shipping size L x W x H: 27 3/4 x 13 3/4 x 9 1/2 inches

Product Manual AIMS Power 7000 Watt 48 volt Power Inverter – PWRIG700024048

Note: This is not a Split Phase Inverter. This is strictly a single phase 240 Volt Output. Cannot be ran in phase to produce two legs of 120 Volt.

Additional information

Weight 27 lbs
